B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 131 -

- Changing the compensation value

In general, the compensation value is to be changed when the tool is

changed in offset cancel mode. If the compensation value is changed

in offset mode, however, the vector at the end point of the block is

calculated using the compensation value specified in that same block.

The same applies if the imaginary tool nose direction and the tool

offset value are changed.

Calculated from the compensation

value specified in block N6.

Calculated from the compensation

value specified in block N7.

Programmed path

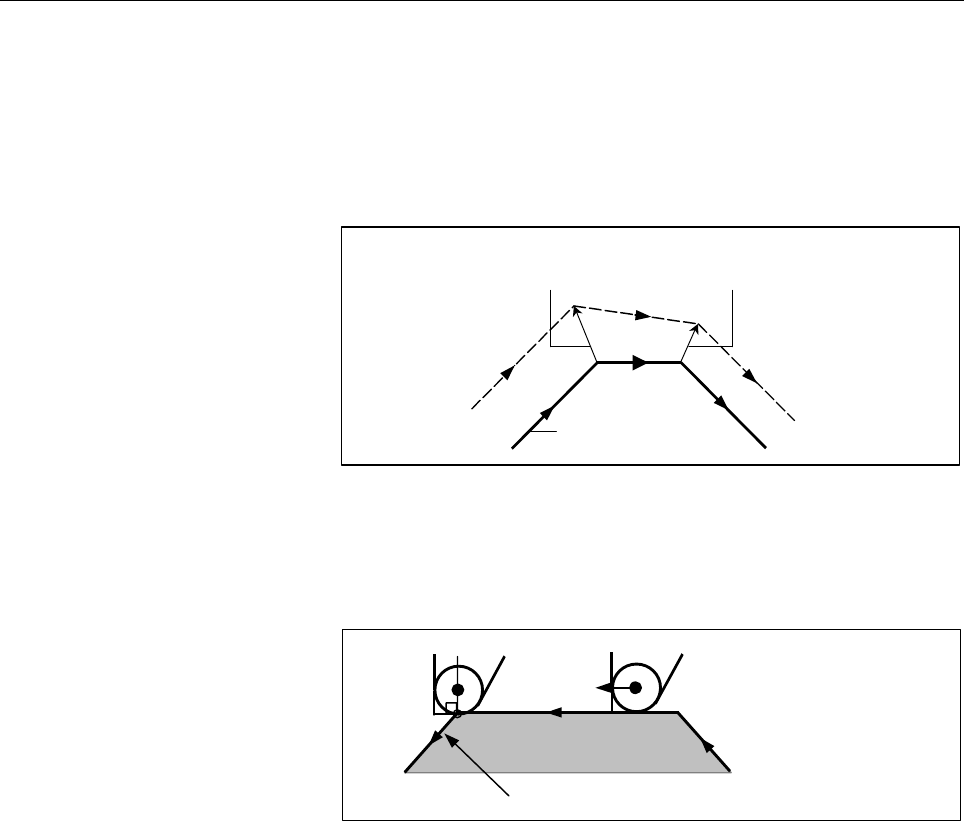

Fig. 6.5.4 (g) Changing the compensation value

- Specification of G41/G42 in G41/G42 mode

When a G41 or G42 code is specified again in G41/G42 mode, the

tool nose center is positioned vertical to the programmed path of the

preceding block at the end point of the preceding block.

G42

(G42)

(G18) G42 G91 Z-500.0 X-500.0 ;

Fig. 6.5.4 (h) Specification of G41/G42 in G41/G42 mode

In the block that first changes from G40 to G41/G42, the above

positioning of the tool nose center is not performed.
