5.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-2/02

- 40 -

Example

Assume that the U, V and W axes be parallel to the X, Y, and Z axes

respectively. This condition is specified by parameter No. 1022.

G17 G81 Z _ _: The Z axis is used for drilling.

G17 G81 W _ _: The W axis is used for drilling.

G18 G81 Y _ _: The Y axis is used for drilling.

G18 G81 V _ _: The V axis is used for drilling.

G19 G81 X _ _: The X axis is used for drilling.

G19 G81 U _ _: The U axis is used for drilling.

G17 to G19 may be specified in a block in which any of G73 to G89

is not specified.

CAUTION

Switch the drilling axis after canceling a canned

cycle for drilling.

NOTE

A parameter FXY (No. 5101 #0) can be set to the Z

axis always used as the drilling axis. When

FXY=0, the Z axis is always the drilling axis.

- Travel distance along the drilling axis G90/G91

The travel distance along the drilling axis varies for G90 and G91 as

follows:

G90 (Absolute programming) G91 (Incremental programming)

Z = 0

Point R

Point Z

Point R

Point Z

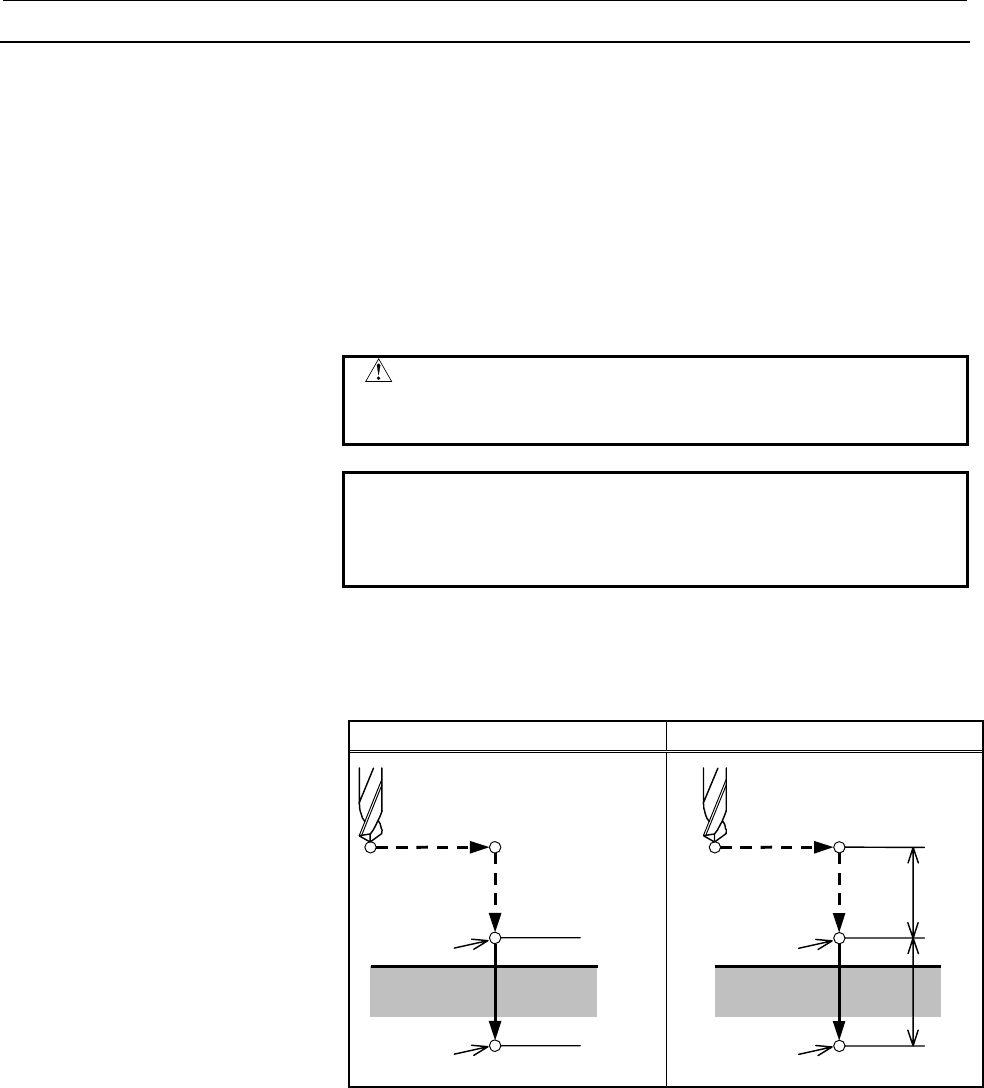

Fig. 5.1 (b) Absolute programming and incremental programming

- Drilling mode

G73, G74, G76, and G81 to G89 are modal G codes and remain in

effect until canceled. When in effect, the current state is the drilling

mode.

Once drilling data is specified in the drilling mode, the data is retained

until modified or canceled.

Specify all necessary drilling data at the beginning of canned cycles;

when canned cycles are being performed, specify data modifications

only.
