1.GENERAL PROGRAMMING B-63944EN-2/02

- 12 -

1.1 TOOL FIGURE AND TOOL MOTION BY PROGRAM

Explanation

- Machining using the end of cutter - Tool length compensation function

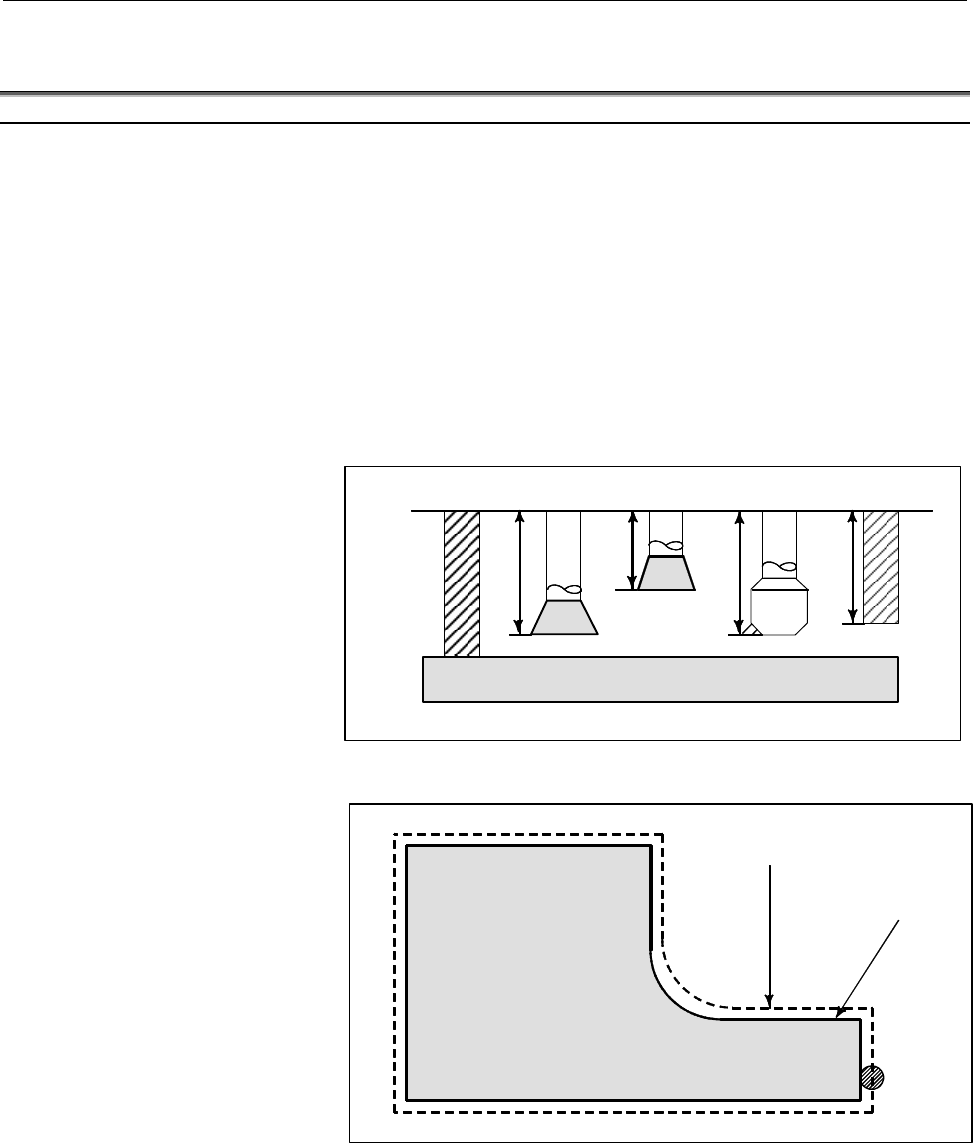

Usually, several tools are used for machining one workpiece. The

tools have different tool length. It is very troublesome to change the

program in accordance with the tools.

Therefore, the length of each tool used should be measured in advance.

By setting the difference between the length of the standard tool and

the length of each tool in the CNC (See Chapter “Setting and

Displaying Data” in User’s Manual (Common to T/M series)),

machining can be performed without altering the program even when

the tool is changed. This function is called tool length compensation

(See Section “Tool Length Compensation” in User’s Manual

(Common to T/M series)).

Standard

tool

H1 H2

H3 H4

Work

iece

- Machining using the side of cutter - Cutter compensation function

Workpiece

Cutter

ath usin

cutter com

ensation

Machined part figure

Tool

Because a cutter has a radius, the center of the cutter path goes around

the workpiece with the cutter radius deviated.

If radius of cutters are stored in the CNC (See Chapter “Setting and

Displaying Data” in User’s Manual (Common to T/M series)), the tool

can be moved by cutter radius apart from the machining part figure.

This function is called cutter compensation (See Section II-6 “Tool

Compensation Function”).
