6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 124 -

6.5.2 Direction of Imaginary Tool Nose

The direction of the imaginary tool nose viewed from the tool nose

center is determined by the direction of the tool during cutting, so it

must be set in advance as well as offset values.

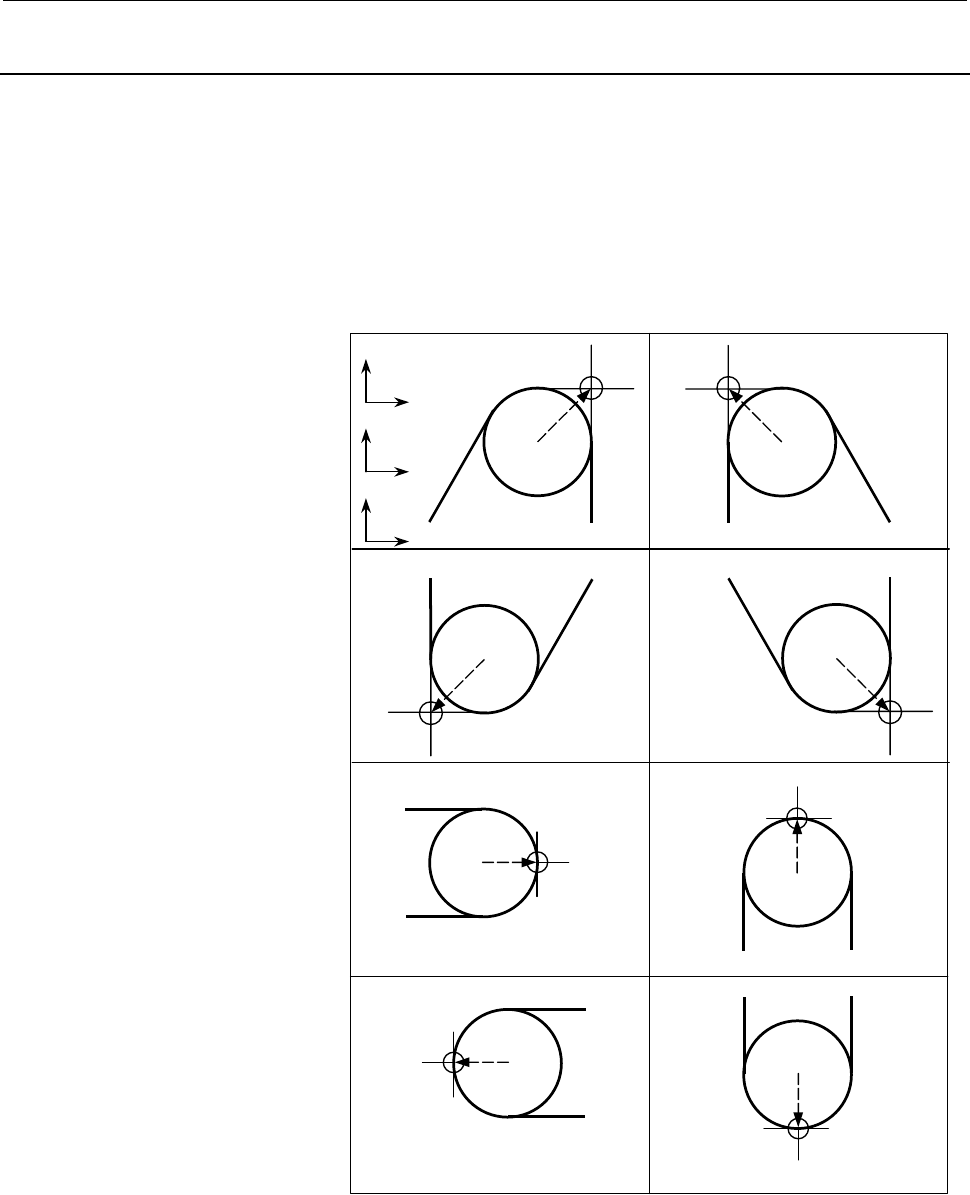

The direction of the imaginary tool nose can be selected from the eight

specifications shown in the Fig. 6.5.2 (a) below together with their

corresponding codes. This Fig 6.5.2 (a) illustrates the relation

between the tool and the start point. The following apply when the

tool geometry offset and tool wear offset option are selected.

Imaginary tool nose number 1

Imaginary tool nose number 2

Imaginary tool nose

number 3

Imaginary tool nose

number 4

Imaginary tool nose number 5

Imaginary tool nose number 6

Imaginary tool nose number 7

Imaginary tool nose number 8

G18

G17

G19

Fig. 6.5.2 (a) Direction of imaginary tool nose
