B-63944EN-2/02 PROGRAMMING 8.AXIS CONTROL FUNCTIONS

- 237 -

- Chopping after the upper dead point or lower dead point has been changed

When the upper dead point or lower dead point is changed while

chopping is being performed, the tool moves to the position specified

by the old data. Then, chopping is continued using the new data.

When movement according to the new data starts, the servo delay

compensation function stops the servo delay compensation for the old

data, and starts the servo delay compensation for the new data.

The following describes the operations performed after the data has

been changed.

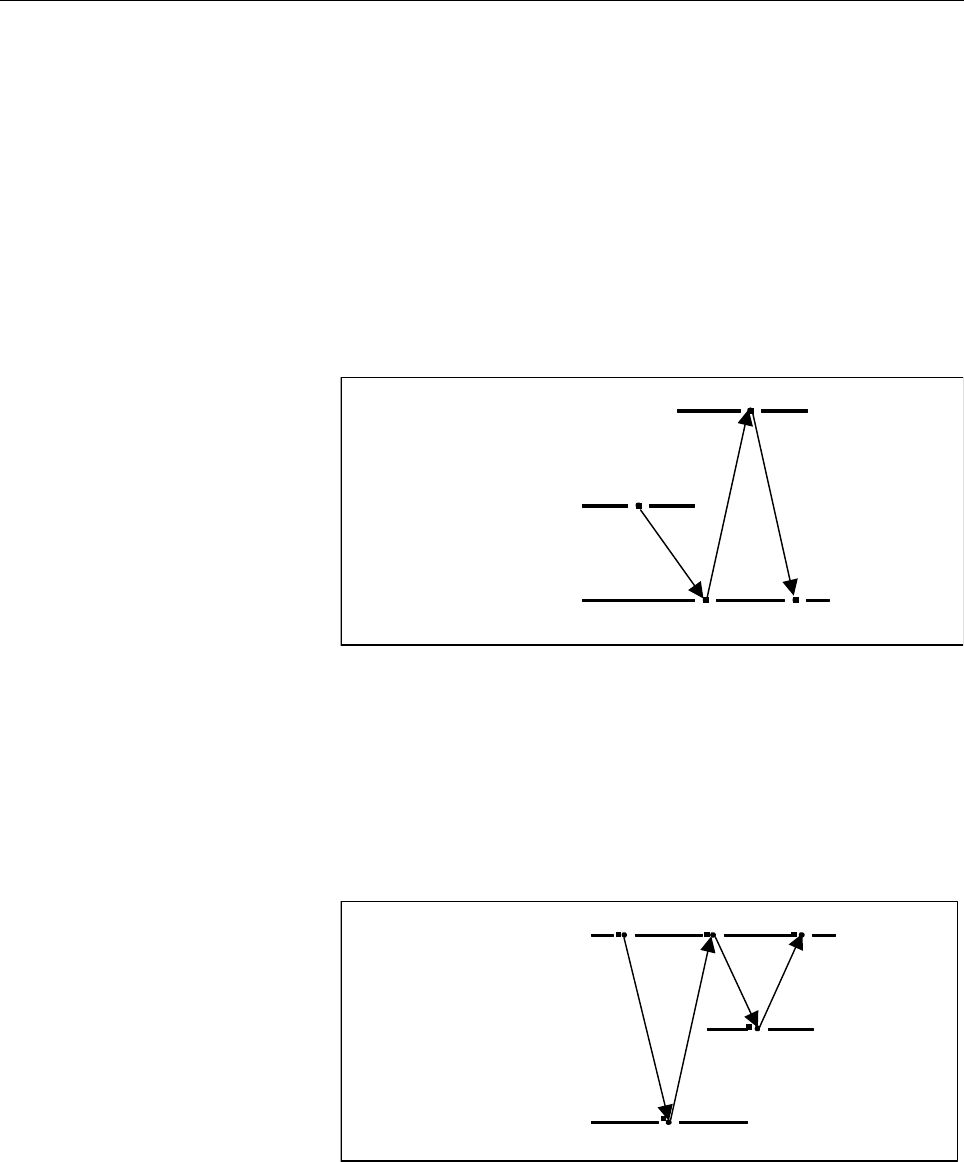

(1) When the upper dead point is changed during movement from

the upper dead point to the lower dead point

New upper dead point

Previous upper dead point

Previous lower dead point

The tool first moves to the lower dead point, then to the new

upper dead point.

Once movement to the lower dead point has been completed, the

previous servo delay compensation is set to 0, and servo delay

compensation is performed based on the new data.

(2) When the lower dead point is changed during movement from

the upper dead point to the lower dead point

Previous u

er dead

oint

New lower dead

oint

Previous lower dead

oint

The tool first moves to the previous lower dead point, then to the

upper dead point, and finally to the new lower dead point.

Once movement to the upper dead point has been completed, the

previous servo delay compensation is set to 0, and servo delay

compensation is performed based on the new data.
