B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 227 -

Center of the arc

Programmed path

Cutter center path

Programmed path

Cutter center path

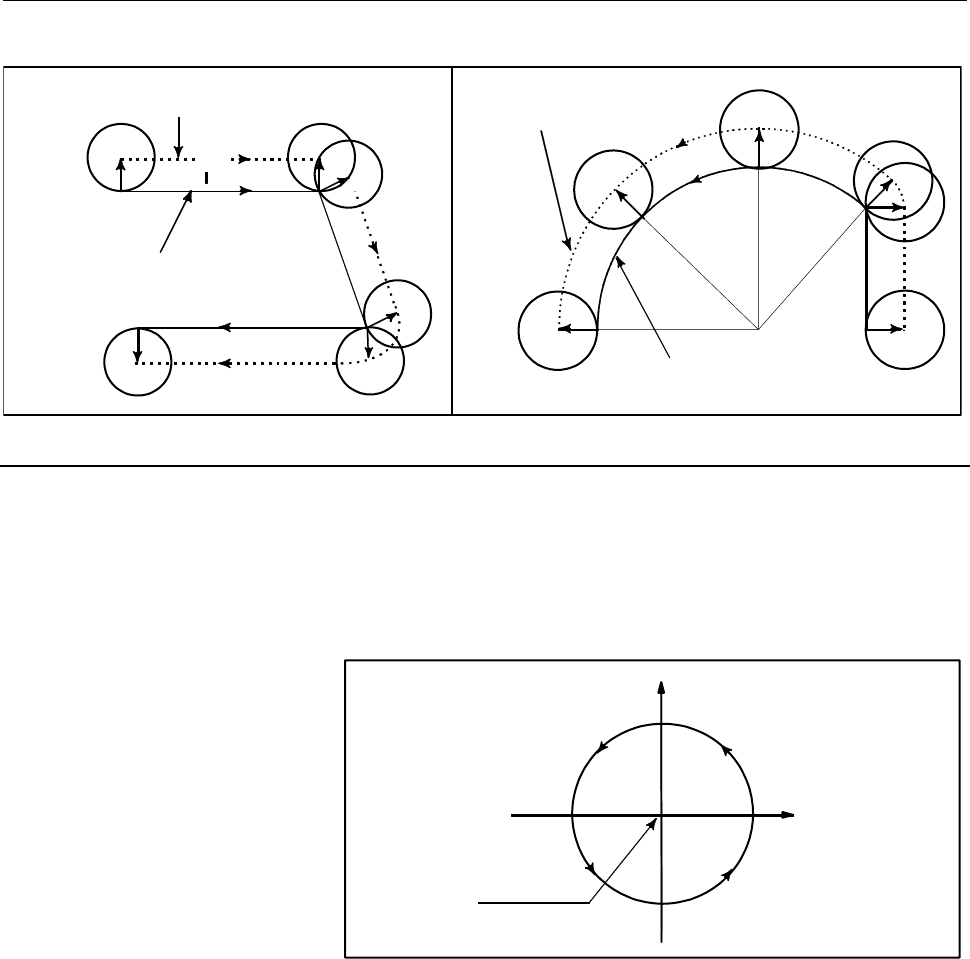

Fig. 6.14 (b) Normal direction control left (G41.1) Fig. 6.14 (c) Normal direction control right (G42.1)

Explanation

- Angle of the C axis

When viewed from the center of rotation around the C-axis, the

angular displacement about the C-axis is determined as shown in Fig.

6.14 (d). The positive side of the X-axis is assumed to be 0 , the

positive side of the Y-axis is 90°, the negative side of the X-axis is

1805, and the negative side of the Y-axis is 270°.

Center of rotation

180

270

Fig. 6.14 (d) Angle of the C axis

- Normal direction control of the C axis

When the cancel mode is switched to the normal direction control

mode, the C-axis becomes perpendicular to the tool path at the

beginning of the block containing G41.1 or G42.1.

In the interface between blocks in the normal direction control mode,

a command to move the tool is automatically inserted so that the

C-axis becomes perpendicular to the tool path at the beginning of each

block. The tool is first oriented so that the C-axis becomes

perpendicular to the tool path specified by the move command, then it

is moved along the X- and Y axes.

In the cutter compensation mode, the tool is oriented so that the C-axis

becomes perpendicular to the tool path created after compensation.

In single-block operation, the tool is not stopped between a command

for rotation of the tool and a command for movement along the X- and
