B-63944EN-2/02 PROGRAMMING 5.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 45 -

5.1.2 Left-Handed Tapping Cycle (G74)

This cycle performs left-handed tapping. In the left-handed tapping

cycle, when the bottom of the hole has been reached, the spindle

rotates clockwise.

Format

G74 X_ Y_ Z_ R_P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

F_ : Cutting feedrate

K_ : Number of repeats (if required)

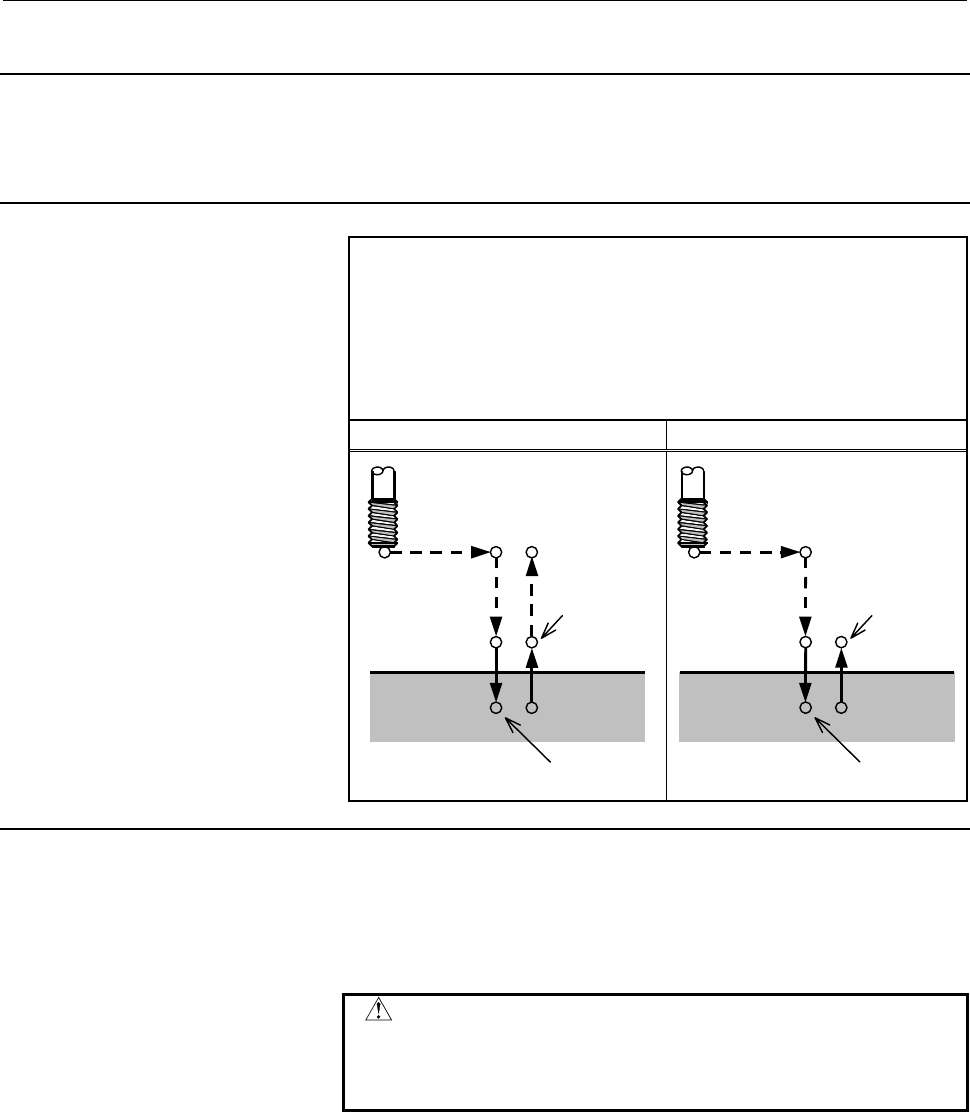

G74 (G98) G74 (G99)

Point R

Point Z

Spindle CW

Spindle

CCW

Initial level

Point R

Point Z

Spindle CW

Spindle

CCW

Point R level

Explanation

- Operations

Tapping is performed by turning the spindle counterclockwise.

When the bottom of the hole has been reached, the spindle is rotated

clockwise for retraction. This creates a reverse thread.

CAUTION

Feedrate overrides are ignored during left-handed

tapping. A feed hold does not stop the machine

until the return operation is completed.

- Spindle rotation

Before specifying G74, use an auxiliary function (M code) to rotate

the spindle counterclockwise.

If drilling is continuously performed with a small value specified for

the distance between the hole position and point R level or between

the initial level and point R level, the normal spindle speed may not be

reached at the start of hole cutting operation. In this case, insert a

dwell before each drilling operation with G04 to delay the operation,

without specifying the number of repeats for K. For some machines,
