6.COMPENSATION FUNCTION PROGRAMMING B-63944EN-2/02

- 132 -

- Tool movement when the moving direction of the tool in a block which includes a

G40 (offset cancel) command is different from the direction of the workpiece

When you wish to retract the tool in the direction specified by X and

Z canceling the tool nose radius compensation at the end of machining

the first block in Fig. 6.5.4 (i), specify the following :

G40 X _ Z _ I _ K _ ;

where I and K are the direction of the workpiece in the next block,

which is specified in incremental mode.

(G42)

G40 X_ Z_ I_ K_ ;

G40

I, K

X, Z

Moving direction of tool

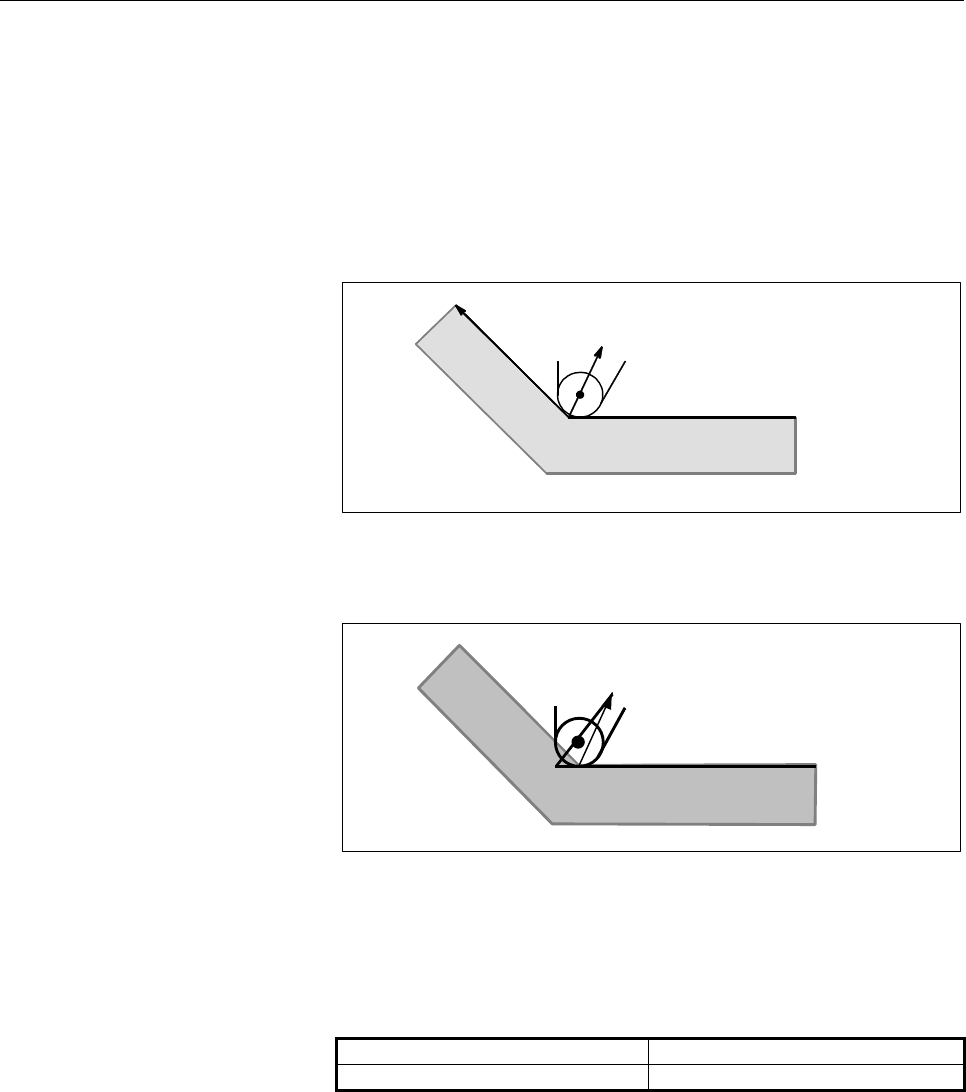

Fig. 6.5.4 (i) If I and K are specified in the same block as G40

Thus, this prevents the tool from overcutting, as shown in Fig. 6.5.4

(j).

G40 X_ Z_ ;

(G42)

G40

X, Z

ctual move command

Fig. 6.5.4 (j) Case in which overcutting occurs in the same block as G40

The workpiece position specified by addresses I and K is the same as

that in the preceding block.

Specify I_K_; in the same block as G40. If it is specified in the same

block as G02 or G03, it is assumed to be the center of the arc.

G40 X_ Z_ I_ K_ ; Tool nose radius compensation

G02 X_ Z_ I_ K_ ; Circular interpolation

If I and/or K is specified with G40 in the cancel mode, the I and/or K

is ignored. The numeral is followed I and K should always be

specified as radius values.

G40 G01 X_ Z_ ;

G40 G01 X_ Z_ I_ K_ ; Offset cancel mode (I and K are

ineffective.)
