B-63944EN-2/02 PROGRAMMING 6.COMPENSATION FUNCTION

- 109 -

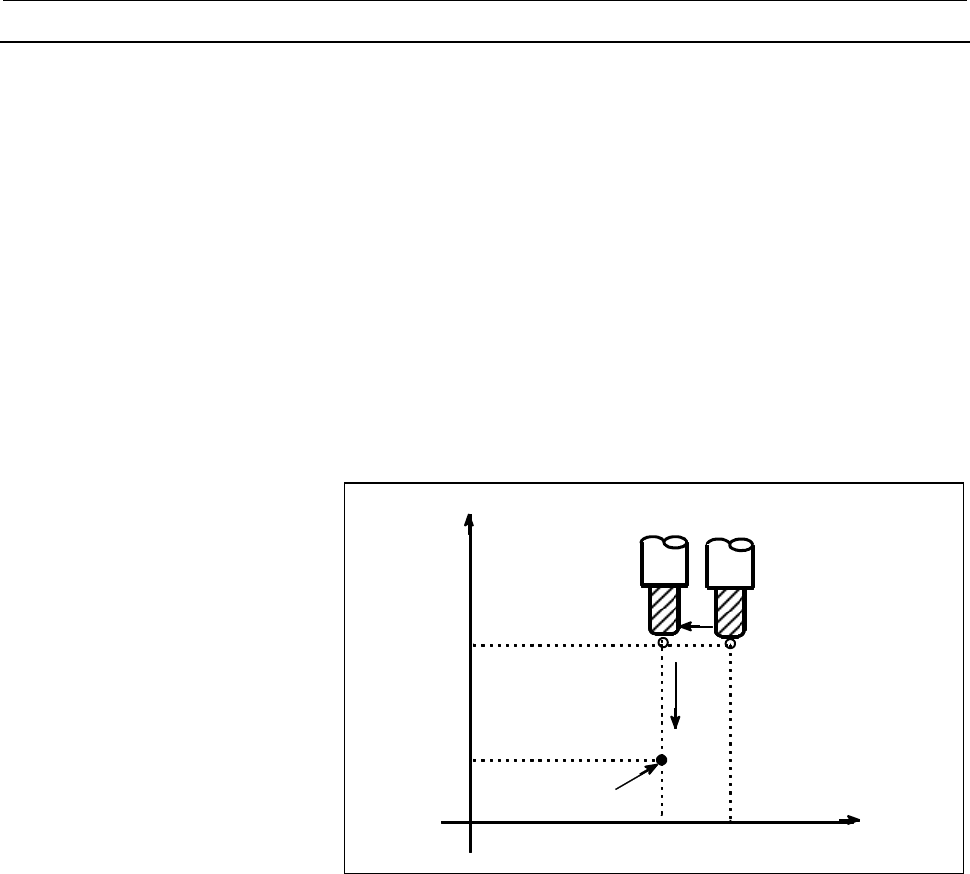

Example

G92 Z760.0 X1100.0 ; Sets a workpiece coordinate system with

respect to the programmed absolute zero

point.

G00 G90 X850.0 ; Moves the tool to X850.0.

That is the tool is moved to a position that is a

specified distance from the measurement

position along the Z-axis.

H01 ; Specifies offset number 1.

G37 Z200.0 ; Moves the tool to the measurement position.

G00 Z204.0 ; Retracts the tool a small distance along the

Z-axis.

For example, if the tool reaches the measurement position with

Z198.0;, the compensation value must be corrected. Because the

correct measurement position is at a distance of 200 mm, the

compensation value is lessened by 2.0 mm (198.0 - 200.0 = -2.0).

200

760

850

1100

Measurement

position along Z axis
