6. REFERENCE POSITION

B–63002EN/01

NC FUNCTION

It is possible to return the tool to the floating reference position by

commanding the G30.1.

The floating reference position is located on the machine and can be a

reference position of some sort of machine operation. It is not always a

fixed position but may vary in some cases. The floating reference

position can be set using the soft keys of MDI and can be memorized even

if the power is turned off.

Generally, the position where the tools can be replaced on machining

center, milling machine is a set position on top of the machinery. The

tools cannot be replaced at any machine angle. Normally the tool

replacement position is at any of the No. 1 to No. 4 reference position.

The tool can be restored to these positions easily by G30 command.

However, depending on the machine, the tools can be replaced at any

position as long as it does not contact the work piece.

In lathes, the tool can generally be changed at any position unless it

touches the workpiece or tailstock.

For machinery such as these, in order to reduce the cycle time, it is

advantageous to replace tools at a position as close as possible to the work.

For this purpose, tool replacement position must be changed for each

work shape and this feature can be easily realized by this function.

Namely, the tool replacement position which is suitable for works can be

memorized as the floating reference position and it is possible to return

the tool to the tool replacement position easily by commanding the

G30.1.

G30.1 _ ;

: It is the intermediate point to the floating reference position and is

commanded by an absolute value or an incremental value.

When the G30.1 is commanded, the axis commanded is set to the

intermediate point with rapid traverse at first and then is set to the floating

reference position from the intermediate point with rapid traverse. The

positioning to the intermediate point or to the floating point is performed

at rapid traverse for each axis (non-linear positioning). The floating

reference position return completion signal is output after completing the

floating reference position return.

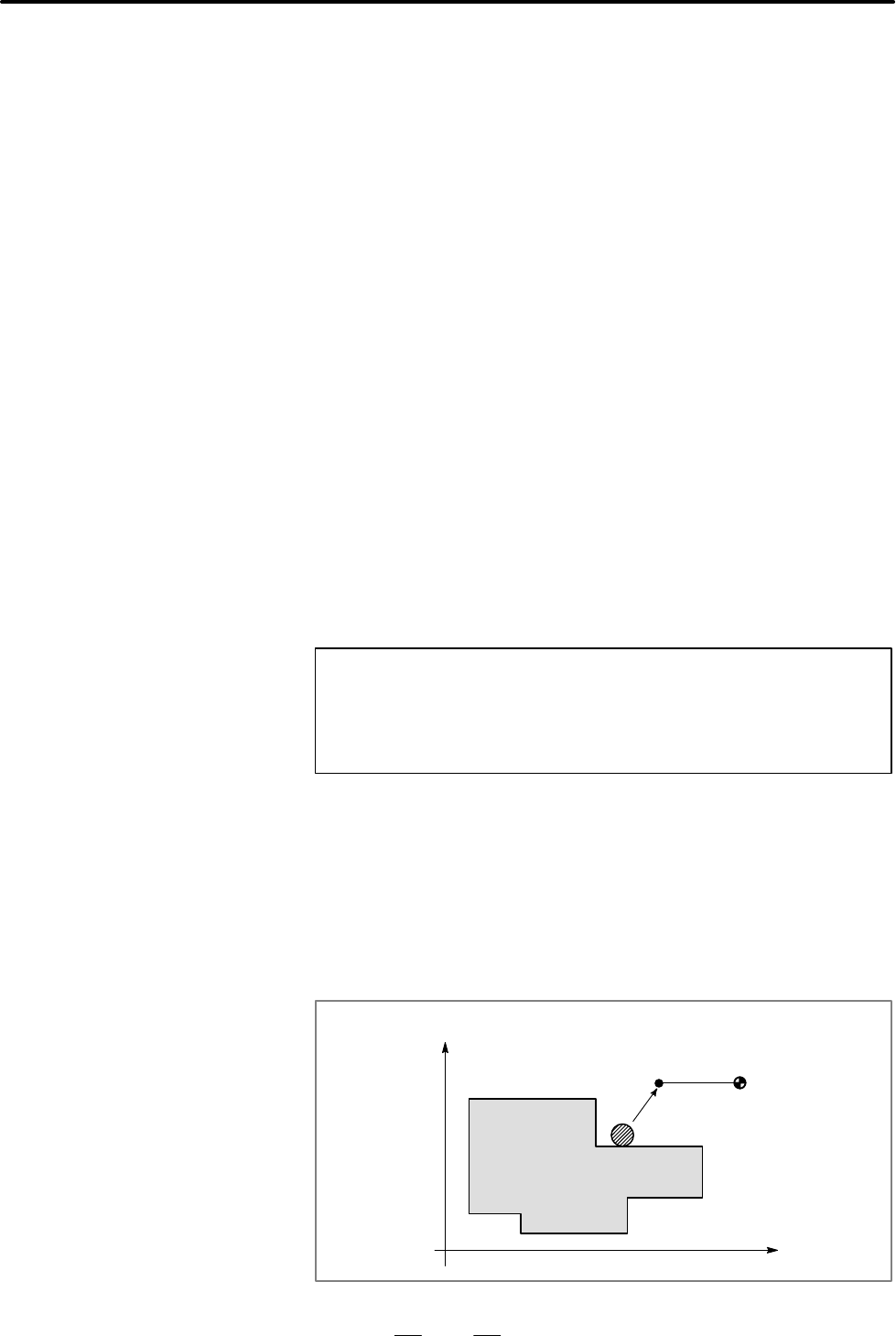

G30.1 G90 X50.0 Y40.0 ;

Intermediate point (50, 40)

Workpiece

Floating reference position

6.6

FLOATING

REFERENCE

POSITION RETURN

(G30.1)

Format

Explanations

Examples
