Series 16/18/21/20/160/180/210i Descriptions Page 428

Descriptions

Page of 536

/ 536

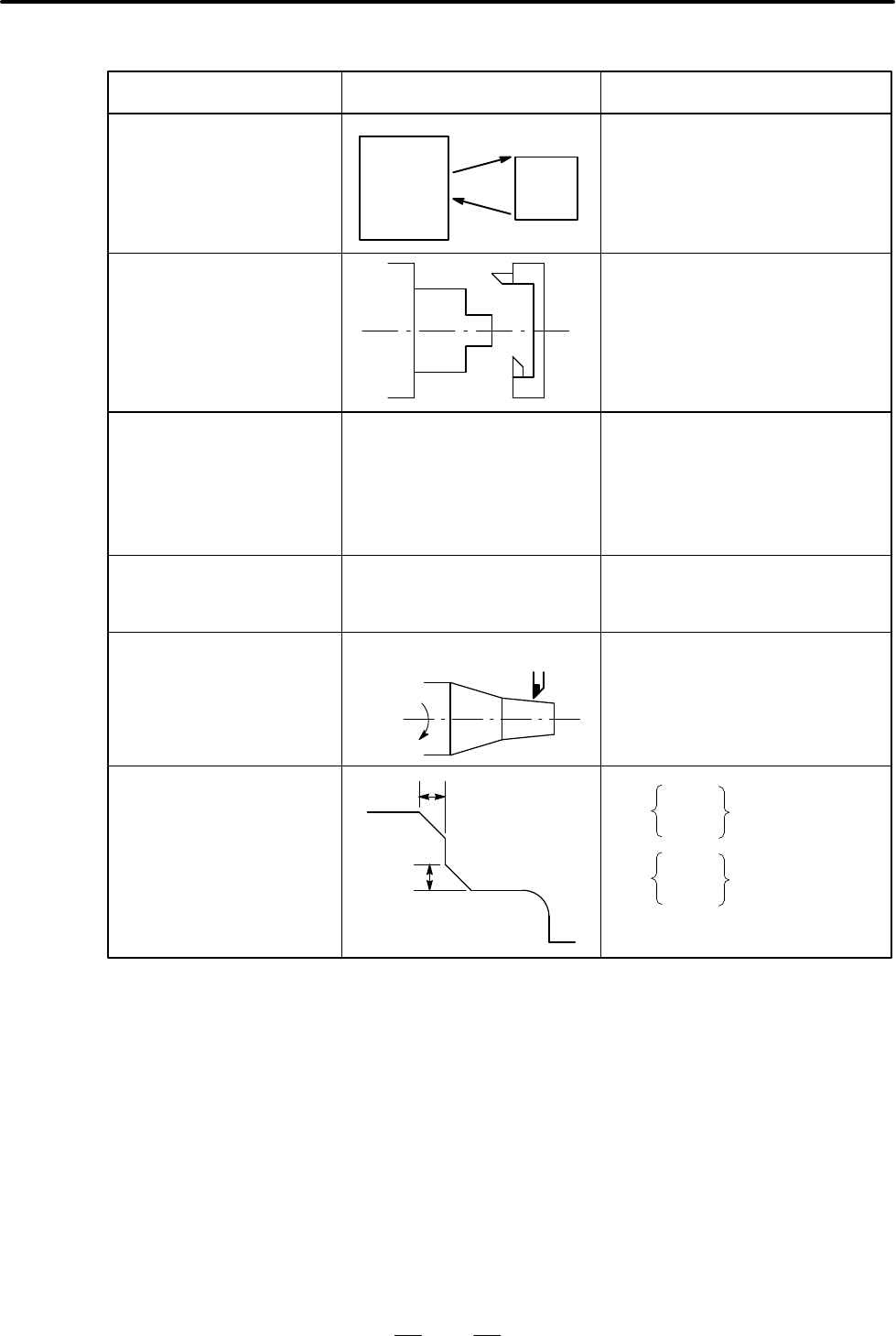

B. FUNCTIONS AND TAPE FORMAT LIST

B–63002EN/01

APPENDIX

408

Feed per minute (G98)

Feed per revolution (G99)

Constant surface speed

control (G96/G97)

G96 S_ ;

G97 ; Cancel

Chamfering, Corner R

Functions Illustration Tape format

mm/min inch/min

mm/rev inch/rev

G98 … F_ ;

G99 … F_ ;

m/min or feet/min

N (rpm)

C"k

P_ ;

X_ ;

C"i

P_ ;

Z_ ;

(4/5)

Mirror image for double

turret (G68, G69)

G68 ;

Mirror image for double turret on

G69 ; Mirror image cancel

G65 P_L_ ;

O_ ;

M99 ;

Macro

Custom macro

(G65, G66, G67)

One–shot call

G65 P_L <argument> ;

P : Program number

L : Repetition count

Modal call

G66 P_L <argument> ;

G67 ; Cancel

Canned cycle for drilling

(G80 to G89)

See Chapter 13, “Functions to

Simplify Programming” in Part II.

G80 ; Cancel

G83 X(U)_C(H)_Z(W)_R_Q_P_F_M_K_;

G84 X(U)_C(H)_Z(W)_R_P_F_M_K_;

G85 X(U)_C(H)_Z(W)_R_P_F_M_K_;

G87 Z(W)_C(H)_X(U)_R_Q_P_F_M_K_;

G88 Z(W)_C(H)_X(U)_R_P_F_M_K_;

G89 Z(W)_C(H)_X(U)_R_P_F_M_K_;
