Series 16/18/21/20/160/180/210i Descriptions Page 386

Descriptions

Page of 536

/ 536

B–63002EN/01

2. CONVERSATIONAL AUTOMATIC

PROGRAMMING FUNCTION FOR

LATHES

AUTOMATIC PROGRAMMING

FUNCTION

365

Tool data input and modifications are made on this screen. A tool

currently selected is indicated on the screen, allowing the user to easily

check tool data.

*** MACHINING DEFINITION *** TOOL DATA 04–03

PROC.04 ROUGHING OF OUTER FIGURE T0909 X 150. Z 150.

MACHINING START POSITION:

TOOL SELECT NO. TN = 09 DX0 = 150. Z0 = 150.. .

TOOL OFFSET NO. TM = 09. .

TOOL ID NO. ID = 500. . . . . . .

TOOL TYPE TP ; GENERAL. . . .

NOSE RADIUS RN = 0.8. . . . . . .

CUTTING EDGE AC = 8.. . . . . .

NOSE ANGLE AN = 75.. . . . . . . .

PROTECTION ANGLE AP = 3..

VIRTUAL TOOL POS. XN = 0.8

ZN = 0.8

SETTING ANGLE AS = –90.. . . .

SETTING POSITION XS = 0..

ZS = 0.

HOLDER NO. ML = 13. . . . . . . .

TN = METRIC

*NC SIDE*

O 0000

N 00000

X–AXIS

0.000

Z–AXIS

0.000

S 000000

T 000000

M 000000

ESCAPE BACK TAB NEXT TOOL

PAGE TOOL DATA

TOLING CURSORCURSOR CHECK NEXT

INFOR. ↑↓ PAGE

Cutting directions and cutting areas are specified using the arrow keys.

Any cutting direction and area can be specified.

ESCAPE BACK ↑↓ →

PAGE

← CURSOR CURSOR DRAWNG NEXT

↑↓RANGE PAGE

*** MACHINING DEFINITION *** CUTTING AREA DEFINITION 04–05

PROC.04 ROUGHING OF OUTER FIGURE T0909 X 150. Z 150.

CUTTING DIRECTION CD = ↓. . . . . . . .

CUTTING AREA DEFINITION:

START POINT END POINT

( 68. / 0. ) ( 27. / 0. )

DIVIDING DIRECTION DS = ↑ DIVIDING DIRECTION DE = ↓. . . .

CD = METRIC

*NC SIDE*

O 0000

N 00000

X–AXIS

0.000

Z–AXIS

0.000

S 000000

T 000000

M 000000

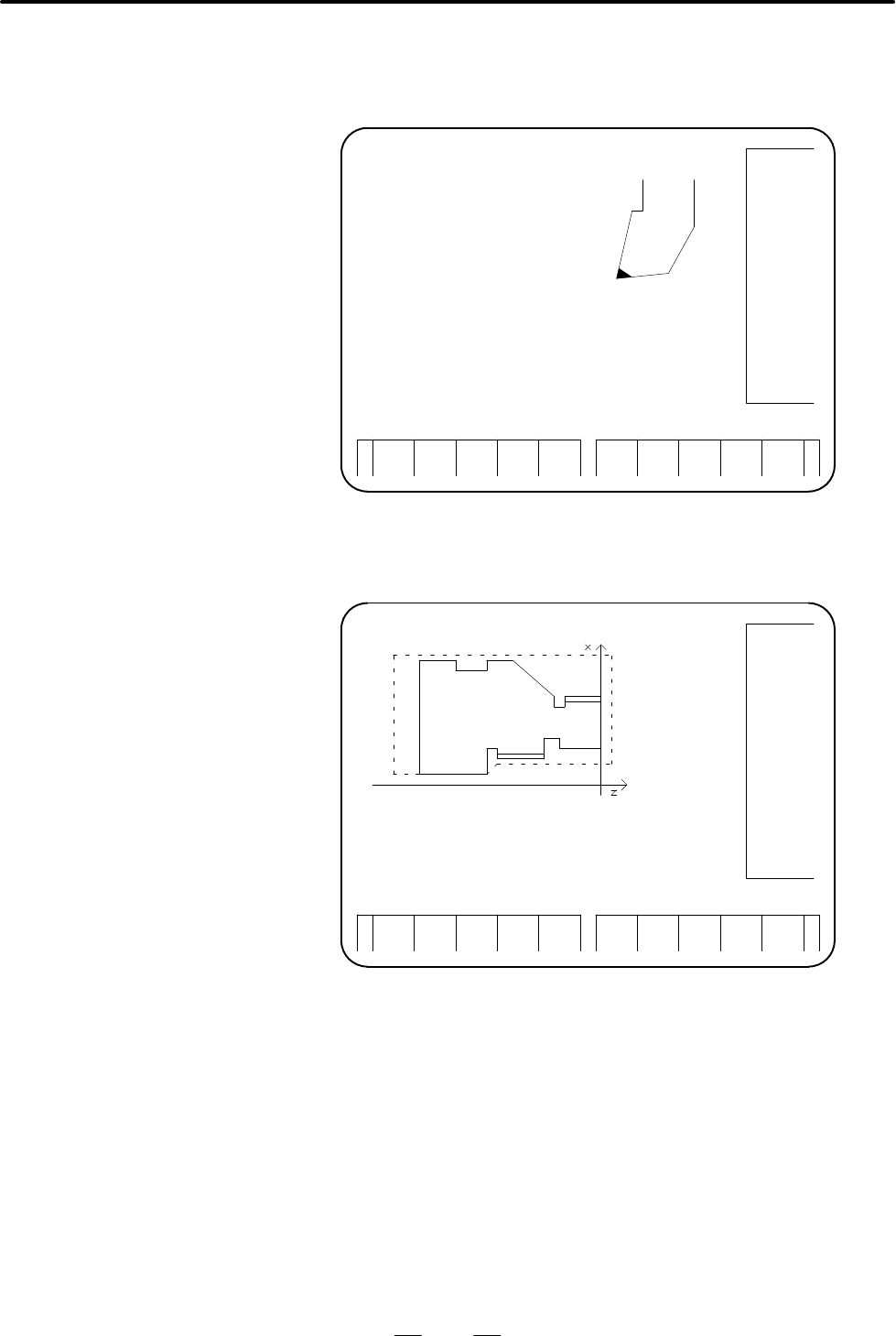

Tool data input screen

Screen for setting

cutting directions and

cutting areas
