3. INTERPOLATION FUNCTIONS

B–63002EN/01

NC FUNCTION

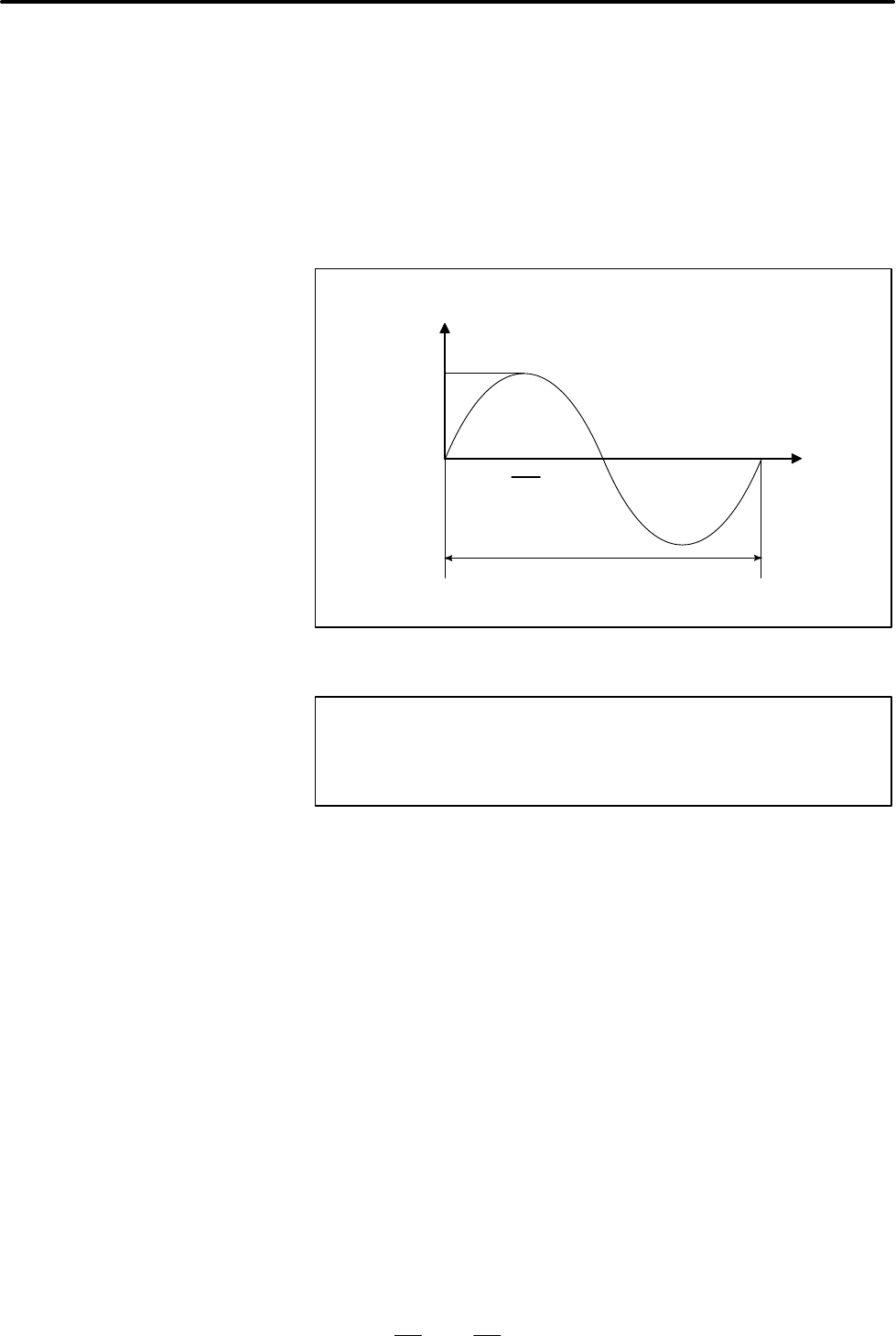

In helical interpolation, when pulses are distributed with one of the

circular interpolation axes set to a hypothetical axis, sine interpolation is

enable.

When one of the circular interpolation axes is set to a hypothetical axis,

pulse distribution causes the speed of movement along the remaining axis

to change sinusoidally. If the major axis for threading (the axis along

which the machine travels the longest distance) is set to a hypothetical

axis, threading with a fractional lead is enabled. The axis to be set as the

hypothetical axis is specified with G07.



 2

G07  1; Hypothetical axis cancel

G07  0; Hypothetical axis setting

Where,  is any one of the addresses of the controlled axes.

3.12

HYPOTHETICAL AXIS

INTERPOLATION

(G07)

Format
