2. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
LATHES
AUTOMATIC PROGRAMMING
FUNCTION
374

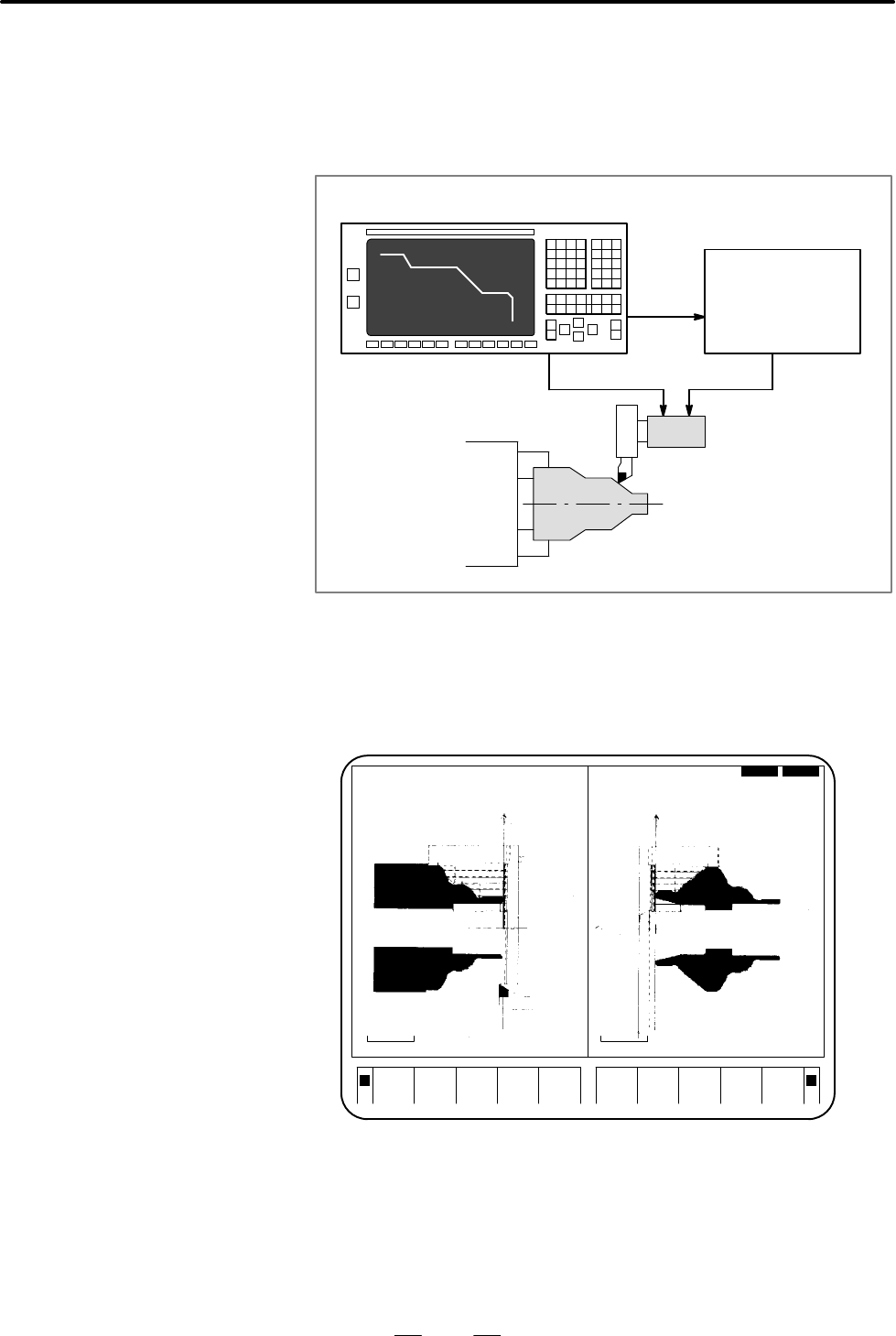

The machining program created conversationally can be run directly.
The program can also be converted and executed as an NC program.
Furthermore, when modifications are made to the NC program obtained
by the conversion, a much more efficient machining program can be
created.
Machining program created conversationally
G00 X_ Z ;
G01 X_ Z_ F_ ;
M_ S_ ;
G02 X_ Z_ R_ ;
NC program
(ISO/EIA code)
A variety of machining simulations, such as simultaneous animated
simulation for the facing 2–spindle 2–path lathe, animated simulation for
the 1–spindle/2–turret 2–path lathe, and animated simulation of
C–axis/Y–axis machining can be performed.
X1 0.000 X2 50.000
Z1 0.000 X2 –0.661
C1 0.000 C2 0.000
ACT G00 ACT G02
X 0.000 X 0.000
Z 0.000 Z 0.000
C 0.000 C 0.000
NXT G00 NXT G02
X 0.000 X 4.223
Z 0.000 Z –0.961
C 0.000 C 0.000
0M00S 2M30S
HEAD1 HEAD2
SPEED SPEED PLOT PROG
UP DOWN ON/OFF
< +
O0134 P0001
30.3 30.3
500% MEM STOP *** *** 12:14:58 STOP
HEAD WORK PROCES EXEC SINGLE
PIECE STEP
By using the software package provided for the macro compiler/executor,
auxiliary operations specific to the machine, such as measurement on the
machine, bar feeder, cutting–off, and transfer of blanks, can easily be
included in the conversational function.The newly added processes can
be displayed and edited the same as with other existing processes.
NC program output
function
Machining simulation
Adding
machine–specific unique
know–how
