B–63002EN/01

27. DISPLAYING AND SETTING DATA

NC FUNCTION

311

The configurations of software and hardware required for maintenance of

the CNC are displayed.

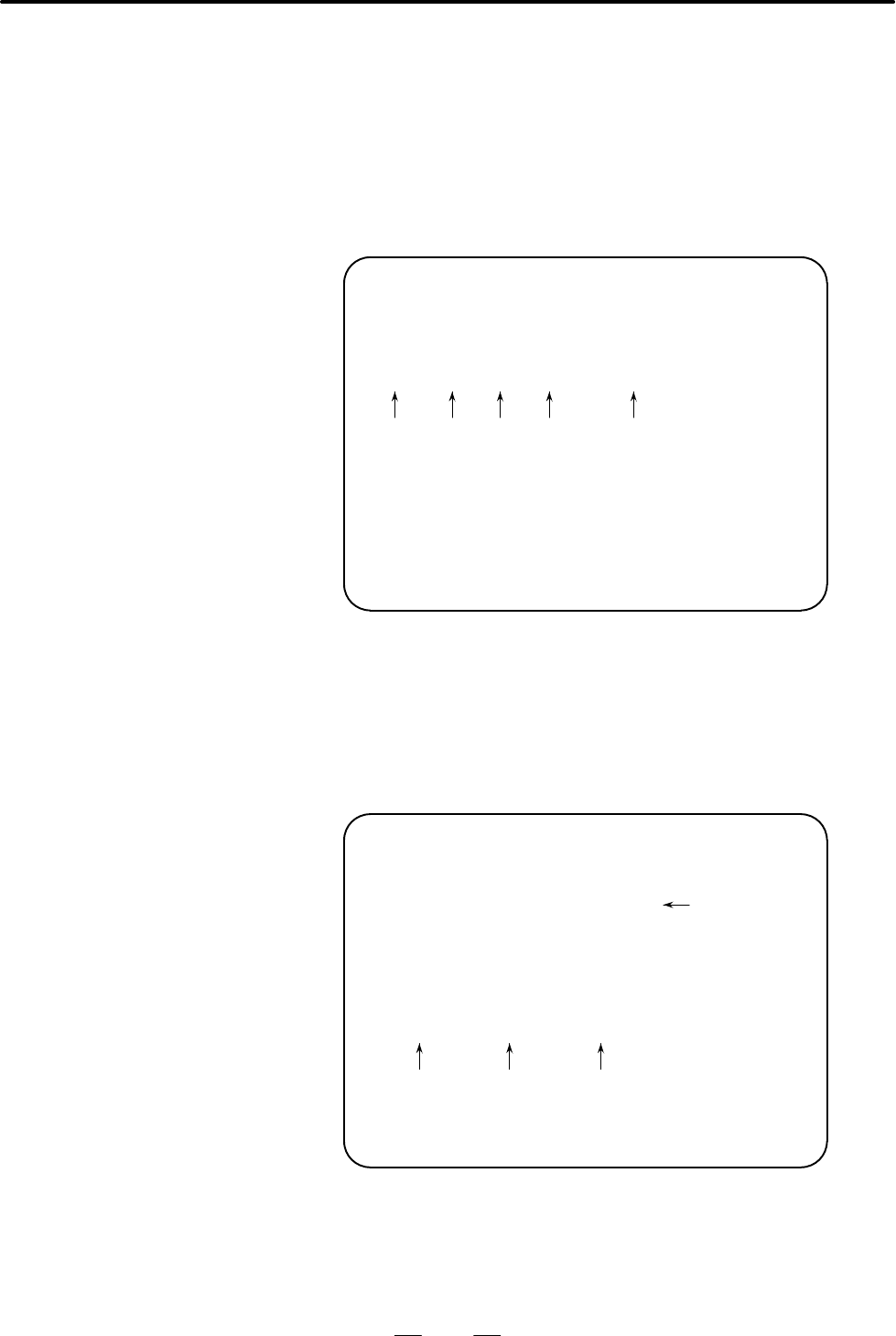

The system configuration display function provides the following three

screens:

D Slot information screen

D Software information screen

D Hardware (module) information screen

SYSTEM CONFIG O1234 N56789

SLOT MODULE_ID SERIES VERSION

00 10D5 :40 B0F1 0002

01 00CF :66 B435 0001

03 019D :41 4068 0001

MEM **** *** *** 18:46:43

[ PARAM ][ DGNOS ][ PMC ][ SYSTEM ][ ]

  

Slot No.

 Module ID

 Software ID

 Software series

 Software edition

SYSTEM CONFIG(SOFTWARE) O1234 N56789

SYSTEM B0F1 0001

BASIC+OPTION–A1

SERVO 9090 0001

PMC(SYS) 406A 0001

4099 0001

PMC(LAD) FS16 0001

MACRO LIB BZG1 0001

BOOT 60M3 0004

GRAPHIC–1 600W 001Z

MEM **** *** *** 19:14:23

[ PARAM ][ DGNOS ][ PMC ][ SYSTEM ][ ]







Software type

 Software series

 Software edition

 Contents of ROM (system ROM only)

27.10

SYSTEM

CONFIGURATION

DISPLAY FUNCTION

Slot information

Software information
