30. DATA INPUT/OUTPUT

NC FUNCTION

331

DNC1 is a poprietary communication network allowing information

exchange between the cell controller and CNC machine tools.

DNC1 is classified into two mode, Mode–1 and Mode–2, by the

connection models.

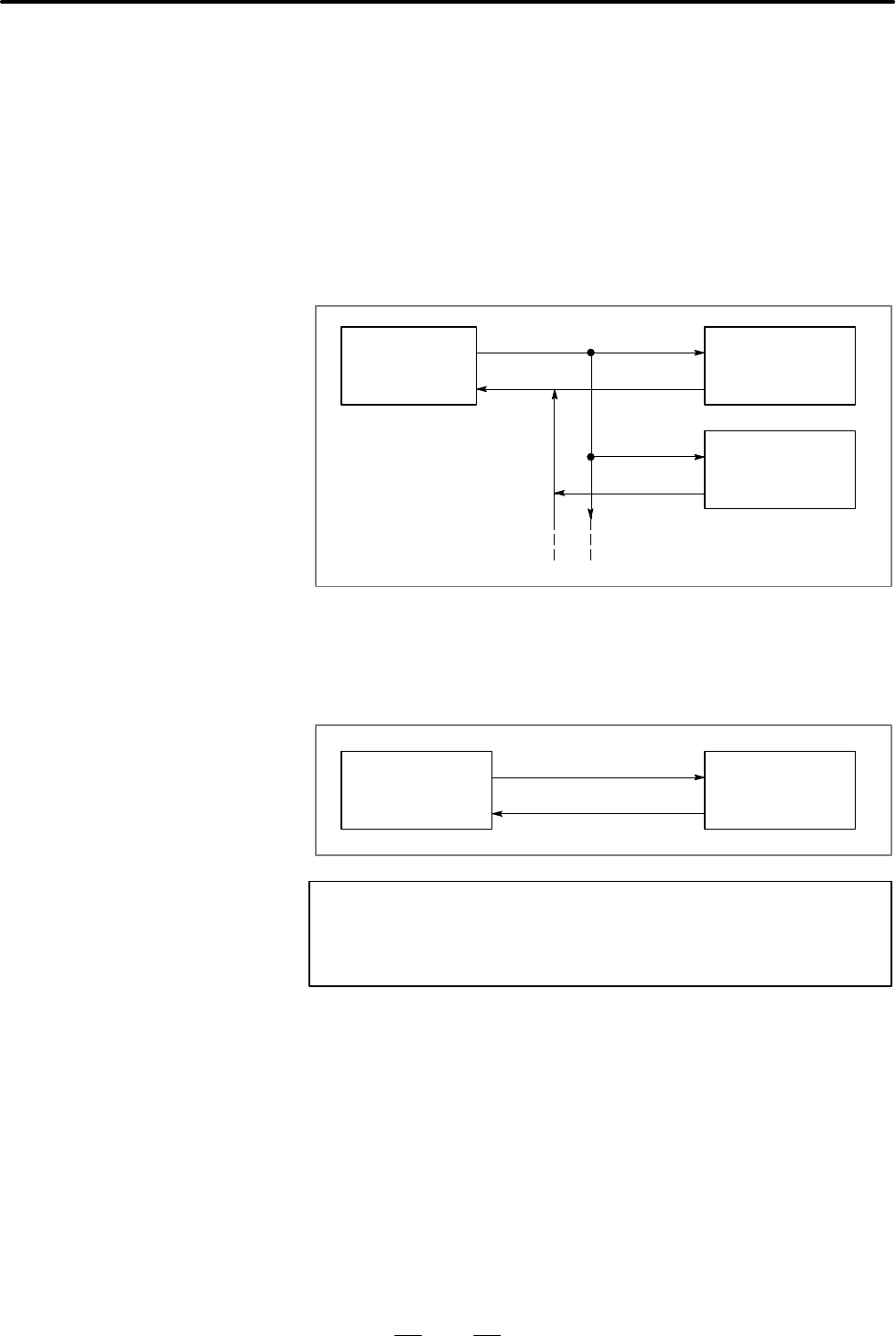

In the Mode–1, the cell controller plays as a primary station and controls

multiple CNC machine tools in the multi–point–connection.

This mode is usually used to establish small scale FMS.

Primary station

Cell controller

Secondary station

CNC

Command

Response

Secondary station

CNC

Command

Response

In the Mode–2, the cell controller and CNC play as a combined station

in the point–to–point connection.

This mode is usually used for drip feeding of continuous small blocks in

the DNC operation such as mold machining.

Command / Response

CNCCell controller

Combined station Combined station

Response / Command

NOTE

The combined station has combined functions of primary

station and secondary station.

 Primary station

This station controls data link and has responsibility of control and

recovery to the other station on the data link. This station corresponds

to the cell controller in the multi–point connection.

 Secondary station

This station executes data link control according to the command of

the primary station. This station corresponds to the CNC in the

multi–point connection.

 Combined station

This station executes peer–to–peer communication concerning to the

data link control.

30.5

DNC1 CONTROL

Explanations

 Mode–1

 Mode–2
