B–63002EN/01

8. COORDINATE VALUE AND

DIMENSION

NC FUNCTION

The end point coordinate value can be input in polar coordinates (radius

and angle). Use G15, G16 for polar coordinates command.

G15 : Polar coordinate system command cancel

G16 : Polar coordinate system command

Plane selection of the polar coordinates is done same as plane selection

in circular interpolation, using G17, G18, G19.

Command radius in the first axis of the selected plane, and angle in the

second axis. For example, when the X-Y plane is selected, command

radius with address X, and angle with address Y. The plus direction of the

angle is counter clockwise direction of the selected plane first axis +

direction, and the minus direction the clockwise direction.

Both radius and angle can be commanded in either absolute or

incremental command (G90, G91).

The center of the polar coordinates is the zero point of the workpiece

coordinates. (However, if the local coordinates are set, it is the zero point

of the local coordinates.)

 Both hole cycle

N1 G17 G90 G16;

Polar coordinates command, X-Y plane

N2 G81 X100. Y30. Z-20. R-5. F200.;

100mm radius, 30 × angle

N3 X100. Y150;

100mm radius, 150 × angle

N4 X100. Y270;

100mm radius, 270 × angle

N5 G15 G80;

Polar coordinates cancel

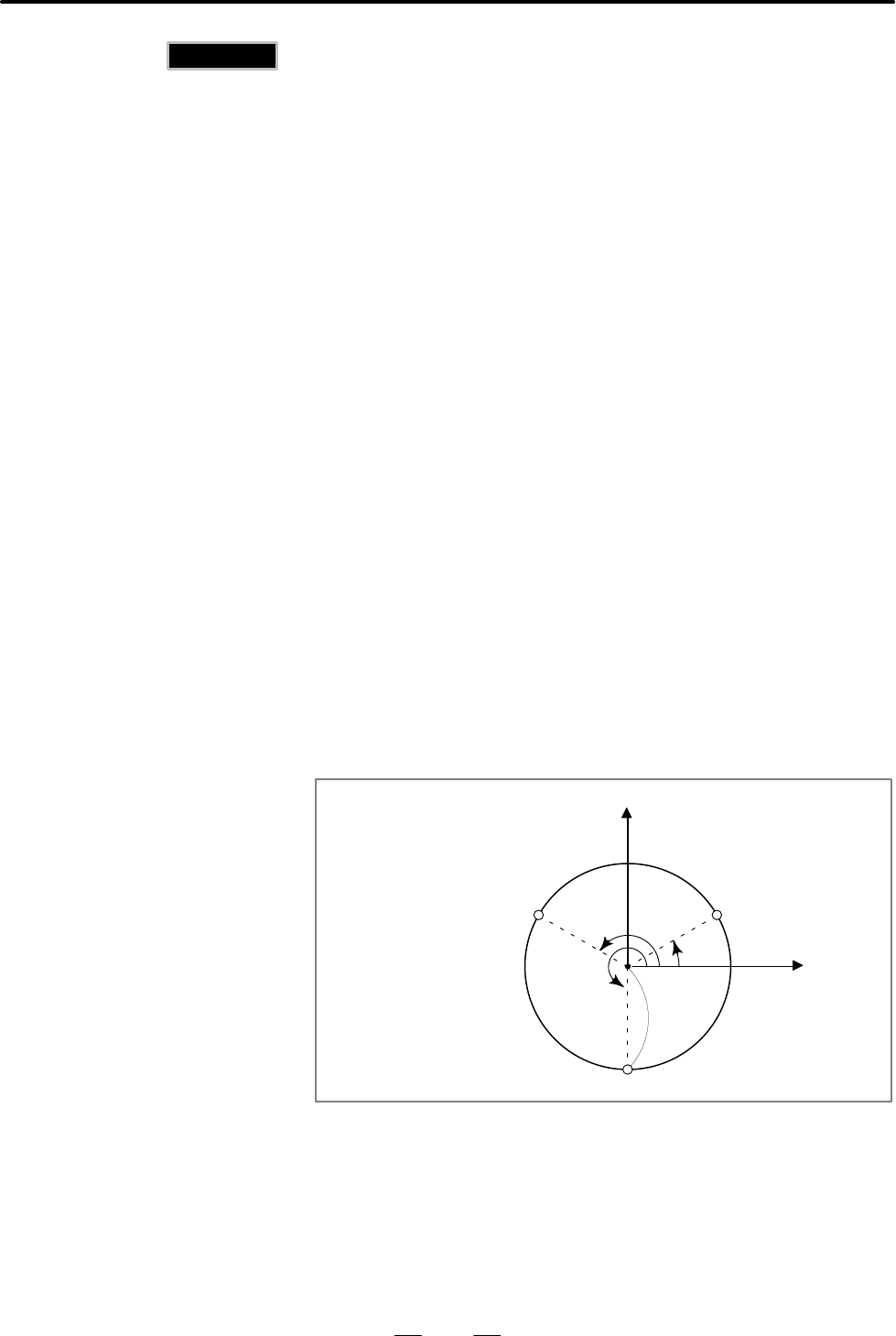

270°

Workpiece coordinate system

150°

30°

100mm

8.2

POLAR COORDINATE

COMMAND (G15, G16)

(M series)

M series

Examples
