Series 16/18/21/20/160/180/210i Descriptions Page 281

Descriptions

Page of 536

/ 536

B–63002EN/01

22. FUNCTIONS SPECIFIC TO 2–PATH

CONTROL

NC FUNCTION

259

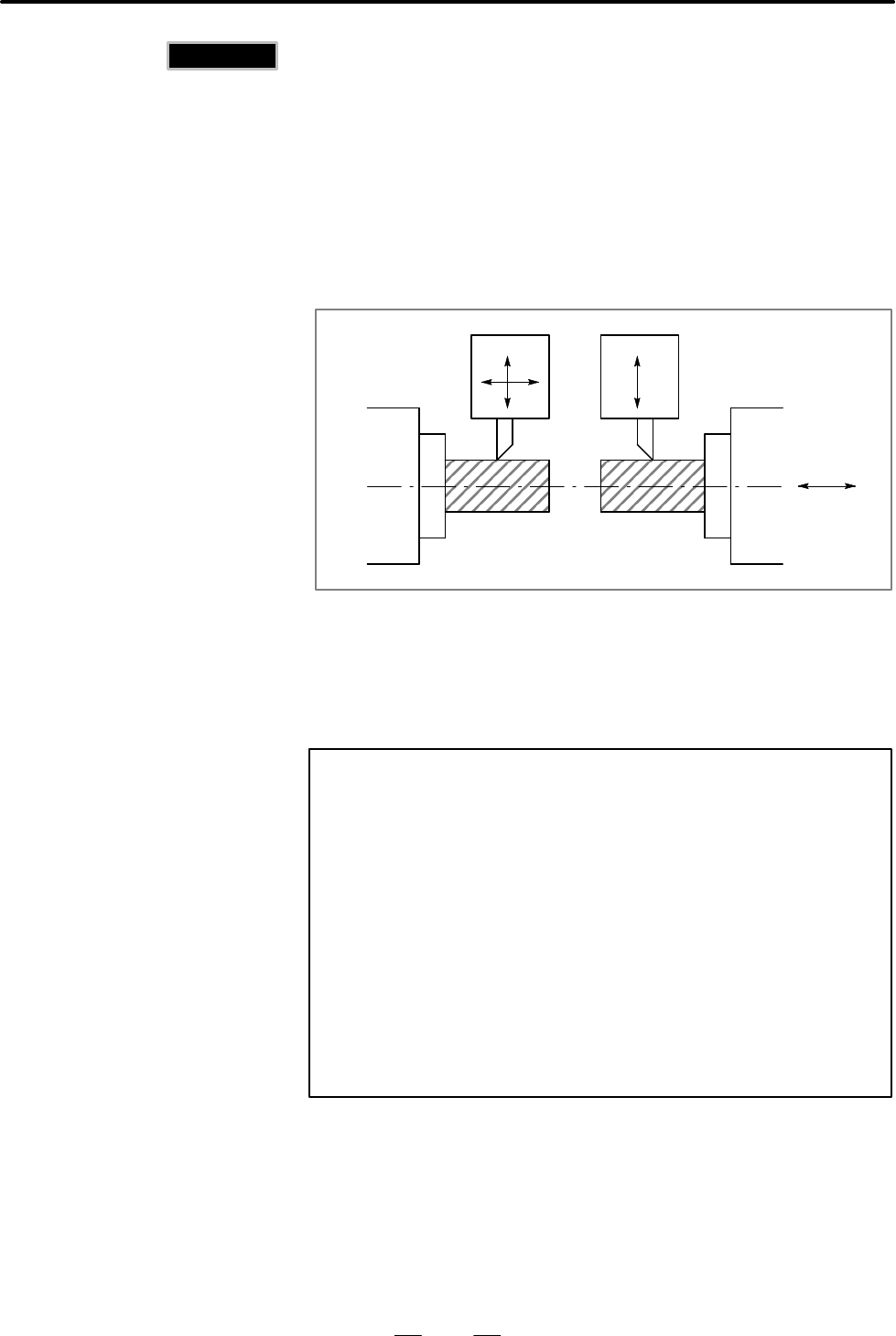

In 16-TB(2–path control), usually the axes belonging to path 1 (X1,

Z1,...) are moved by the move command of path 1. The axes belonging

to path 2 (X2, Z2, ...) are moved by that of path 2 (individual path control).

The synchronization/mix control function can move an optional axis of

one path and that of the other path synchronously (synchronization

control). This control function can exchange the move commands for

optional axes between two paths (mix control).

The axes belonging to path 1 (X1, Z1,...) are moved by the move

command of path 1. The axes belonging to path 2 (X2, Z2, ...) are moved

by that of path 2.

The move command for an axis (master axis) is given also to another

optional axis (slave axis). These two axes are then moved synchronously.

The slave axis can be moved also by its own move command. Which

command to use can be selected by the synchronization control selection

signal from PMC.

NOTE

1 Synchronization here means issuing the master axis move

command to the master axis and also to the slave axis

simultaneously. The position deviation of master and slave

axes is always detected. It, however, is not compensated

because synchronization compensation is not performed. If

a deviation exceeding the limit set in the parameter is

detected, an alarm occurs and the movements of both axes

are stopped.

2 The master axis and slave axis do not need to belong to the

same path. Two or more slave axes can be specified for one

master axis.

22.5

SYNCHRONIZATION/

MIX CONTROL

(T series)

T series

 Individual path control

 Synchronization control
