14. TOOL COMPENSATION FUNCTION

B–63002EN/01

NC FUNCTION

190

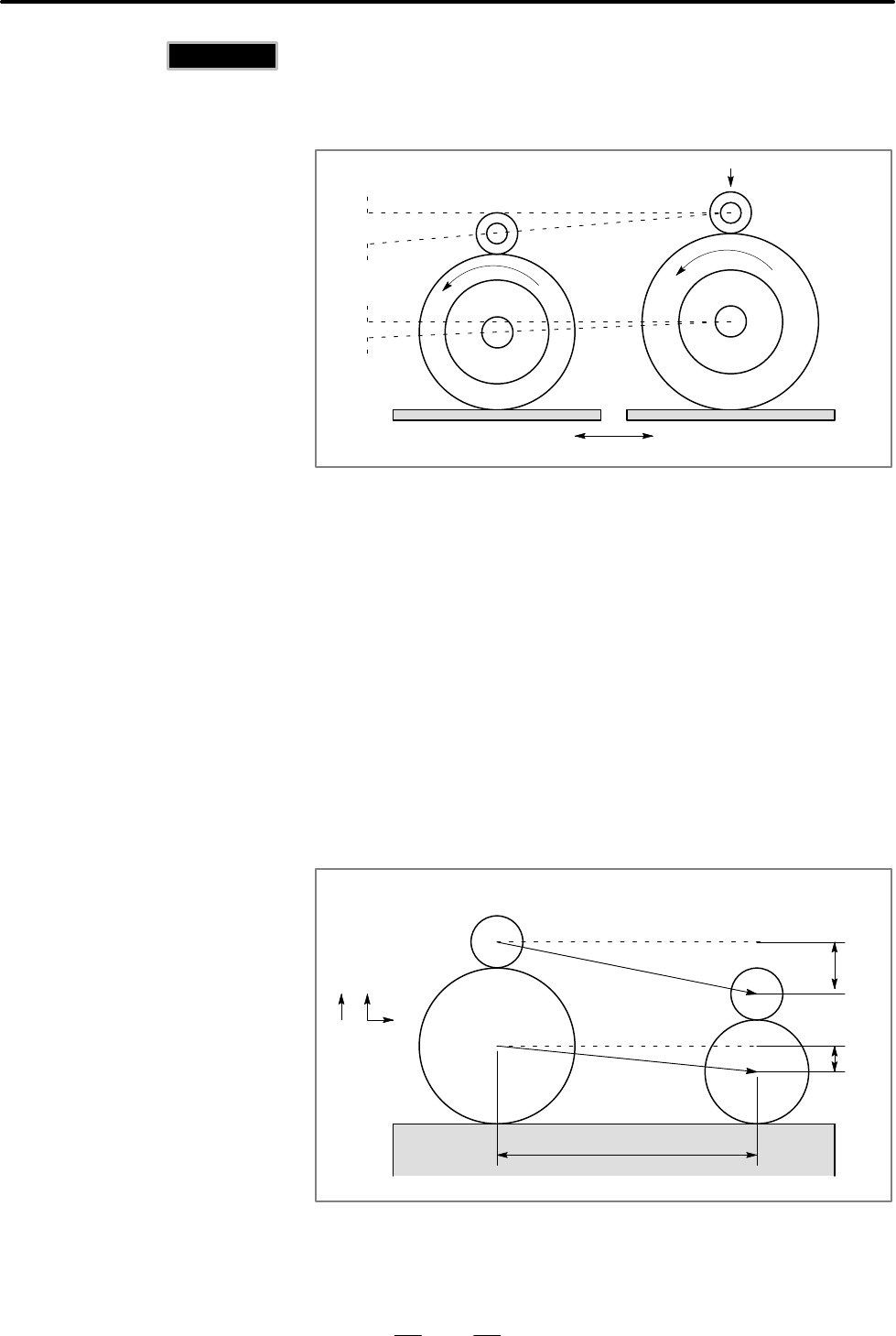

The grinding-wheel cutting and dresser cutting are compensated

continuously during grinding in the canned cycles for surface grinding

(G75, and G77 to G79). They are compensated according to the amount

of continuous dressing.

The offset number (grinding-wheel wear compensation number) is

specified by address L in the block for the canned cycles for surface

grinding. The compensation amount set in the offset memory

corresponding to the specified number is the dressing amount.

Compensation is performed for each cutting operation (each X-axis

movement) in the canned cycles for grinding. Along with X-axis

movement, compensation is performed both in Y-axis direction

(grinding-wheel cutting) and that in V-axis direction (dresser cutting).

That is, compensation is performed for interpolation for the three

coordinates simultaneously. The Y-axis movement amount

(compensation amount) is the specified dressing amount. The V-axis

movement amount is twice the specified dressing amount (diameter).

Dresser

Grinding

wheel

a : Dressing amount

Workpiece

14.11

GRINDING-WHEEL

WEAR

COMPENSATION BY

CONTINUOUS

DRESSING (M series)

M series

Explanations

 Specification

 Compensation
