B–63002EN/01

3. INTERPOLATION FUNCTIONS

NC FUNCTION

Helical interpolation B moves the tool in a helical manner. This

interpolation can be executed by specifying the circular interpolation

command together with up to four additional axes in simple

high–precision contour control mode.

Basically, the command can be specified by adding two movement axes

to a standard helical interpolation command (see Section 3.5). Address

F should be followed by a tangential velocity, which has been determined

by also taking movement along the linear axes into consideration.

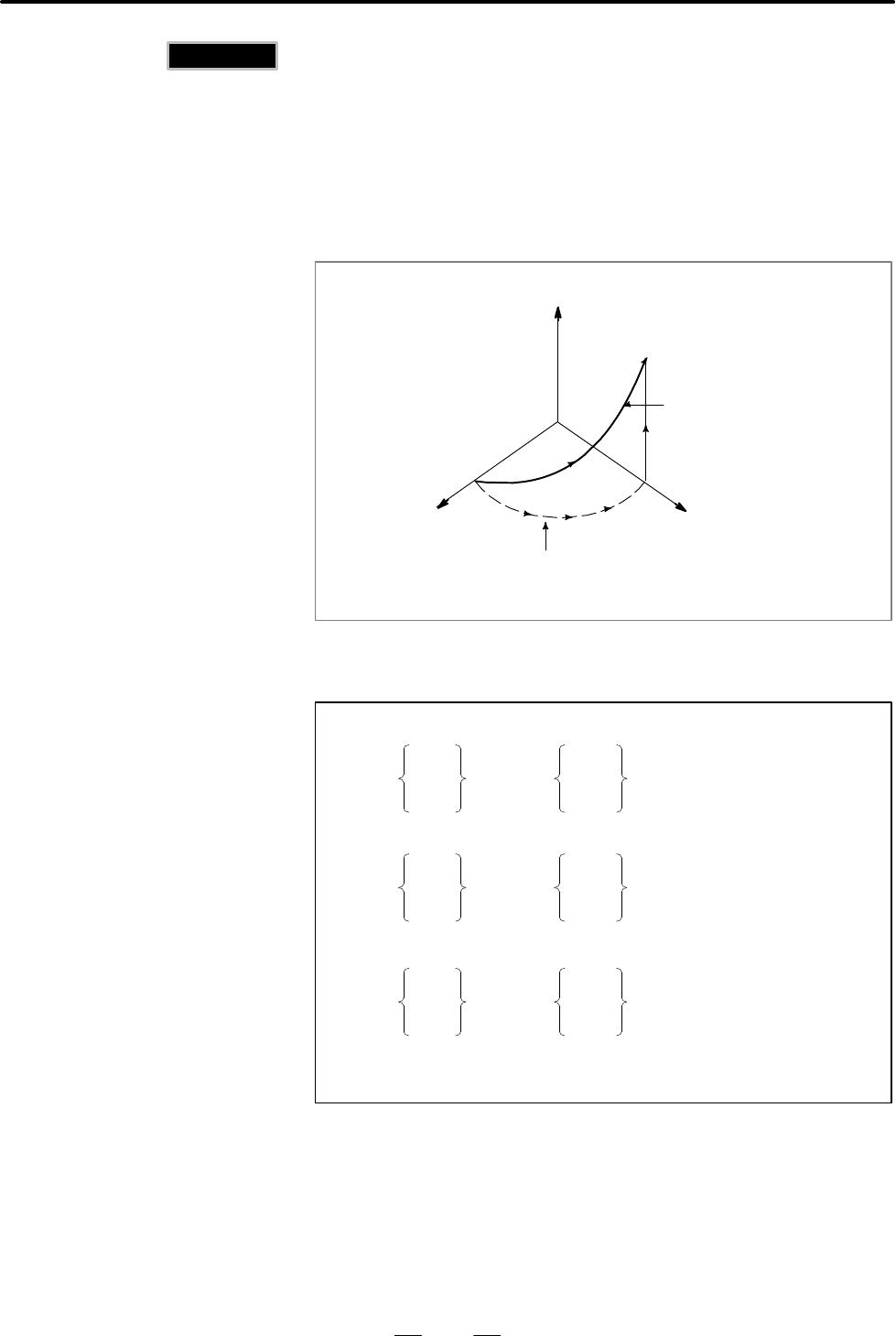

Tool path

The feedrate equals the tangential velocity determined

by also taking movement along the linear axes into

consideration.

G17

G02

G03

Xp_ Yp_

I_ J_

α β γ δ  

G18

G02

G03

Zp_ Xp_

I_ K_

α β γ δ  

G19

G02

G03

Yp_ Zp_

J_ K_

α β γ δ  

With an arc in the Xp–Yp plane

With an arc in the Zp–Xp plane

With an arc in the Yp–Zp plane

α β γ δ Any axis to which circular interpolation is not

applied. Up to four axes can be specified.

3.6

HELICAL

INTERPOLATION B

(G02, G03) (M series)

M series

Format
