Series 16/18/21/20/160/180/210i Descriptions Page 279

Descriptions

Page of 536

/ 536

B–63002EN/01

22. FUNCTIONS SPECIFIC TO 2–PATH

CONTROL

NC FUNCTION

257

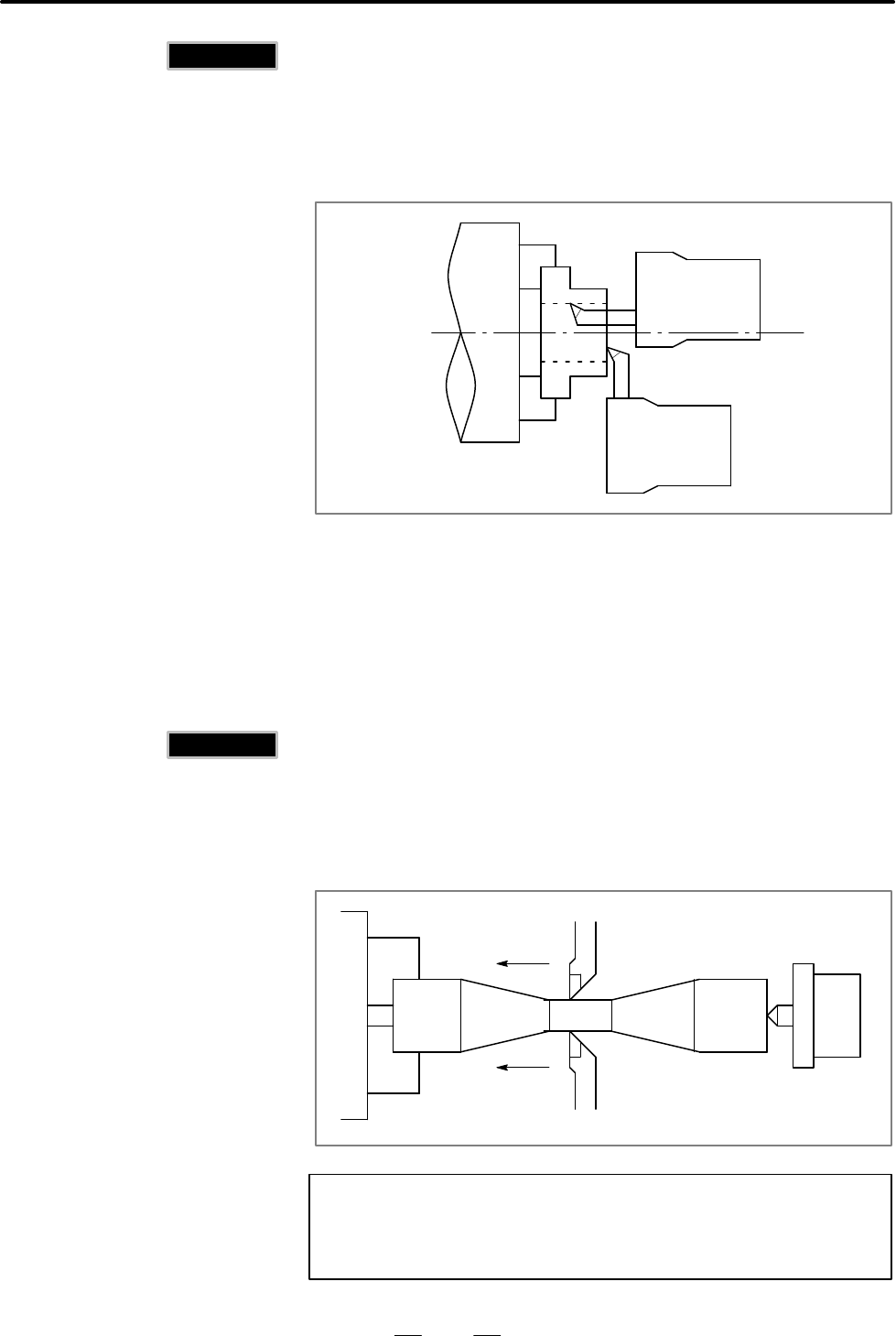

When one workpiece is machined by two paths operating simultaneously,

paths may come close to each other. If these paths touch each other

because of a program error or setting error, the tool or even the machine

may be damaged.

If such an accident is expected, the path interference check function

decelerates and stops the paths.

path 1

path 2

To execute the path interference check, the contour of each path (contour

including the tool mounted on the path) must be set as a contact-inhibited

area for each tool beforehand.

This function checks if the contact-inhibited areas of these paths overlap.

If they overlap each other, it determines that the paths have interfered with

each other, and decelerates them till they stop as an alarm.

To machine a fine workpiece, two cutting tools should be applied on both

sides of a workpiece as shown below. When only one tool is applied, the

other side of the workpiece may be deflected. Using two cutting tools can

make machining precision higher. If, however, these tools are not moved

synchronously, the workpiece will shake and machining will not be done

precisely. The balance cut function makes paths move synchronously.

NOTE

The balance cut function cannot be used if the option of

mirror-image operation of facing paths is specified.

22.2

PATH

INTERFERENCE

CHECK (T series)

T series

22.3

BALANCE CUT

(G68, G69) (T series)

T series
