FANUC Series 16i/18i/21i/20i/160i/180i/210i-MODEL A

CONNECTION MANUAL (FUNCTION)

Concerning the addition of Look-Ahead Bell-Shaped

Acceleration/Deceleration Before Interpolation Time

Constant Change Function

B-63003EN-1

02-08 01 01.08.29 Newl

istered

Look-ahead Bell-Shaped Acceleration/Deceleration Before Interpolation

Time Constant Change Function (M Series)

General

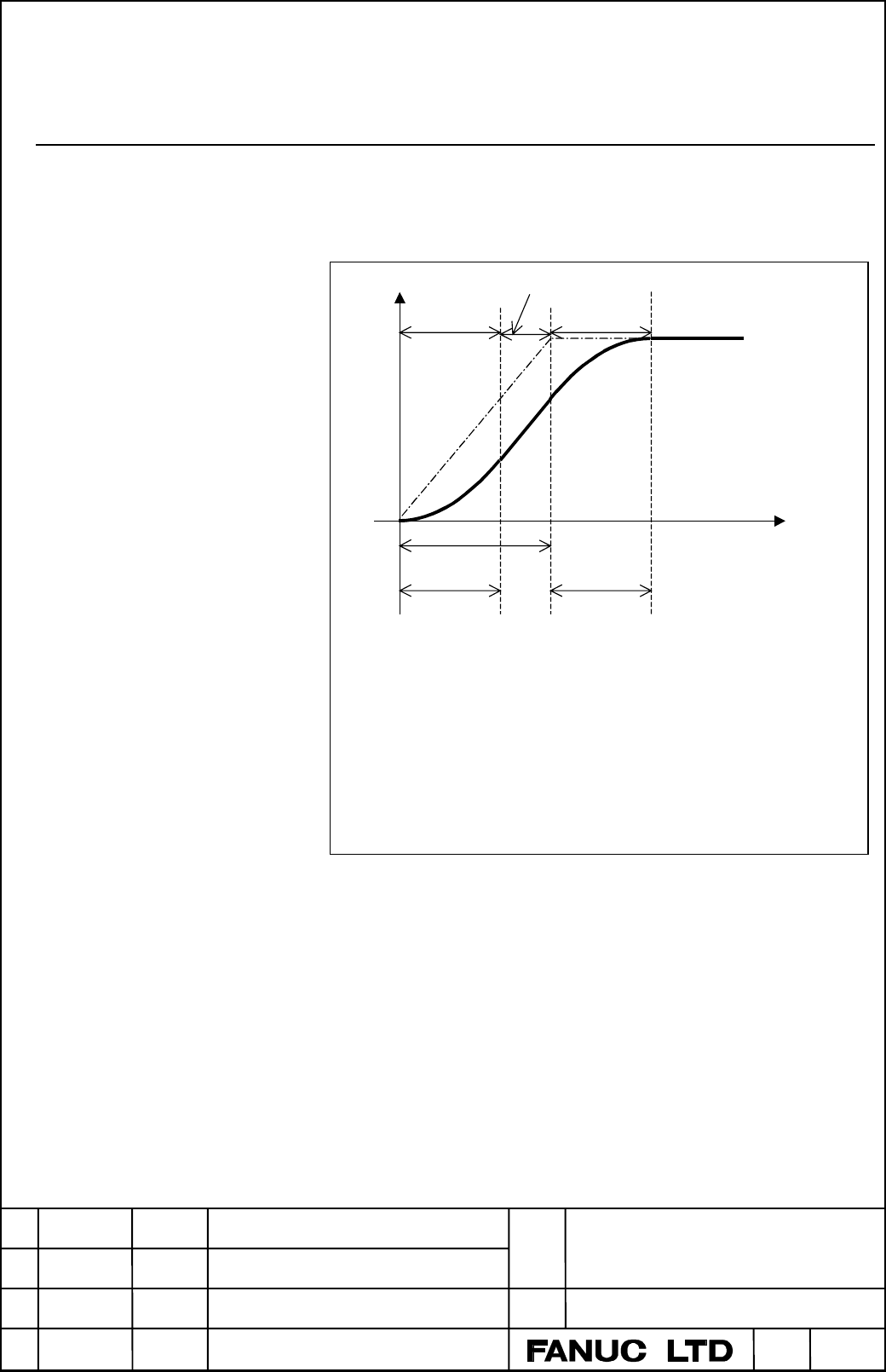

In Look-ahead bell-shaped acceleration/deceleration before

interpolation, the speed during acceleration/deceleration is as

shown in the figure below.

T1: Time determined from the specified speed and the specified acceleration

Specified acceleration:

In case of AI contour control (AICC)

and AI nano contour control (AI nanoCC)

Parameter No.1770/Parameter No.1771

In case of AI High precision contour control (AI-HPCC)

and AI nano High precision contour control (AI-nanoHPCC)

Parameter No.8400/Parameter No.8401 (or No.19510)

T2: Acceleration change time

In case of AICC and AI nanoCC : Parameter No.1772

In case of AI-HPCC and AI-nanoHPCC : Parameter No.8416

Specified

speed

Speed

Non-linear

acceleration/deceleration

Non-linear

acceleration/deceleration

Linear

acceleration/deceleration

T2 T2

Time

Fig. 1

The time T1, shown above, varies with the specified speed. If

the specified speed is low, the speed will be as shown below,

causing linear acceleration/deceleration not reaching the

specified acceleration.
