B–63002EN/01

7. COORDINATE SYSTEMS

NC FUNCTION

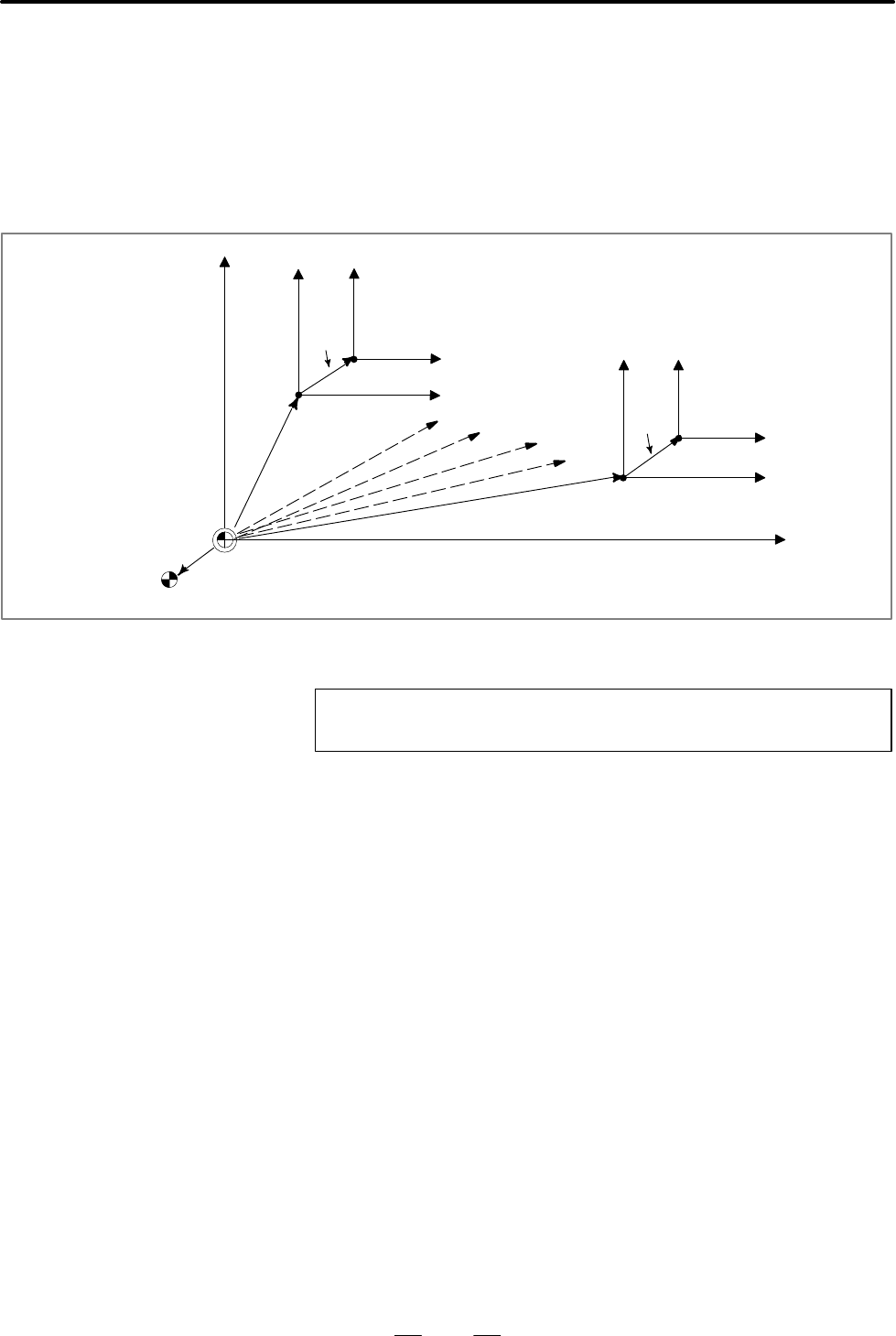

With G52 commanded, the local coordinate system with the commanded

position as zero point can be set. Once the local coordinate system is set,

values specified in subsequent move commands are regarded as

coordinate values on that coordinate system. Coordinates once set is

valid till a new G52 is commanded. This is used when, for example,

programming of a part of the workpiece becomes easier if there is a zero

point besides the workpiece coordinates’ zero point.

G55

G56

G57

G58

Reference position

Value set by

parameter

(Local coordinate

system)

Workpiece coordi-

nate system 1 (G54)

Workpiece

zero point off-

set value

(Local coordinate

system)

Workpiece coordi-

nate system 6 (G59)

(Machine coordinate system)

Zero point of machine coordinate system

G52 _ ;IP

When local coordinate system is set, local coordinate system 1 - 6,

corresponding to workpiece coordinate system 1 - 6 is set. Distance

between zero points are all the same preset value.

If G52 IP0; is commanded, local coordinate system is canceled.

7.3

LOCAL COORDINATE

SYSTEM (G52)

Format

Explanations
