9. SPINDLE FUNCTIONS

NC FUNCTION

107

Up to three spindles can be controlled. The three spindles are called the

first, second, and third spindles. The first and second spindles are made

up of serial interface spindles, and the third spindle is of an analog

interface spindle. (The second or third spindle may be omitted from the

configuration.)

A spindle speed is specified with a 5-digit numeric value following S.

This command functions on the spindle selected by spindle selection

signals (SWS1 to SWS3). More than one spindle can be selected so that

they can be rotated at the same time by specifying the same command.

Each spindle holds a specified command (spindle speed). When the

spindle is not selected by the spindle selection signal, the spindle rotates

at the held spindle speed. By using this feature, the spindles can be rotated

at different speeds at the same time. For each spindle, a signal to stop

spindle rotation is provided (*SSTP1 to *SSTP3). With these signals,

unnecessary spindles can be placed in the stopped state.

Feedback pulses from the position coders connected to the first and

second spindles can be input to the CNC to perform threading and feed

per rotation. One of the position coders connected to the first and second

spindles is selected by a signal. The feedback pulse from the selected

coder is then input to the CNC. From the third spindle, no feedback pulse

can be input.

The multi–spindle control functions of the M and T series differ as

follows:

 For the M series, multi–spindle control is possible only when spindle

gear selection type T is specified.

 For the M series, rigid tapping spindle selection signals (RGTSP1,

RGTSP2, and RGTSP3) cannot be used.

 When two–path control is performed with the M series, spindle

commands and position coder feedback signals cannot be changed

between the paths (spindle command select signals SLSPA and

SLSPB, and spindle feedback select signals SLPCA and SLPCB are

not supported).

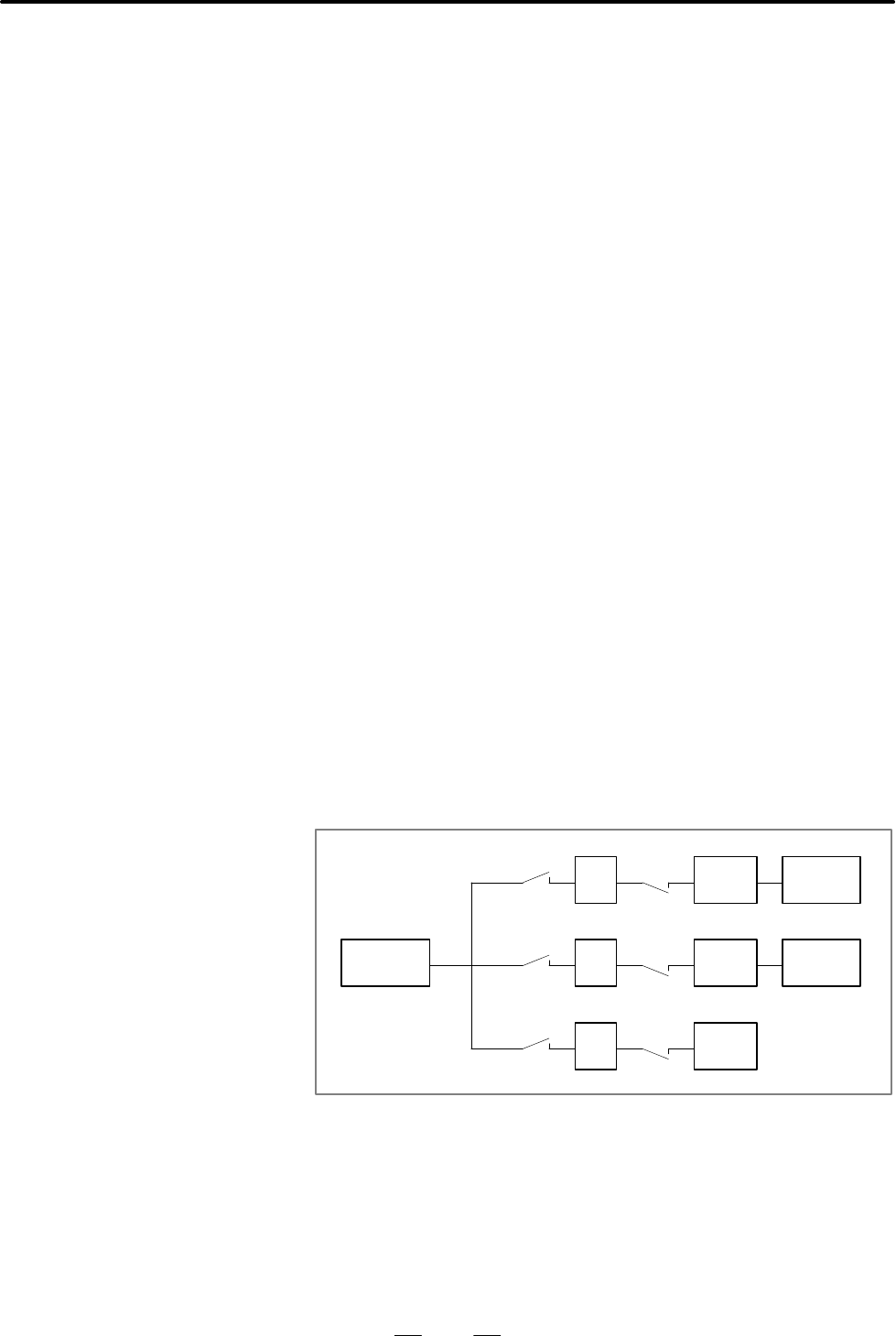

SWS1

SWS2

SWS3

*SSTP1

*SSTP2

*SSTP3

command

Hold

1st

spindle

Position

coder

Hold

2nd

spindle

3rd

spindle

Position

coder

9.11

MULTI–SPINDLE

CONTROL
