Series 16/18/21/20/160/180/210i Descriptions Page 505

Descriptions

Page of 536

/ 536

2/2

PAGE

EDT.

DATE

DESIGN

DESCRIPTION

TITLE

No.

FANUC Series 16i/18i/21i/20i/160i/180i/210i-

MODEL A DESCRIPTIONS

Concerning the addition of

Optimum Torque acceleration/deceleration

B-63002EN/02-2

01 01.09.06 Newl

istered

Optimum Torque acceleration/deceleration (M Series)

General

This function enables acceleration/deceleration in accordance with the torque characteristics

of the motor and the characteristics of the machines due to its friction and gravity and

performs linear type positioning with optimum acceleration/deceleration during AI high

precision contour control mode or AI nano high precision contour control mode.

Usually, because of the friction of the machine, gravity, the torque characteristics of the

motor, and other factors, the acceleration/deceleration performance (torque for

acceleration/deceleration) is different with direction of movement, acceleration or

deceleration. In this function, acceleration pattern of rapid traverse for the following

situations, plus movement and acceleration, plus movement and deceleration, minus

movement and acceleration, minus movement and deceleration can be set into parameters

according to the torque for acceleration/deceleration of each situation.

Acceleration/deceleration can be performed according to these parameter setting, so that the

most of the capability of the motor can be used and positioning time can be reduced.

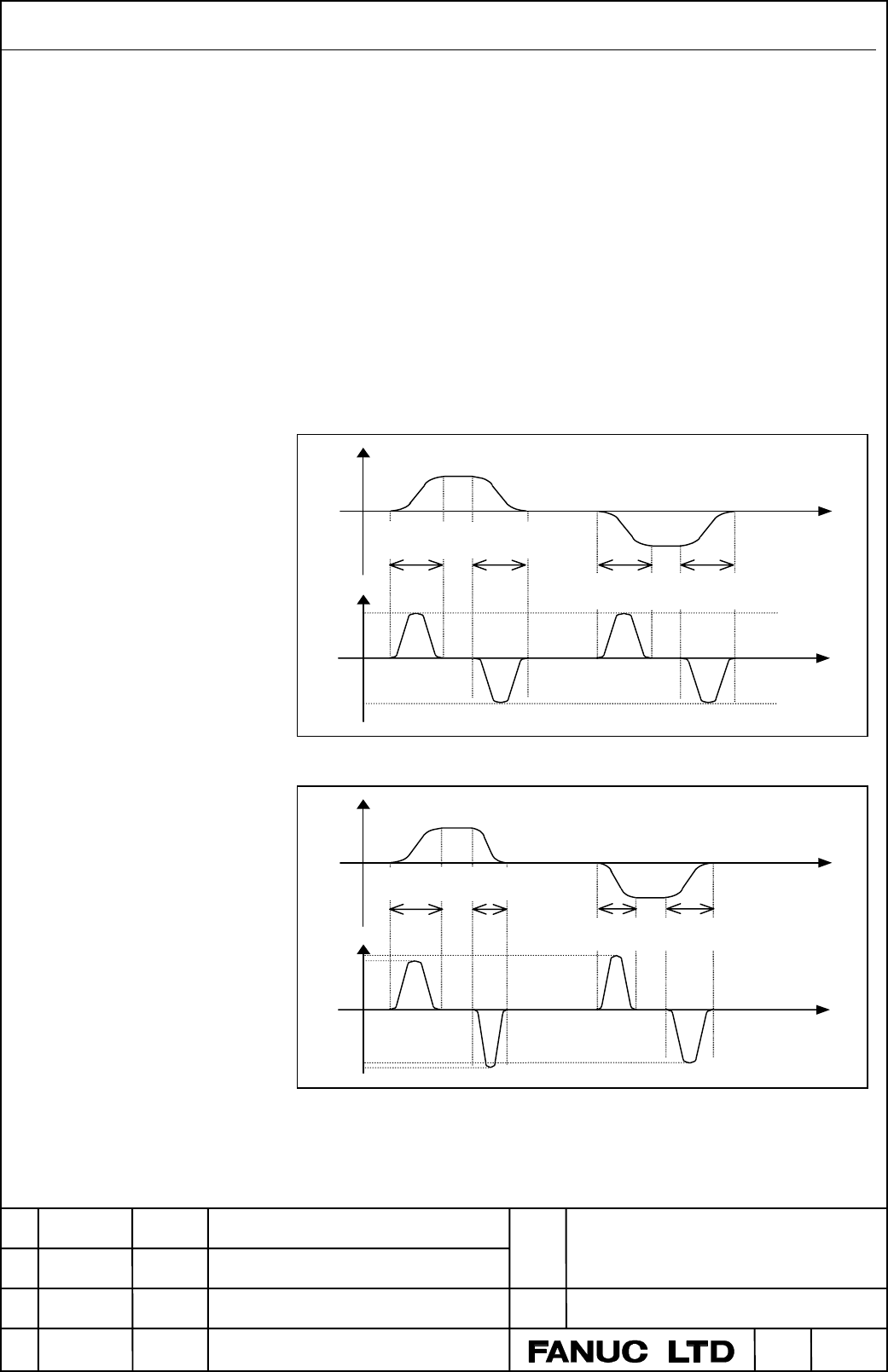

Speed

Acc/Dec pattern is the same way in each condition.

Acceleration

and

+ m ove

Deceleration

and

+ m ove

Deceleration

and

- m ove

Acceleration

and

- m ove

Tim e

Fig. (a) Conventional acceleration/declaration

Speed

Acc/Dec pattern can be changed in each condition.

Acceleration

and

+ m ove

Deceleration

and

+ m ove

Acceleration

and

- m ove

Deceleration

and

- m ove

Tim e

Fig. (b) Acceleration/deceleration with this function
