24. AUTOMATIC OPERATION

NC FUNCTION

277

While a tape is running, a program input from an I/O device connected

to the reader/punch interface can be executed and stored in memory.

Similarly, a program stored in memory can be executed and output

through the reader/punch interface at the same time.

With the retrace function, the tool can be moved in the reverse direction

(reverse movement) by using the REVERSE switch during automatic

operation to trace the programmed path. The retrace function also enables

the user to move the tool in the forward direction again (forward return

movement) along the retraced path until the retrace start position is

reached. When the tool reaches the retrace start position, the tool resumes

movement according to the program.

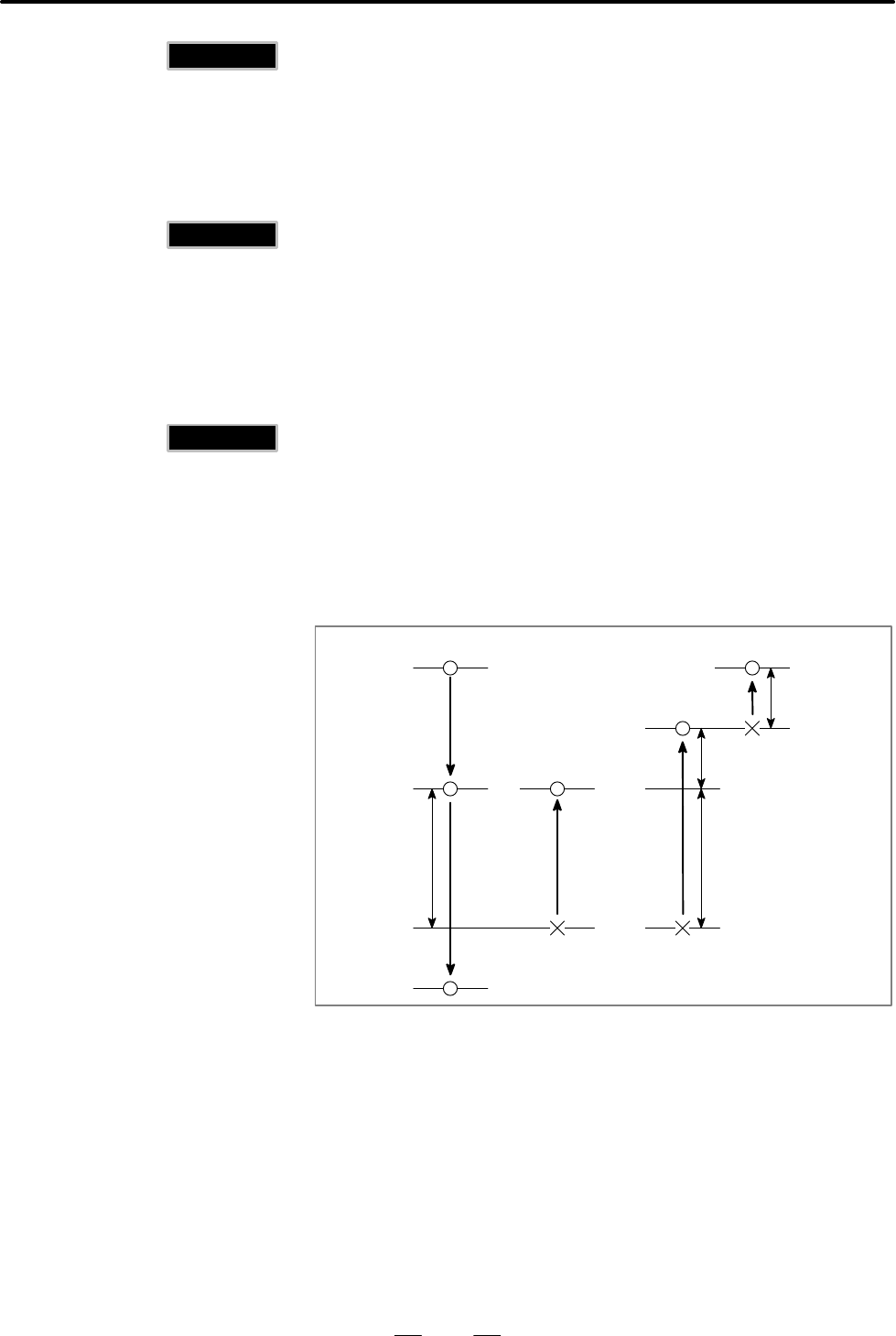

When rigid tapping is stopped, either by an emergency stop or by a reset,

the tap may cut into the workpiece. The tap can subsequently be drawn

out by using a PMC signal. This function automatically stores

information relating to the tapping executed most recently. When a tap

return signal is input, only the rigid tapping cycle return operation is

executed, based on the stored information. The tap is pulled toward the

R point. When a return value  is set in a corresponding parameter, the

pulling distance can be increased by .

L L

Initial point

2nd return

completion

point

1st return

completion

point

R point

Return

completion

point

Center of

tapping

Z point (α = 0) (when α is set)

24.9

SIMULTANEOUS

INPUT AND OUTPUT

OPERATIONS

(AT 1–PATH CONTROL)

(M series)

M series

24.10

RETRACE FUNCTION

(M series)

M series

24.11

RIGID TAPPING

RETURN (M series)

M series
