23. MANUAL OPERATION

B–63002EN/01

NC FUNCTION

266

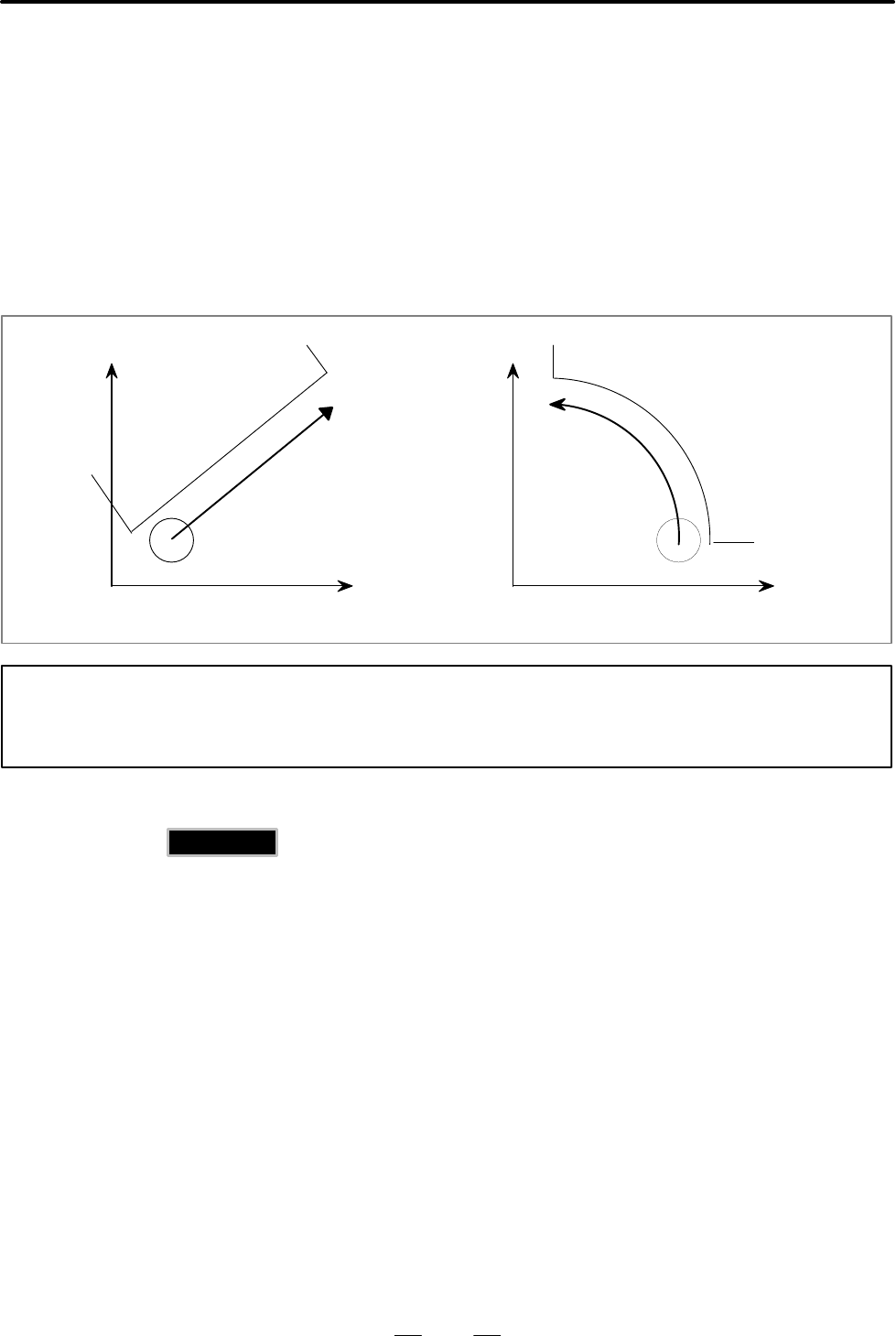

In manual handle feed or jog feed, the following types of feed operations

are enabled in addition to the feed operation along a specified single axis

(X–axis, Y–axis, Z–axis, and so forth) based on simultaneous 1–axis

control:

 Feed along a tilted straight line in the XY plane (M series) (linear feed)

or in the ZX plane (T series) (linear feed) based on simultaneous

2–axis control

 Feed along a circle in the XY plane (M series) (circular feed) or in the

ZX plane (T series) (circular feed) based on simultaneous 2–axis

control

Tool

Workpiece

Y or X Y or X

X or Z

Workpiece

Tool

<<Linear feed>> <<Circular feed>>

NOTE

The X–axis and Y–axis (M series) or Z–axis and Xaxis (T series) must be the first controlled

axis and second controlled axis, respectively.

For execution of rigid tapping, set rigid mode with MDI mode, then

switch to handle mode and select the tapping axis and move a manual

handle. Manual rigid tapping is available when parameter is set.

The rotation direction of the spindle in manual rigid tapping is determined

by a specified tapping cycle G code and the setting parameter.

23.9

MANUAL

LINEAR/CIRCULAR

INTERPOLATION

(ONLY FOR ONE

PATH)

23.10

MANUAL RIGID

TAPPING (M series)

M series
