17. MEASUREMENT FUNCTIONS

NC FUNCTION

209

By installing the touch sensor and by manually making the tool contact

the touch sensor, it is possible to set the offset amount of that tool

automatically in the tool offset amount memory. It is also possible to set

the work coordinate system shift amount automatically.

The touch sensor has contact faces in two directions along each axis, and

outputs the following four signals by contact detection. These signals are

input to CNC as tool compensation value writing signals.

The contact faces are to be selected according to the shape of the nose of

the tool to be measured.

 +MIT1 (+MITX) :

Contact the (+) contact face of the X axis

(Contact in the X+ direction)

 –MIT1 (–MITX) :

Contact the (–) contact face of the X axis

(Contact in the X- direction)

 +MIT2 (+MITZ) :

Contact the (+) contact face of the Z axis

(Contact in the Z+ direction)

 –MIT2 (–MITZ) :

Contact the (–) contact face of the Z axis

(Contact in the Z- direction)

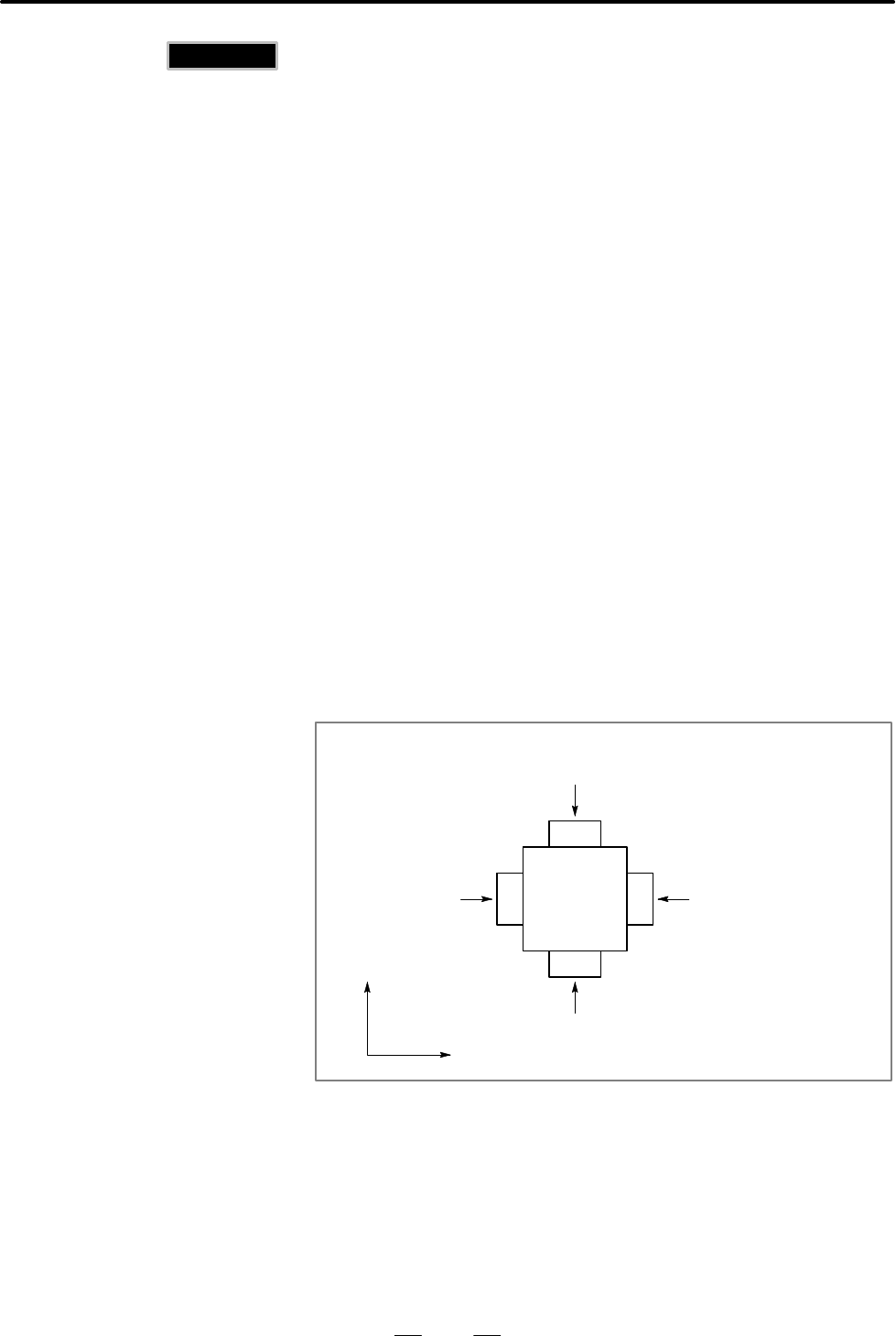

(–) contact face of X axis

(–MITX)

(–) contact face of Z axis

(–MITZ)

(+) contact face of X axis

(+MITX)

(+) contact face

of Z axis

(+MITZ)

17.10

TOOL

COMPENSATION

VALUE MEASURED

VALUE DIRECT INPUT

B (T series)

T series

Explanations

 Touch sensor
