21. AXES CONTROL

B–63002EN/01

NC FUNCTION

248

For T series, even if the X axis is not vertical to the Z axis (for T series,

the Y axis not vertical to the Z axis), they are assumed to form a

orthogonal coordinate system, simplifying programming. The movement

of each axis is automatically controlled according to the slant angle.

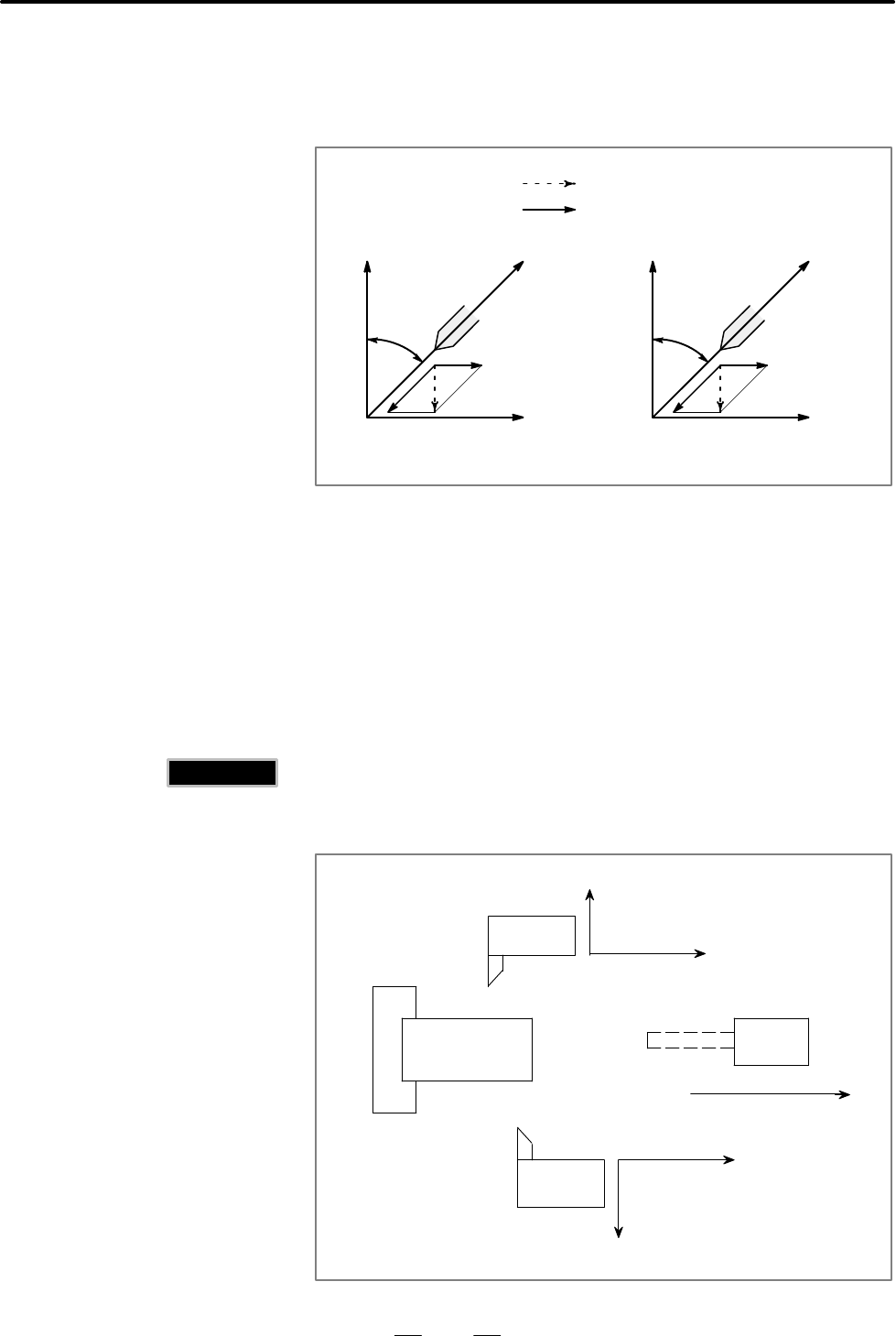

X’

Y’

For T series For M series

Command

Machine movement

For the ordinary angular axis control function of the T series, the X–axis

is always used as the angular axis, while the Z–axis is always used as the

perpendicular axis. (For the M series, the Y–axis is always used as the

angular axis, while the Z–axis is always used as the perpendicular axis.)

With arbitrary axis angular axis control, however, any axes can be

specified as the angular and perpendicular axes, by specifying parameters

accordingly.

This function sets an axis (B–axis) independent of the basic controlled

axes X

, Z

, X

, and Z

and allows drilling, boring, or other machining

along the B–axis, in parallel with the operations for the basic controlled

axes. The X

and Z

axes can be used in two–path control mode.

Workpiece

Third

tool post

First

tool post

Second

tool post

21.13

SLANTED AXIS

CONTROL

21.14

ARBITRARY AXIS

ANGULAR AXIS

CONTROL

21.15

B–AXIS CONTROL

(T series)

T series
