27. DISPLAYING AND SETTING DATA
B–63002EN/01
NC FUNCTION
300
In addition to two-dimensional drawings, isometric projection
drawings and biplanar drawings can be created.

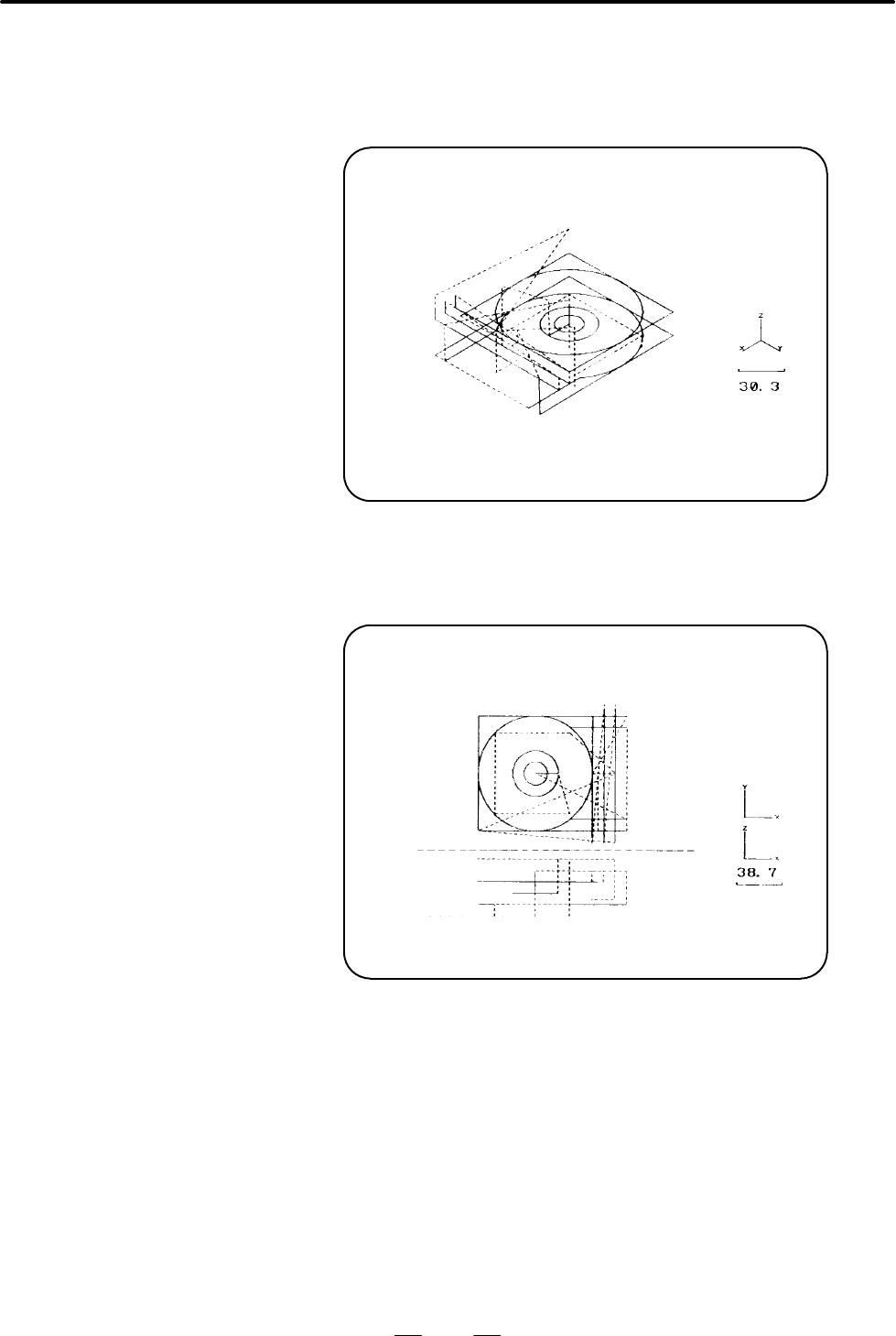

Isometric projection drawing
PATH GRAPHIC (EXECUTION) O1000 N00630
S 0 T0000
MDI **** *** *** 09:36:48
[ AUTO ][ START ][ STOP ][REWIND ][ ERASE ]
Because the current position of a tool is marked on the drawn tool path,
the progress of machining can be monitored accurately.
Biplanar drawing
PATH GRAPHIC (EXECUTION) O1000 N00630
S 0 T0000
MDI **** *** *** 09:36:48
[ AUTO ][ START ][ STOP ][REWIND ][ ERASE ]
