Series 16/18/21/20/160/180/210i Descriptions Page 405

Descriptions
B–63002EN/01
3. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
MACHINING CENTERS
AUTOMATIC PROGRAMMING
FUNCTION
384

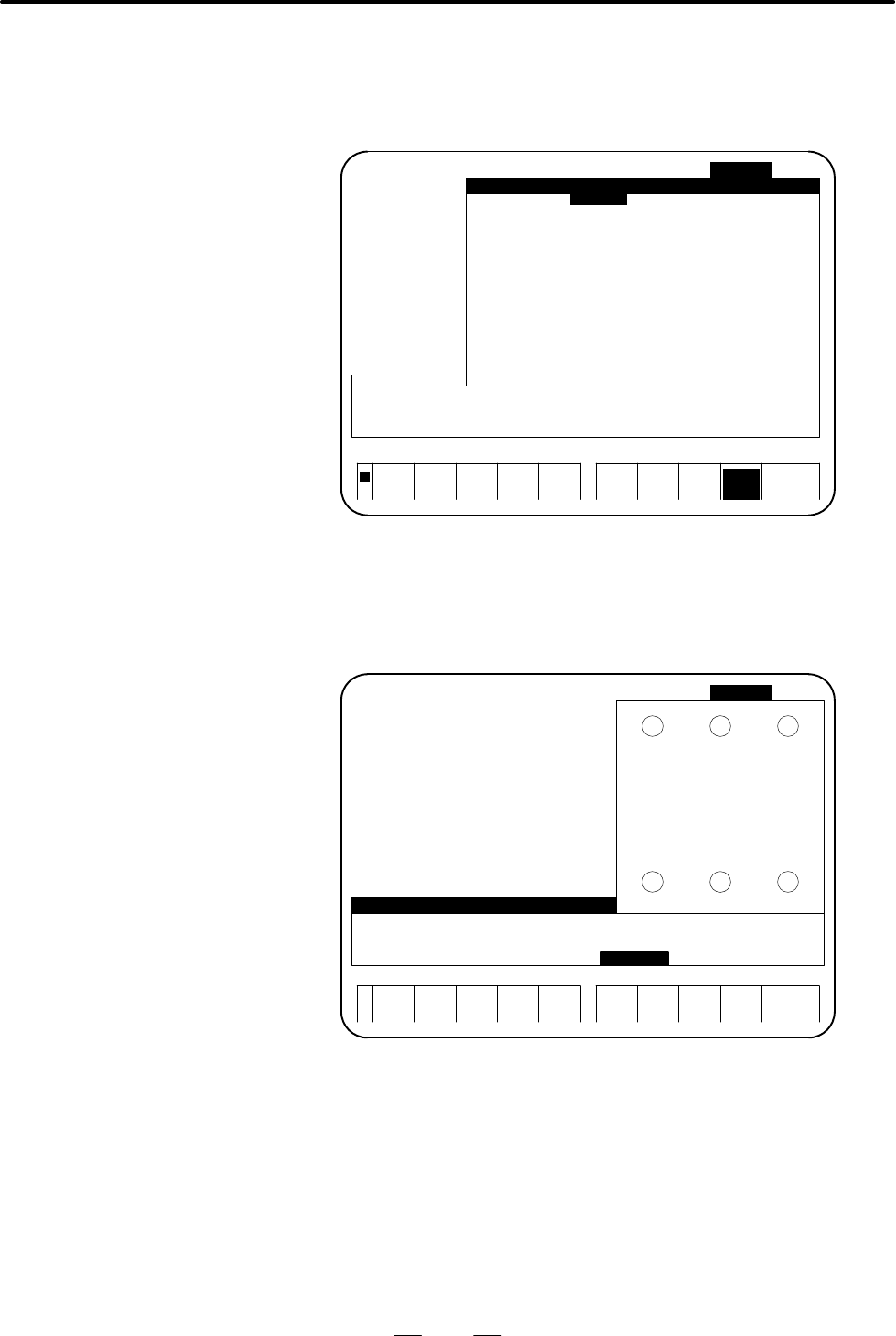

Tool data, cutting condition data, and pre–tool data can be input easily by
following the instructions displayed on the screen.
Once data is input, necessary data for machining is determined
automatically.
HOLE :TAPPING
GROUP COPY :YB= UNUSED RETURN POINT: I=
WK SURFACE : B= 0. FEEDRATE CHG:YC= UNCHANGE
TAP DEPTH : V= 20. KIND OF TAP : A= NORMAL
CHAMFER DIA : C= TOOL ID NO. : T= 25.
INPUT THE TOOL ID NUMBER OF THE TOOL TO BE USED.
F.S. WINDOW
AUTO CHANCE
PROGRAM O1000 PAGE:01/ CREATING
NO. CYCLE P
001 AUXILIARY I
002 FACING F
F
FACING S
P
<
CUTTING DATA1/2 PROCESS4 PROCESS3 PROCESS2 PRO-
CESS1
TOOL ID NO.T= 25. 14. 12. 3.
TOOL NAME Q= TAP DRILL DRILL CENT DRILL
TOOL DTA E= 10. 8. 4. 3.
H OFFSET NO. H= 125. 114. 112. 103.
R POINT R= 10. 3. 3. 3.
Z POINT Z= -20. -29.6 -24.8 -3.
DWELL D= 0. 0. 0. 0.
COOLANT M=COOLNT M7 COOLNT M7 COOLNT M7 COOLNT M
7
SPINDL SPEED S= 254. 3180. 5000. 4240.
FEED RATE F= 280. 318. 50. 42.
SPEED OFFST YD= * * * *
SPEED CHG PT YE= * * * *
PITCH J= 1.1 * * *
TOOL GUIDAN INPUT
INFORM CE END
Input data is indicated graphically, and so checking can be done
immediately. If a data value exceeds an allowable limit, an alarm message
appears on the screen and the cursor appears at the position of the data in
question.
PROGRAM O1000 PAGE:01/ CREATING
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MIL
FACING PREP. FACE MIL
FACING SQUARE BIDIR
PROCESS END
003 HOLE TAPPING CENTER D
TAPPING DRILL
TAPPING DRILL
TAPPING TAP
HOLE PATTERN :PARALLELOGRM
COORDINATES :W= V LENGTH :V= 75. O V ANGLE : C= 90.
X CO–ORD :X= 0. U NUMBER :D= 3. OMIT POINT 1 :YF= *
Y–CO–ORD :Y= 0. V NUMBER :E= 2. OMIT POINT 2 :YG= *
U LENGTH :U= 75. X–U ANGLE :A= 0. OMIT POINT 3 :YH= *
RETURN
Tool/cutting condition/
pre–tool automatic
determination
Immediate checking of
input data
