2. CONVERSATIONAL AUTOMATIC

PROGRAMMING FUNCTION FOR

LATHES

AUTOMATIC PROGRAMMING

FUNCTION

363

Operations with CAP II always begin with the basic menu screen shown

at the following. If the user cannot determine the next operation on a

conversational screen, the user can press the leftmost soft key [ESCAPE]

to return to the display of this basic menu screen.

=== FAPT EXECUTION PROCESS ===

SERECTION OF MATERIAL & SETTING OF BLANK SIZE

INPUT OF PART FUGURE (INPUT OF BLANK FIGTURE)

SETTING OF HOME POSITION/INDEX POSITION

MACHINING DEFINITION

NC DATA PREPARATION

MACHINING SIM-

ULATION

METRIC

END

1234 56

EXEC

*NC SIDE*

O 0000

N 00000

X–AXIS

0.000

Z–AXIS

0.000

S 000000

T 000000

M 000000

When a size is entered, a guide figure can be drawn by pressing the

[HELP] soft key.

*** BLANK AND PART *** 01–01

NO. MATERIAL

1 S45C

MATERIAL NO. MN = 1 2 SOM. . . . . . . . . . . . . . . . . .

STANDARD SURFACE ROUGHNESS NR = 2 3 FC

DRAWING FORMAT DF = 2 4 AL. . . . . . . . . . . . . . .

BLANK FUGURE BF = 1 5 SUS. . . . . . . . . . . . . . . . . .

BLANK SIZE 6 MATERIAL6

DIAMETER D = 100. 7 MATERIAL7. . . . . . . . . . .

8 MATERIAL8

LENGTH L = 85. 9 MATERIAL9. . . . . . . . . . . . .

BASE LINE ZP = 3. 10 MATERIAL10. . . . . . . . . . . . . . . . . . . . .

11 MATERIAL11

12 MATERIAL12

13 MATERIAL13

DEPTH OF CHUCKING ZC = 0. 14 MATERIAL14. . . . . . . . . . .

15 MATERIAL15

16 MATERIAL16

17 MATERIAL17

MM = METRIC

*NC SIDE*

O 0000

N 00000

X–AXIS

0.000

Z–AXIS

0.000

S 000000

T 000000

M 000000

ESCAPE MAT. CURSOR CURSOR NEXT

NAME ↑ ↓ PAGE

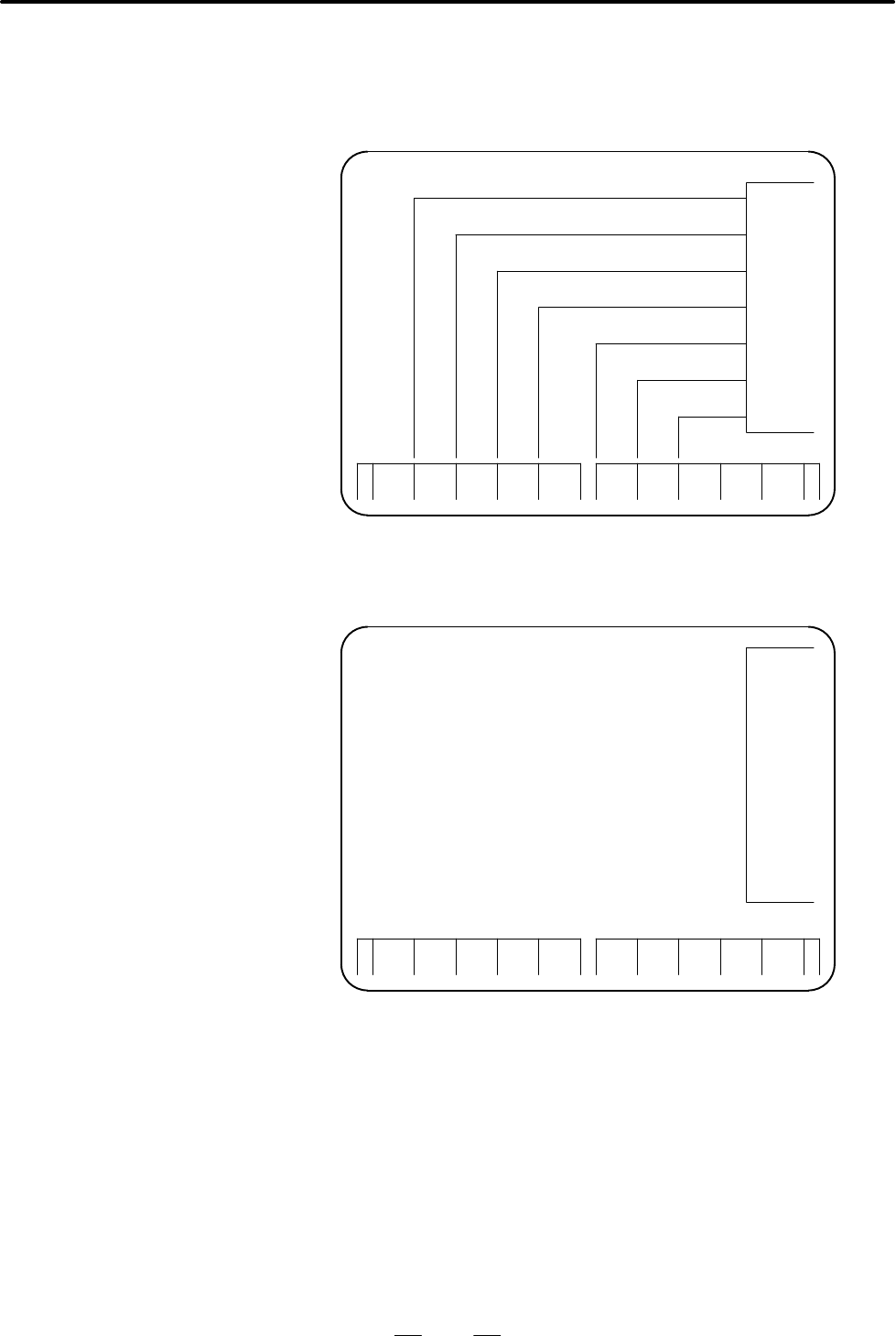

Basic menu screen

Material selection and

blank size setting screen
