1. Fanuc
  2. Series 16/18/21/20/160/180/210i

Series 16/18/21/20/160/180/210i Descriptions Page 387

Descriptions
B–63002EN/01
2. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
LATHES
AUTOMATIC PROGRAMMING
FUNCTION
366

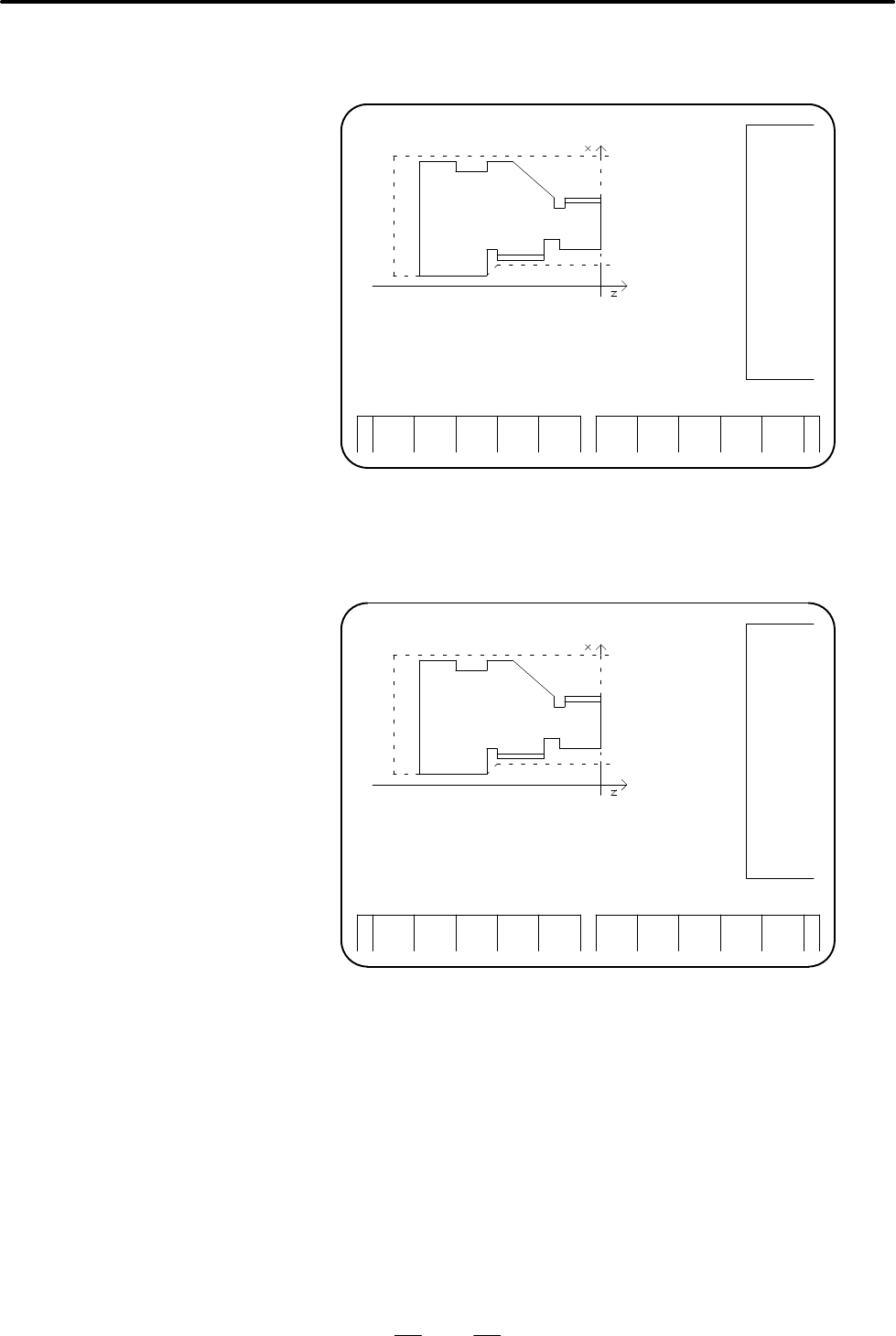

Cutting conditions are input or modified on this screen. The initial values
are set automatically according to the parameters and blank material.
ESCAPE BACK
PAGE
CURSOR CURSOR DRAWNG NEXT
↑↓RANGE PAGE
*** MACHINING DEFINITION *** CUTTING CONDITIONS 04–05
PROC.04 ROUGHING OF OUTER FIGURE T0909 X 150. Z 150.
CLEARANCE CX = 2. CUTTING SPEED V = 145.. . . . . . . .
CZ = 2. FEED RATE F1 = 0.65. . . . . .
FINISH ALLOWANCE TX = 0. F2 = 0.32
TZ = 0. F3 = 0.6
DEPTH OF CUT D = 3. ANOTHER AREA ? CN = 0. . .
RETURN AMOUNT U = 1.. .
CX =_ METRIC
*NC SIDE*
O 0000
N 00000
X–AXIS
0.000
Z–AXIS
0.000
S 000000
T 000000
M 000000
NC data appears, and a tool path is drawn on this screen, allowing the user
to easily check NC data. Switching between animated simulation and tool
path drawing is enabled with a soft key.
NC PROC.
DATA STOP
SINGLE STOP
STEP
*** NC DATA PREPARATION *** O0010
PROC.04 ROUGHING OF OUTER FIGURE T0909 X 71.6 Z 0.46
X77.6Z–22.815F0.6 X71.6Z0.456F0.65
X79.6Z–21.798F0.65
G0Z2.
X66.4
G1Z1.038
X69.6Z–0. 562F0.6
G0X150.:
NC DATA = _ METRIC
*NC SIDE*
O 0010
N 00007
X–AXIS
0.000
Z–AXIS
0.000
S 000000
T 000000
M 000000
Screen for setting
cutting conditions
NC data creation screen
