27. DISPLAYING AND SETTING DATA

B–63002EN/01

NC FUNCTION

298

This function allows display of tool path on the screen, making program

check easier. The following functions are offered.

 Tool path of the machining program can be displayed. Machining

process can be checked just by viewing the tool path drawing on the

screen.

Program check before machining can be done by displaying the

programmed locus on the screen.

 For M system, display is possible with the XY plane, YZ plane, ZX

plane, or isometric; for T system, with the XZ plane.

 Scaling of the screen is possible.

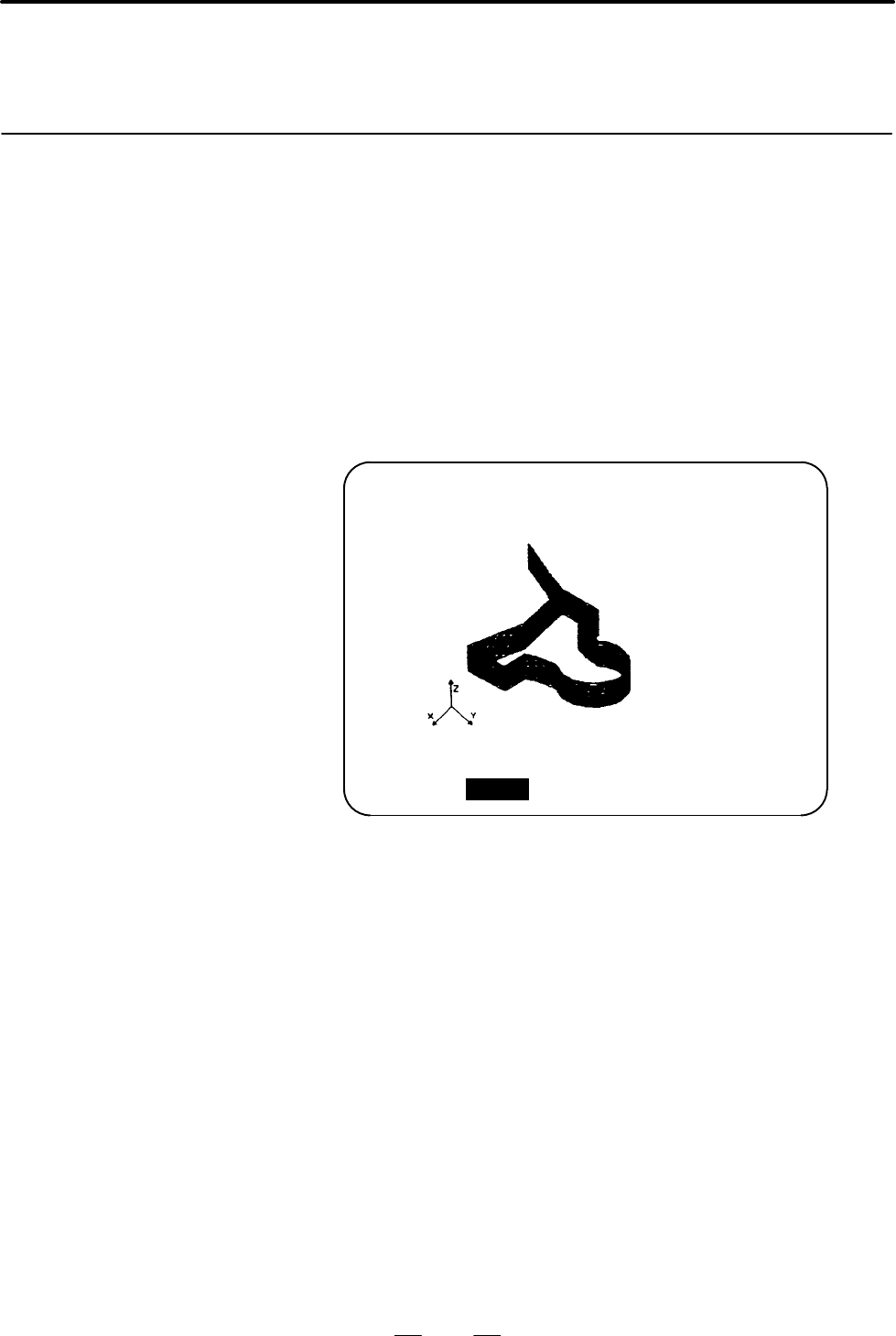

Tool path drawing (M series)

O0001 N00012

X 0.000

Y 0.000

Z 0.000

S 0 T0000

MEM **** *** *** 09:36:48

[ PARAM ][ GRAPH ][ ][ ][ ]

Graphic display of tool path (M series)

27.7

GRAPHIC DISPLAY

FUNCTION

27.7.1

Graphic Display

Function
