Series 16/18/21/20/160/180/210i Descriptions Page 61

Descriptions

Page of 536

/ 536

B–63002EN/01

3. INTERPOLATION FUNCTIONS

NC FUNCTION

Positioning is done with each axis separately (Non linear interpolation

type positioning).

Either of the following tool paths can be selected accroding to bit 1 of

parameter No. 1401.

 Non linear interpolation positioning

The tool is positioned with the rapid traverse rate for each axis

separately. The tool path is normally straight.

 Linear interpolation posioning

The tool path is the same as in linear interpolation (G01). The tool is

positioned within the shortest possible time at a speed that is not more

than the rapid traverse rate for each axis.

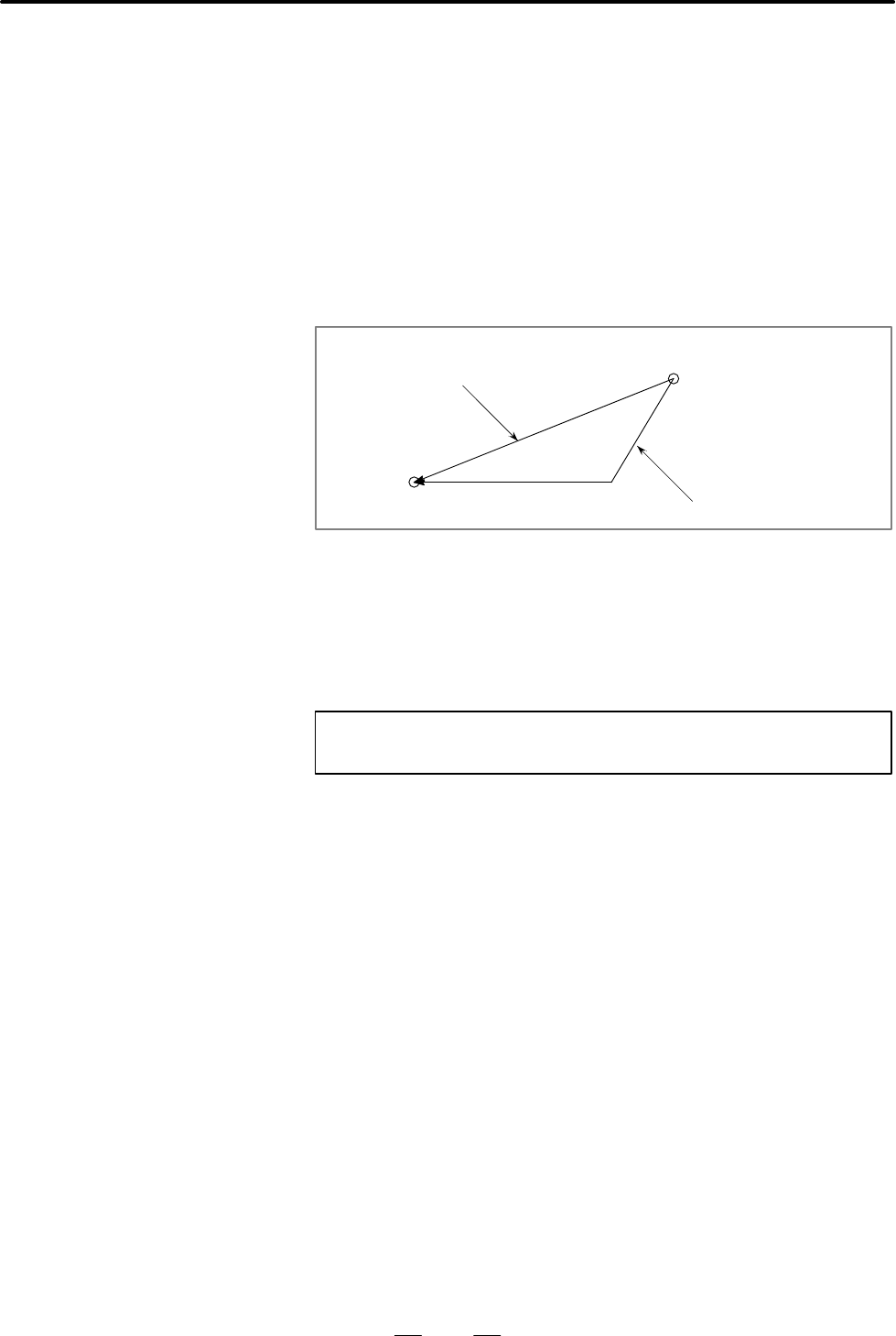

Linear interpolation

positioning

Non linear interpolation

positioning

End position

Start position

It is decelerated, to a stop at the end point, and imposition check is

performed (checks whether the machine has come to the specified

position). The in-position check can be suppressed using a parameter.

Width of imposition can be set as a parameter.

G00 _ ;IP

3.1

POSITIONING (G00)

Format
