B–63002EN/01

21. AXES CONTROL

NC FUNCTION

251

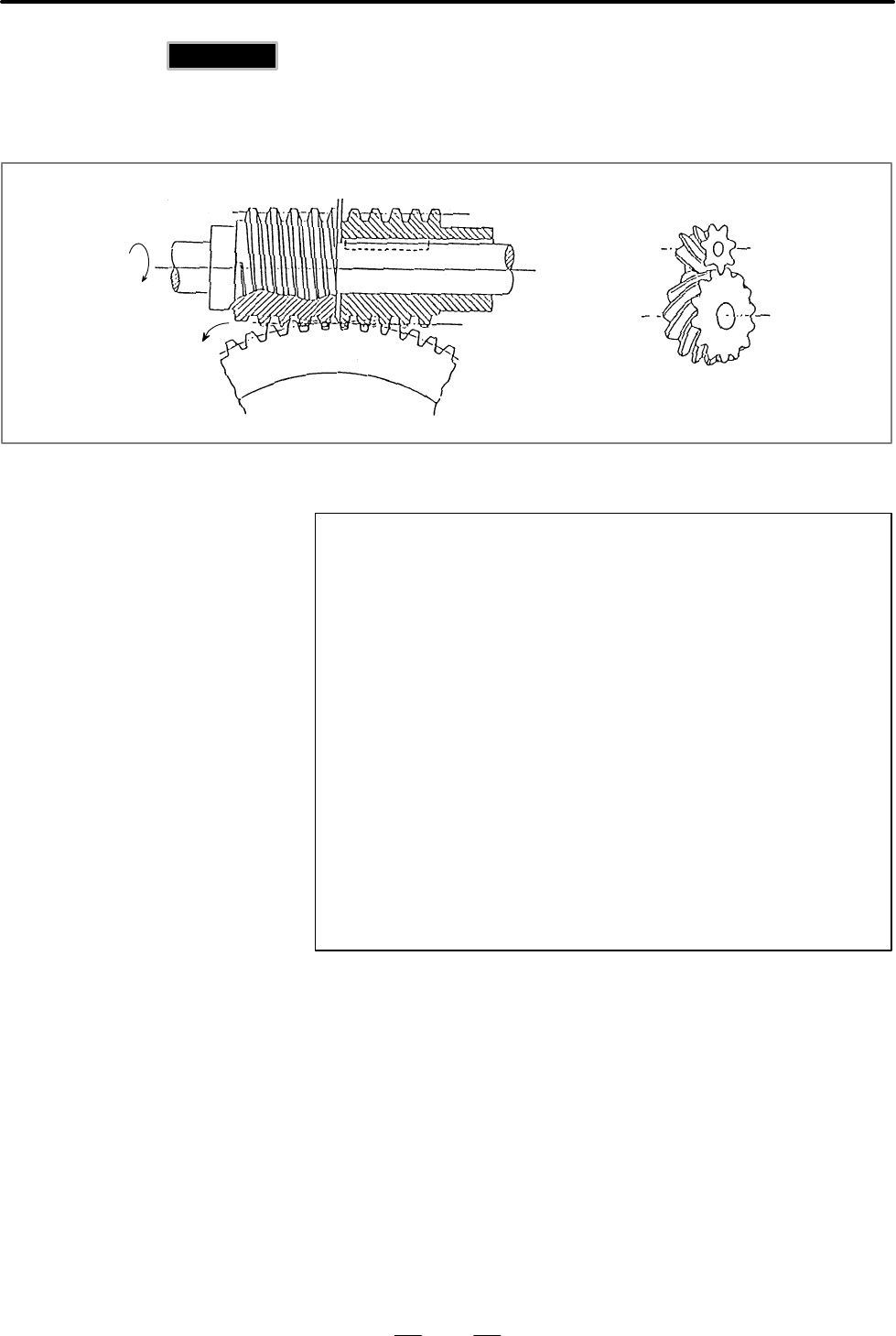

Gears can be cut by turning the workpiece (C–axis) in sync with the

rotation of the spindle (hob axis) connected to a hob.

Also, a helical gear can be cut by turning the workpiece (C–axis) in sync

with the motion of the Z–axis (axial feed axis).

Spindle

C–axis

Gear material

Helical gear

Hob

G81T_L_Q_P_;

T : Number of teeth (Specifiable range: 1 to 5000)

L : Number of hob threads (Specifiable range: 1 to 20 with a sign)

⋅ The sign of L specifies the direction of rotation of the C–axis.

⋅ If L is positive, the C–axis rotates in the positive direction (+).

⋅ If L is negative, the C–axis rotates in the negative direction (–).

Q : Module or diametral pitch

For metric input, specify a module.

(Units: 0.00001 mm, Specifiable range: 0.01 to 25.0 mm)

For inch input, specify a diametral pitch.

(Units: 0.00001 inch

–1

, Specifiable range: 0.01 to 250.0 inch

–1

)

P : Gear helix angle

(Units: 0.0001 deg, Specifiable range: –90.0 to +90.0 deg)

P and Q must be specified when a helical gear is to be cut.

G80 ; Cancels synchronization between the hob axis and C–axis.

21.18

HOBBING MACHINE

FUNCTION (G80, G81)

(M series)

M series

Format
