Series 16/18/21/20/160/180/210i Descriptions Page 93

Descriptions

Page of 536

/ 536

B–63002EN/01

5. FEED FUNCTIONS

NC FUNCTION

F/2

Time

Feedrate

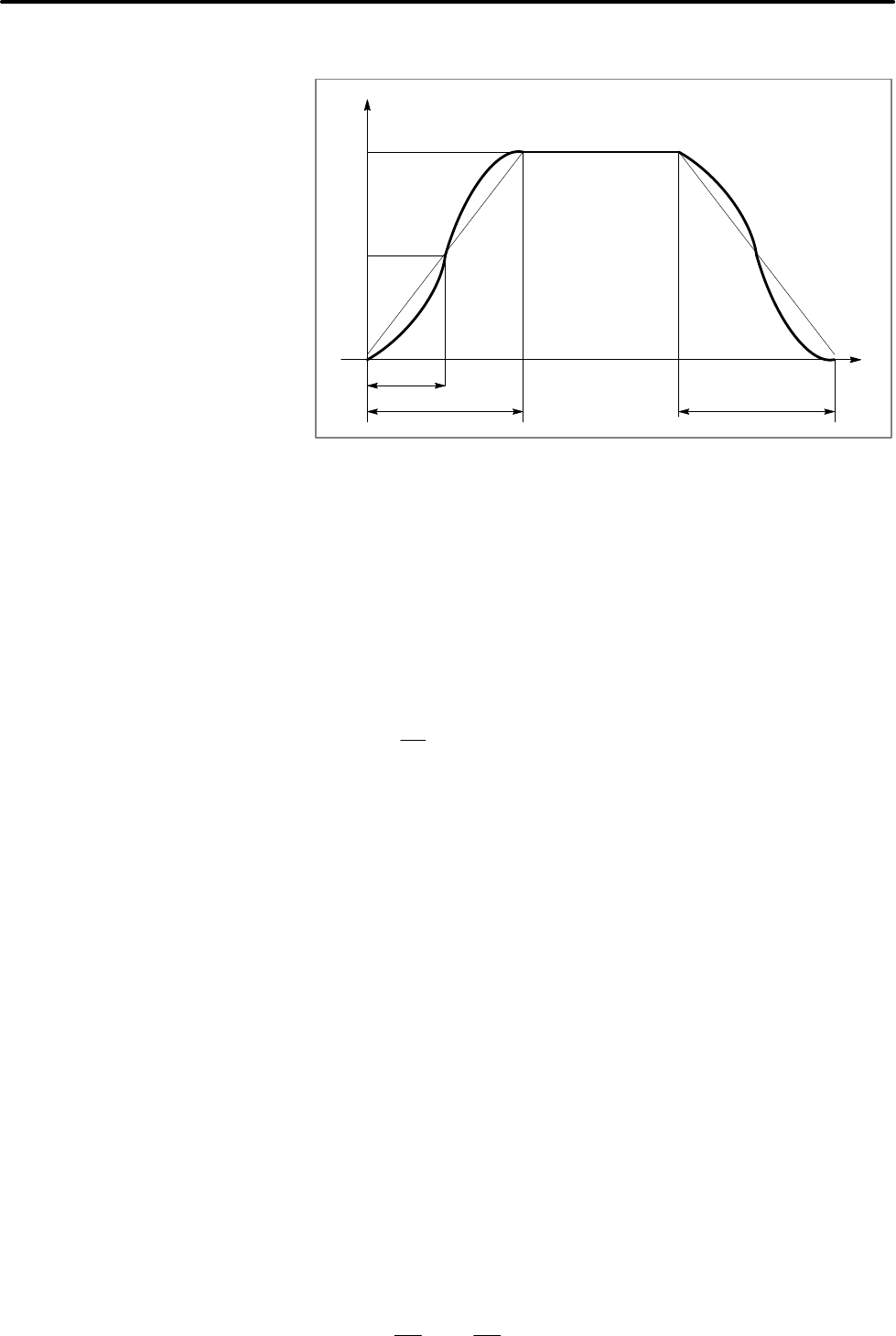

As shown above in the quadratic curve, it is possible to accelerate and

decelerate the cutting feedrate.

When the acceleration and deceleration section are connected, the

composed curve shapes just like a hanging bell. That is why this kind of

acceleration/deceleration is called bell–shaped acceleration/deceleration.

Considering a time constant as Tc (time spent to accelerate from feedrate

0 up to commanded feedrate F or time spent to decelerate from

commanded feedrate F down to feedrate 0), feedrate accelerates up to 1/2

of the commanded feedrate (F/2) for 1/2 of the time constant (Tc/2). The

acceleration/deceleration curve 0A shown in the figure above can be

expressed by the following equation :

f (t) +

The curve AB and 0A are symmetric with respect to point A.

The feature of this acceleration/deceleration is that the feedrate change is

small near feedrate 0 and the commanded feedrate.

5.7

BELL–SHAPED

ACCELERATION/

DECELERATION

AFTER CUTTING

FEED

INTERPOLATION
