7.THREE-DIMENSIONAL MACHINING SYSTEM LASER FUNCTION B-64663EN/01
- 110 -

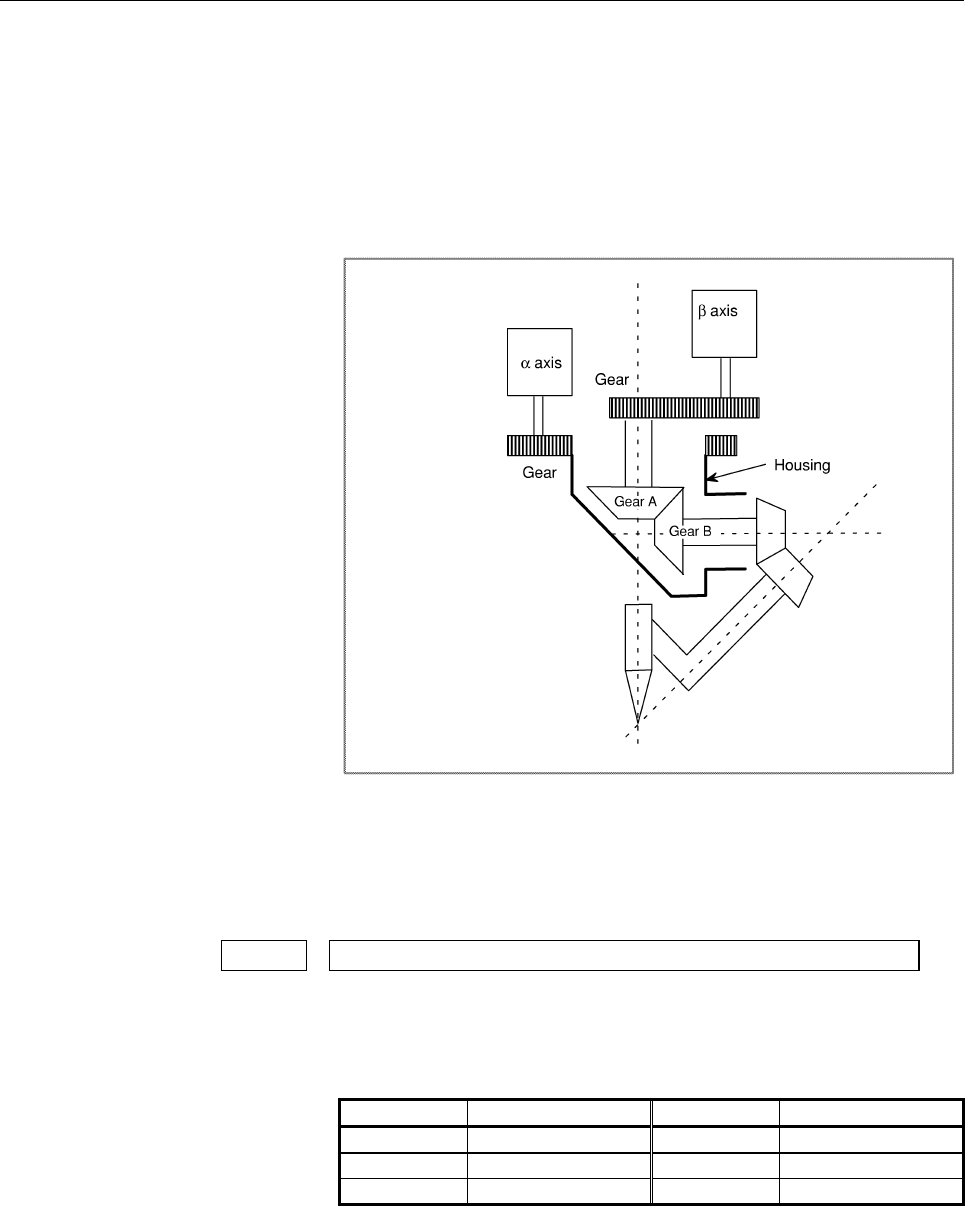

Namely, the α axis is rotated by the command specifying the α axis at
the same time the β axis is rotated.
The interaction control function automatically issues the same
command as the command specifying the α axis for the β axis to
cancel the rotation of the β axis in the nozzle head whose axes are
configured so that the β axis is rotated by the command specifying the
α axis. Polarity is selected by the parameter No. 15602:
W-axis tracing control
The W axis can be added to the 6th axis as a tracing axis.
Parameter
1020 Axis names used in the program
[Data type] Byte axis
Select the names of the 4th and 5th axes from A, B, C, U, and V, and
set the relevant values. When W-axis tracing is selected, select W as
the name of the 6th axis.
Axis name Setting value Axis name Setting value
A 65 U 85
B 66 V 86
C 67 W 87
