B-64663EN/01 LASER FUNCTION 8.CONTROL FUNCTION

- 201 -

- Retrace signal

RVS<G007#0>

[Classification] Input signal

[Function] Starts retracing.

[Operation] If both retry processing mode selection signal (RVSLSR) and

automatic operation stop signal (SPL) are "1", setting the retrace

signal (RVS) to "1" retracts the Z-axis and triggers a retrace. When

retracing ends and the automatic operation stop signal (SPL) becomes

"0" resetting the retrace signal (RVS) to "0" to trigger a cycle start

causes forward tracing.

- Retrace-in-progress signal

RVSL<F082#2>

[Classification] Output signal

[Function] Informs the PMC that the nozzle is moving backward along the

machining path.

[Output condition] This signal becomes “1” when:

- The retrace signal (RVS) becomes "1" to begin retracing.

This signal becomes “0” when:

- The retrace signal (RVS) becomes "0" to begin forward tracing

(including restarted forward tracing).

- The nozzle is at a stop because there is no block to retrace.

During retracing, the M, T, and second auxiliary functions are

executed in the same way as during a forward trace. If this is

undesirable, use the retrace-in-progress signal (RVSL) to direct the

PMC to perform its own processing.

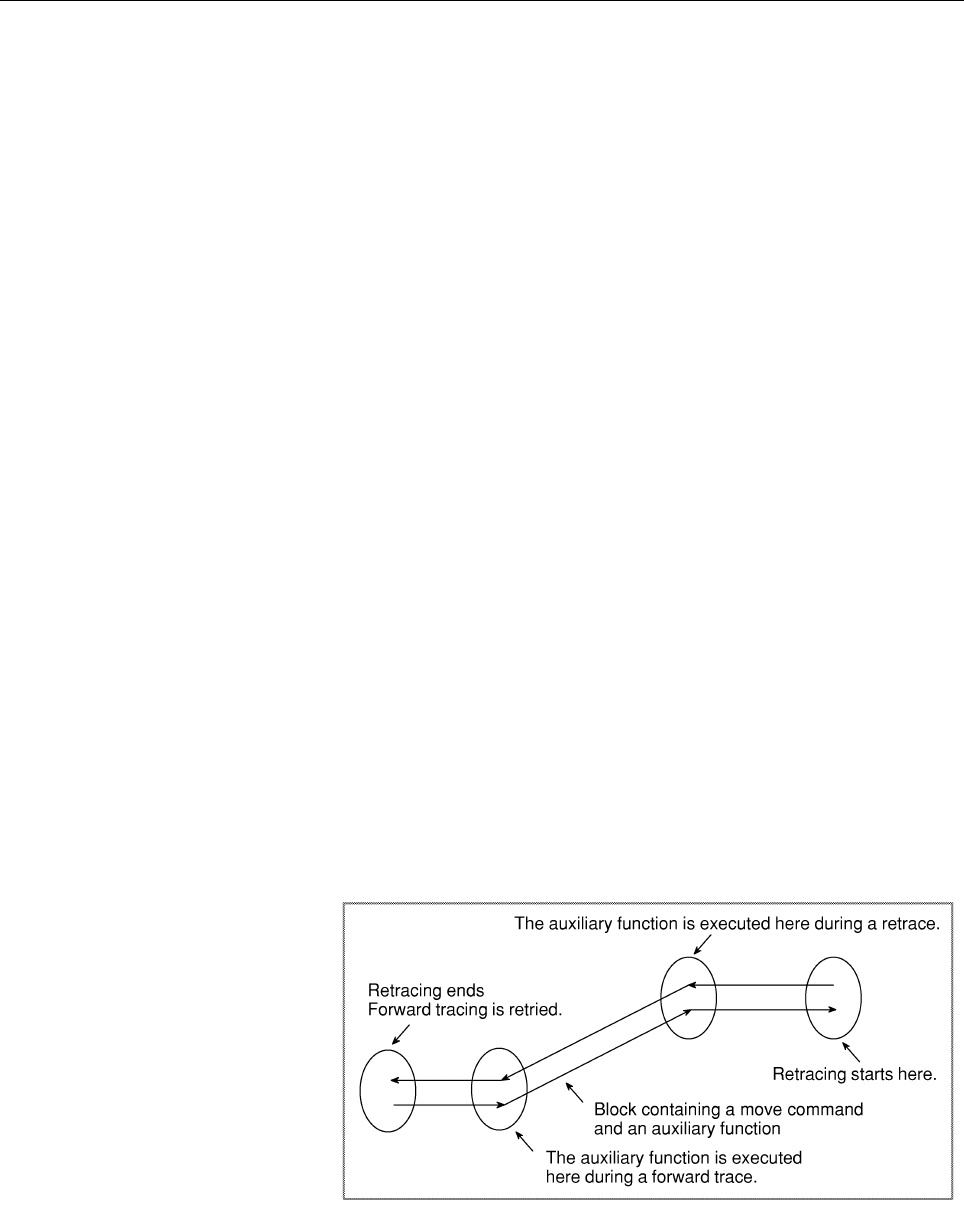

If the M, T, or second auxiliary function is in the same block as a

move command, the output position of the code and strobe signals

differs between forward tracing and retracing. So, use this signal and

the distribution end signal (DEN), as required, to direct the PMC to

perform its own processing.
