Series 16i/160i-LB Connection manual (Function) Page 96

Connection manual (Function)
5.LASER OUTPUT CONTROL LASER FUNCTION B-64663EN/01
- 82 -
5.6.2 Laser Processing Signal
Overview
The laser processing signal is output for the time between assist gas
output being started and tracing control being cancelled.
Signal
- Laser processing signal
LPRC<F222#4>
[Classification] Output signal
[Function] Notifies the PMC of the time between assist gas output being started
and tracing control being cancelled.

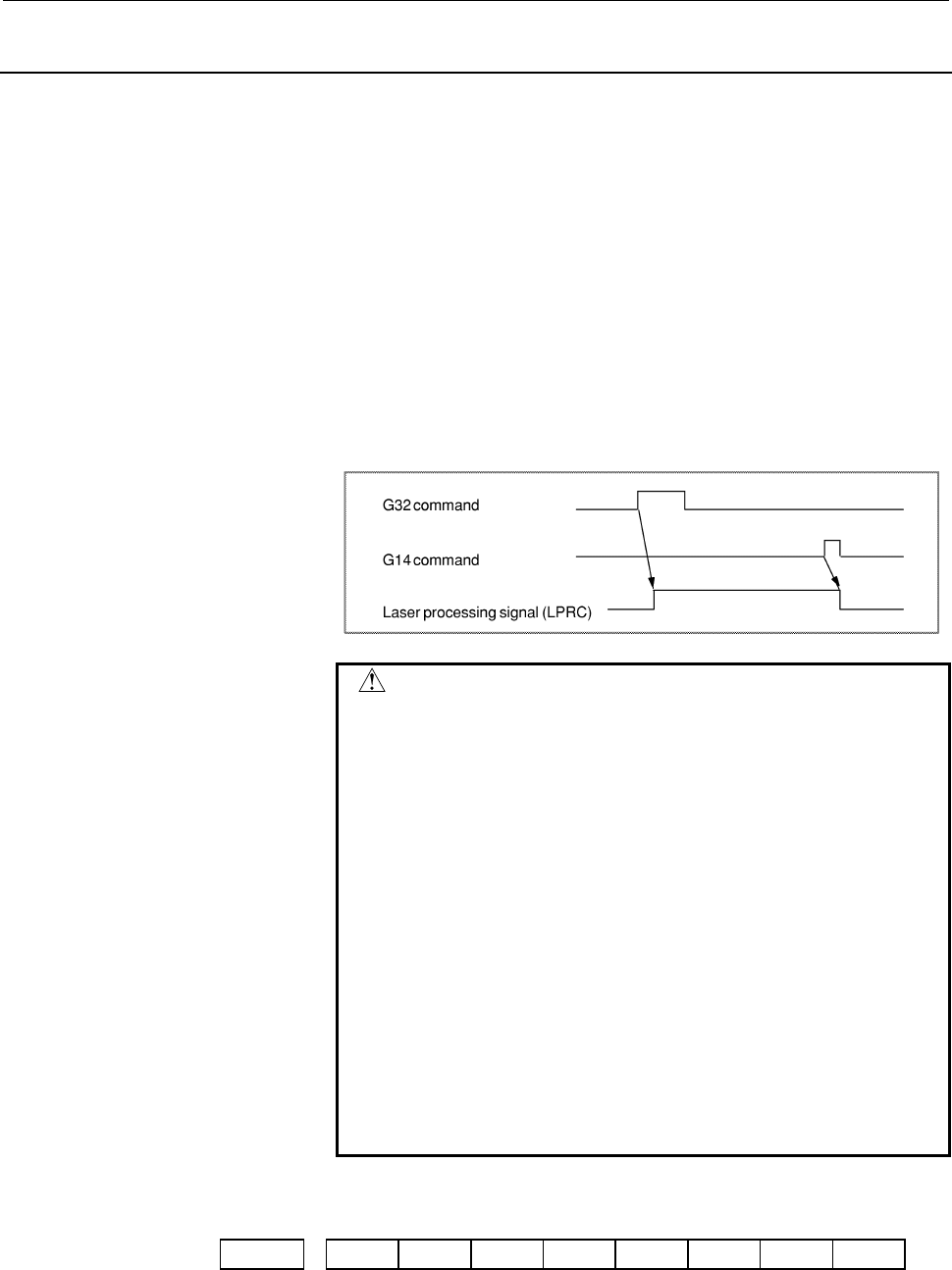

[Output condition] When assist gas output is turned on by G32, the CNC sets the laser
processing signal (LPRC) to 1. When tracing is cancelled by G14, the
CNC sets the laser processing signal (LPRC) to 0.
CAUTION
1 If feeding is placed on hold during laser processing,
the laser processing signal (LPRC) remains to be
"1".
2 The laser processing signal (LPRC) remains to be
"1" during single-block operation.
3 If the program is terminated without issuing G14,
the laser processing signal (LPRC) remains to be
"1".
4 A reset turns the laser processing signal (LPRC) to
"0".
5 If the assist gas is not output when G32 is
executed (during machine locked state, dry run, or
simultaneous occurrence of shutter locked and
beam locked states), the laser processing signals
(LPRC) becomes "0".
6 If an alarm occurs, the laser processing signal
(LPRC) becomes "0".
Signal address
#7 #6 #5 #4 #3 #2 #1 #0
F222 LPRC
