7.THREE-DIMENSIONAL MACHINING SYSTEM LASER FUNCTION B-64663EN/01
- 162 -
Handle feed
When the signal for selecting an axis for manual handle feed, HX, is
turned on, a feed can be performed in the direction of the ±Xh axis
using the manual pulse generator.
In the same way, the ±HY and ±HZ signals enable travel in the
direction of the ±Yh and ±Zh axes.
When hand coordinate system mode select signal HNDCD is 1, handle
feeds using H4 (4th axis: α axis) and H5 (5th axis: β axis) are not
possible.
To perform handle feeds of the α and β axes, the HNDCD signal must
be set to 0. When the signal for selecting an axis for manual handle
feed, H4 or H5, is selected, the machine tool can easily be operated by
coding a ladder program that sets the HNDCD signal to 0.

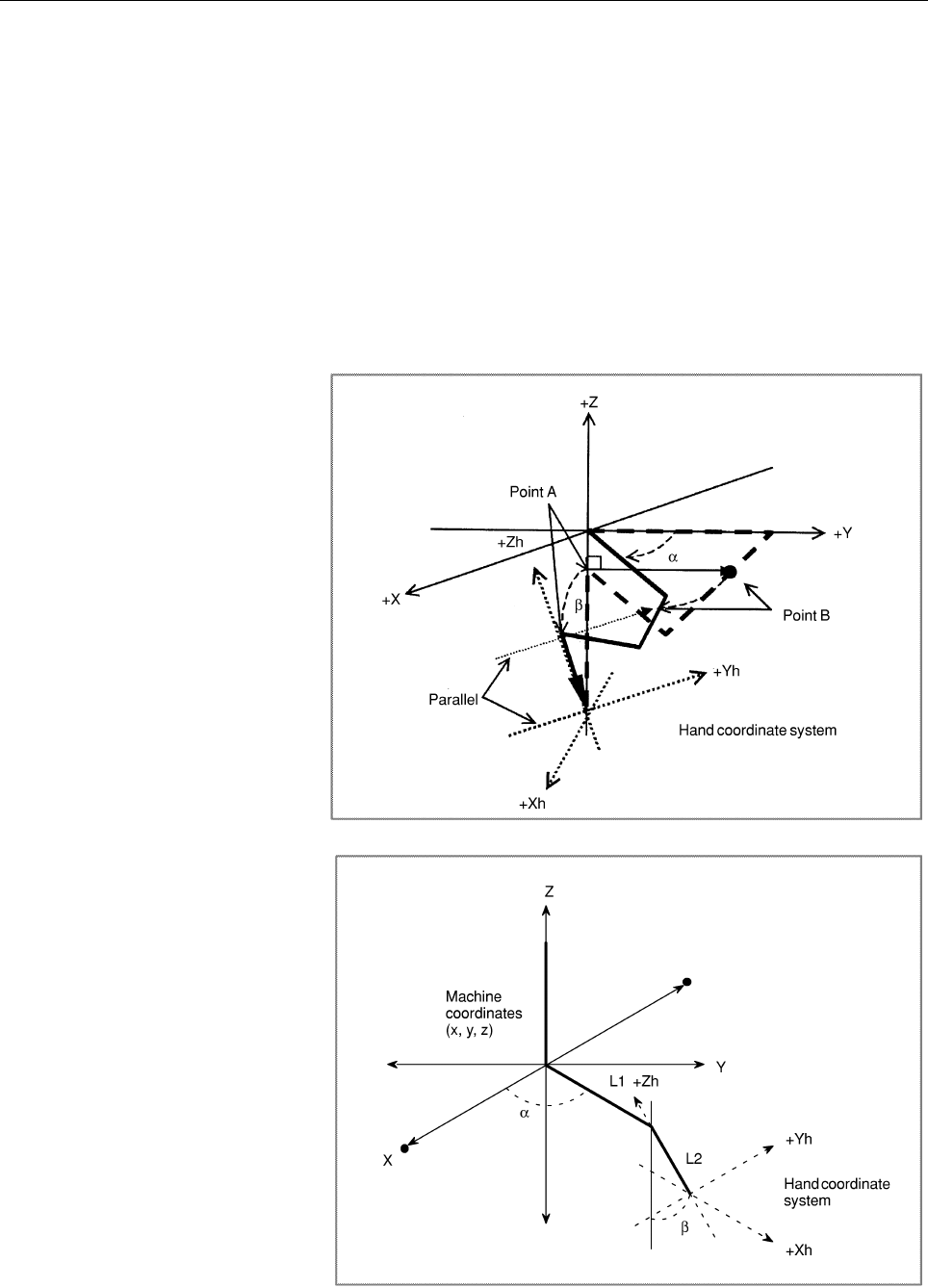

Fig. 7.7 (a) For attitude control A
Fig. 7.7 (b) For attitude control B
