Series 16i/160i-LB Connection manual (Function) Page 224

Connection manual (Function)
8.CONTROL FUNCTION LASER FUNCTION B-64663EN/01
- 210 -
Return from power control mode = (G63 P0) AND (Power control
mode signal off)
When G63 P0 specified in a machining program is valid and
when the power control mode signal is set to 0, power
control mode is cancelled. The system usually enters the
G63 P0 state immediately after the CNC is activated or
upon a reset. If G63 P1 is not programmed, G63 P0 need
not be specified. That is, if the transition is made by an
external signal, the return is made by turning off that
external signal. If the transition is made by G63 P1
specified in a machining program, the return is made by
G63 P0.

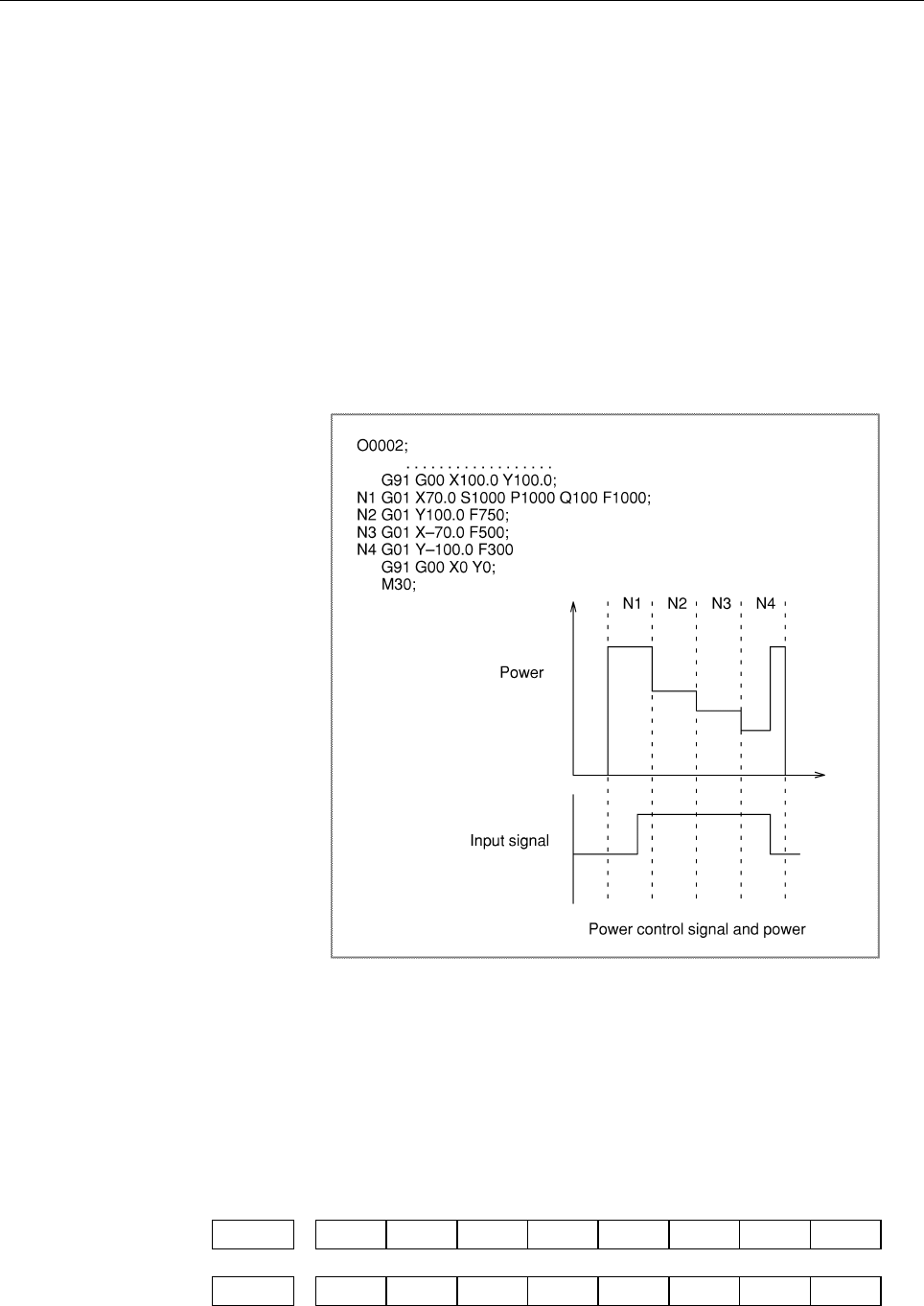

The figure below shows the variations in power when the power
control mode signal is used (when only the power is controlled).
- Power control mode in progress signal
PCMD<F224#1>
[Classification] Output signal
[Function] Notifies the PMC that the system has entered power control mode.
[Operation] This signal is output upon the completion of transition to power
control mode.
Signal address
#7 #6 #5 #4 #3 #2 #1 #0
G0224 PWCTL
#7 #6 #5 #4 #3 #2 #1 #0
F0224 PCMD
