8.CONTROL FUNCTION LASER FUNCTION B-64663EN/01
- 232 -
Assuming that the speed during travel is F, the acceleration assumed
when linear acceleration/deceleration is used is A, and the bell-shaped
acceleration/deceleration time constant is T, the time required for
acceleration/deceleration is:
Time required for acceleration/deceleration=F/A (linear type)
=F/A+T (bell-shaped type)

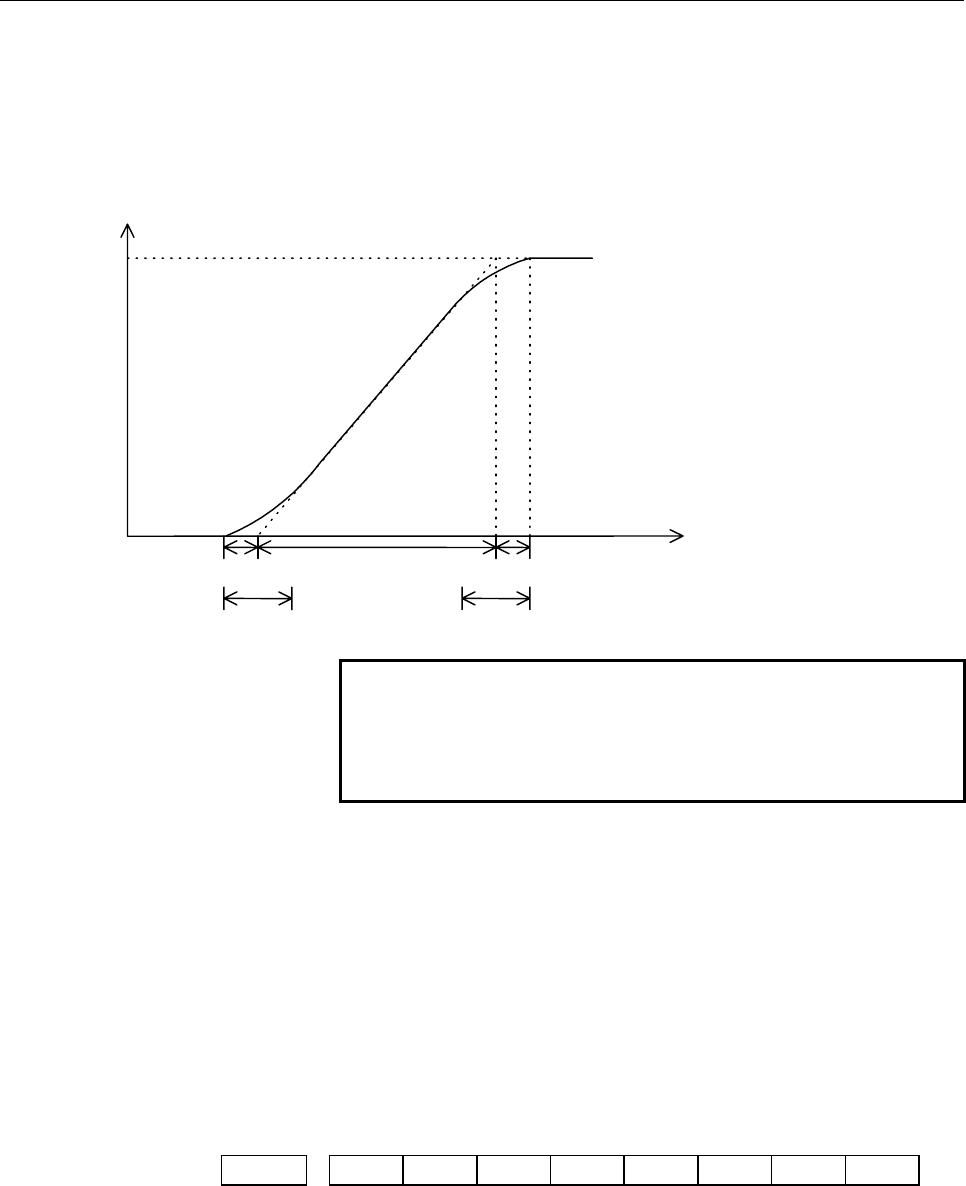

Speed
Time
T/2
F/A: Time required for acceleration
when linear acceleration is used
T: Time for the rounded portion of
the corner
F/A T/2
T T
F
NOTE
1 Rapid traverse block overlaps are disabled.
2 If bell-shaped acceleration/deceleration is to be
used, the rapid traverse bell-shaped
acceleration/deceleration option is required.
Signal
- AI contour control mode signal
AICC＜F062#0＞
[Classification] Output signal
[Function] Notifies that the system is in AI contour control mode.
[Output condition] The signal is set to "1" if:
- The system enters AI contour control mode.
The signal is set to "0" if:
- The system leaves AI contour control mode.
Signal address
#7 #6 #5 #4 #3 #2 #1 #0
F062 AICC
