8.CONTROL FUNCTION LASER FUNCTION B-64663EN/01

- 194 -

8.6 RETRY PROCESSING FUNCTION

Overview

A burning condition may occur during laser machining, disabling

further machining. In such a case, a normal operation may be able to

be resumed by returning the nozzle to a point where it was before the

burning condition occurred and by retrying processing. This is done

using the retry processing function. This function operates as follows:

When a machining failure is detected, the nozzle moves back along

the machining path to a specified point with the beam turned off.

When it gets to the specified point, it enters a machining state and

goes forward along the same machining path toward the point where it

started going backward (retrace start point). When it gets to the retrace

start point, the nozzle resumes machining as directed by the program.

This function cannot be used with the three-dimensional machining

function. Because the retry processing function is based on the

FS16-M retrace function, it is necessary to specify the retrace function

and conform to the retrace function specification.

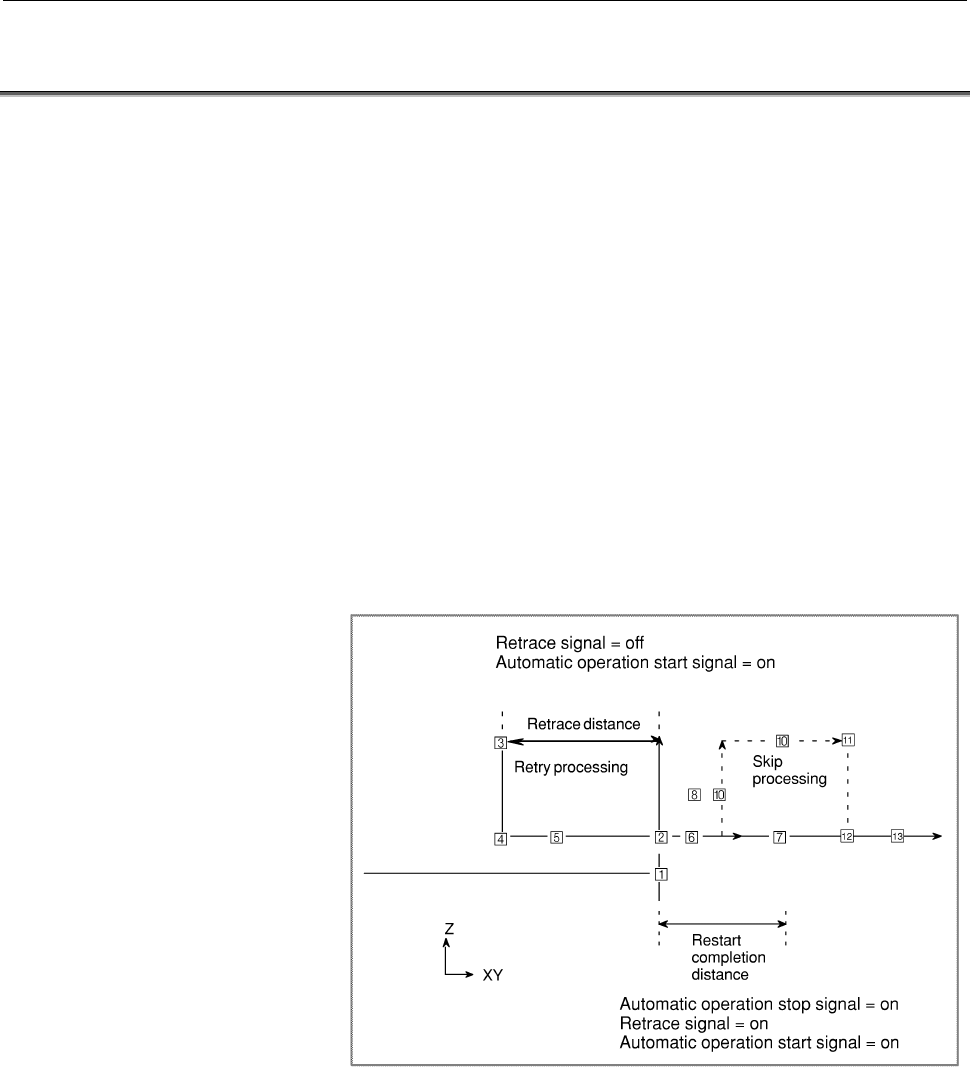

Operation

The retry processing function operates as follows:

[1] Sets the retry processing mode signal (RVSLSR) to "1", and

resets the automatic operation stop signal (*SP) to "0" according

to the machining failure detection signal during program

execution. After that, specifies as follows:

- Movement = discontinued

- Beam = off

- Assist gas = off

- Tracing control = off (*1)
