Series 16i/160i-LB Connection manual (Function) Page 78

Connection manual (Function)
4.ASSIST GAS LASER FUNCTION B-64663EN/01
- 64 -

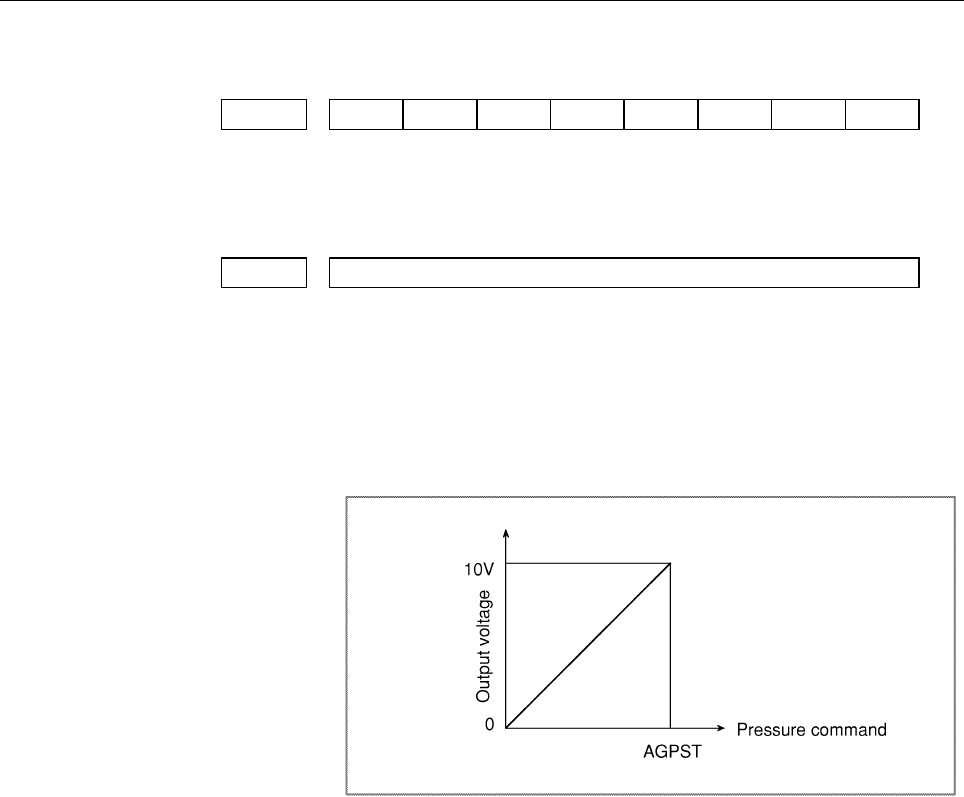

Parameter
#7 #6 #5 #4 #3 #2 #1 #0
15011 AOC
[Data type] Bit
AOC The analog output of the assist gas pressure command is output from:
0: The connector (JA40) on the main board.
1: The connector (JA6) on the analog option board.
15132 Maximum assist gas pressure (AGPST)
[Data type] Word
[Unit of data] 0.1kg/cm
2
or 0.01MPa
[Valid data range] 0 to 255
[Standard setting value] 99
Specify a gas pressure (kg/cm
2
or MPa) that corresponds to 10 V
when converted to assist gas pressure analog output.
Limitations
- If no analog option board is not installed
If no analog option board is installed although the connector (JA6) on
the analog option board is selected, the assist gas pressure command is
not output.
- If using actual-speed analog output B
To use actual-speed analog output B, be sure to set bit 4 of parameter
No. 15011 to 1. Otherwise, neither will be output properly.
