Series 16i/160i-LB Connection manual (Function) Page 92

Connection manual (Function)
5.LASER OUTPUT CONTROL LASER FUNCTION B-64663EN/01
- 78 -
Signal
- Piercing time reduction signal
PTS<G221#2>
[Classification] Input signal
[Function] This external signal can abort the piercing specified by G24 and can
reduce the piercing time.
[Operation] When the C-series or Y-series oscillator is used, an external signal can
be used to change the piercing time specified with G24.
When the CNC executes G24, it stores the specified piercing time and
presets the timer to the piercing time. While the timer is counting
down, piercing is executed.

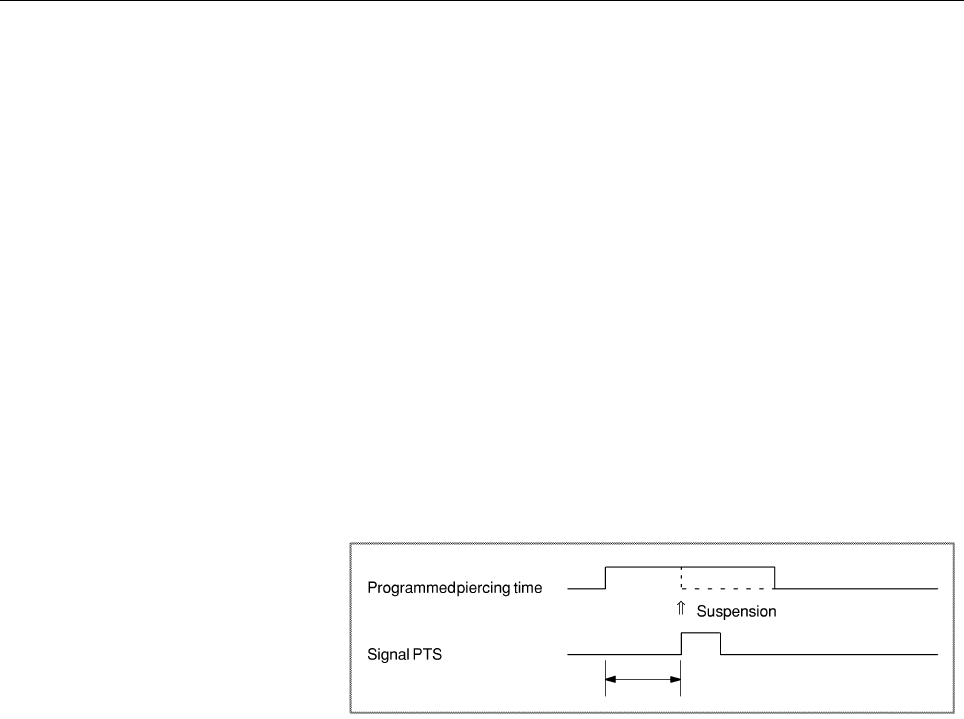

When the piercing time reduction signal (PTS) is set to 1 during
piercing, the timer set for the piercing time stops counting down at the
rising edge of the signal and piercing stops.
The time from when piercing starts until it stops is measured. This
value can replace the piercing time.
Bit 1 (HPT) of parameter No.15003 specifies whether this value is
used to replace the piercing time.
- Piercing time extension signal
PTE<G221#3>
[Classification] Input signal
[Function] This external signal can abort the piercing specified by G24 and can
extend the piercing time.
[Operation] When the C-series or Y-series oscillator is used, an external signal can
be used to change the piercing time specified with G24.
When the CNC executes G24, it stores the specified piercing time and
presets the timer to the piercing time. While the timer is counting
down, piercing is executed.
When the piercing time extension signal (PTE) is set to 1 during
piercing, piercing does not stop when counting-down ends. Instead,
piercing continues until the piercing time extension signal (PTE) is set
to 0.
The time from when piercing starts until it ends is measured. This
value can replace the piercing time.
Bit 1 (HPT) of parameter No.15003 specifies whether this value is
used to replace the piercing time.
