B-64663EN/01 LASER FUNCTION 8.CONTROL FUNCTION
- 191 -
8.5 START-UP FUNCTION
Overview
When a shift occurs from the piercing command G24 to a cutting
command block, stable machining is assured by performing the same
operation as the start-up function (for a corner subjected to edge
machining) through the specified return distance.
Conditions for use
The following conditions apply to use of this function.
(1) The machining condition setting function (option) and edge
machining function are required.
(2) The automatic corner override function cannot be used with this
function.
(3) Automatic corner deceleration cannot be used with this function.
Operation
When the piercing command G24 ends, the next block (cutting
command) is executed. The return data for edge cutting becomes
effective for the start-up of this block.

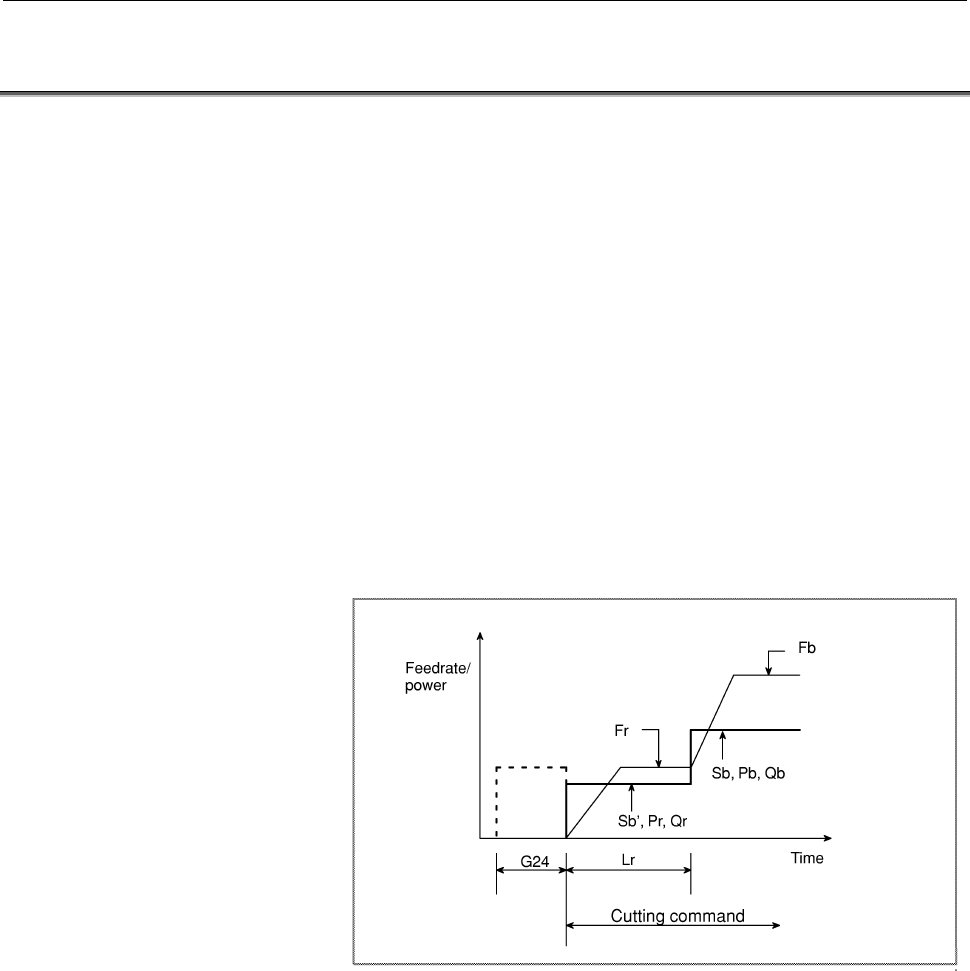

Lr : Return distance
Fr : Return speed
Pr : Return frequency
Qr : Return duty cycle
Fb : Cutting command feedrate
Sb : Cutting command output peak value
Pb : Cutting command pulse frequency
Qb : Cutting command pulse duty cycle
1 When the piercing command G24 ends, movement specified by
the cutting command begins.
