B-64663EN/01 LASER FUNCTION 4.ASSIST GAS
- 57 -
Specifying a flow pattern
When bit 0 (AGC) of parameter No.15004 is set to 0, a flow pattern
can be specified.
G32, for which a non-zero value has been specified for address P,
opens the shutter and outputs an assist gas select signal (AG1, AG2, or
AG3) and assist gas pressure analog signal.
G32, for which 0 has been specified for address P, closes the shutter,
selects none of the assist gas select signals (AG1, AG2, AG3), and
sets the assist gas pressure analog signal to 0.
G32P - (Q - );
Pattern: Specify a flow pattern number.
Gas type: Specify an assist gas type.

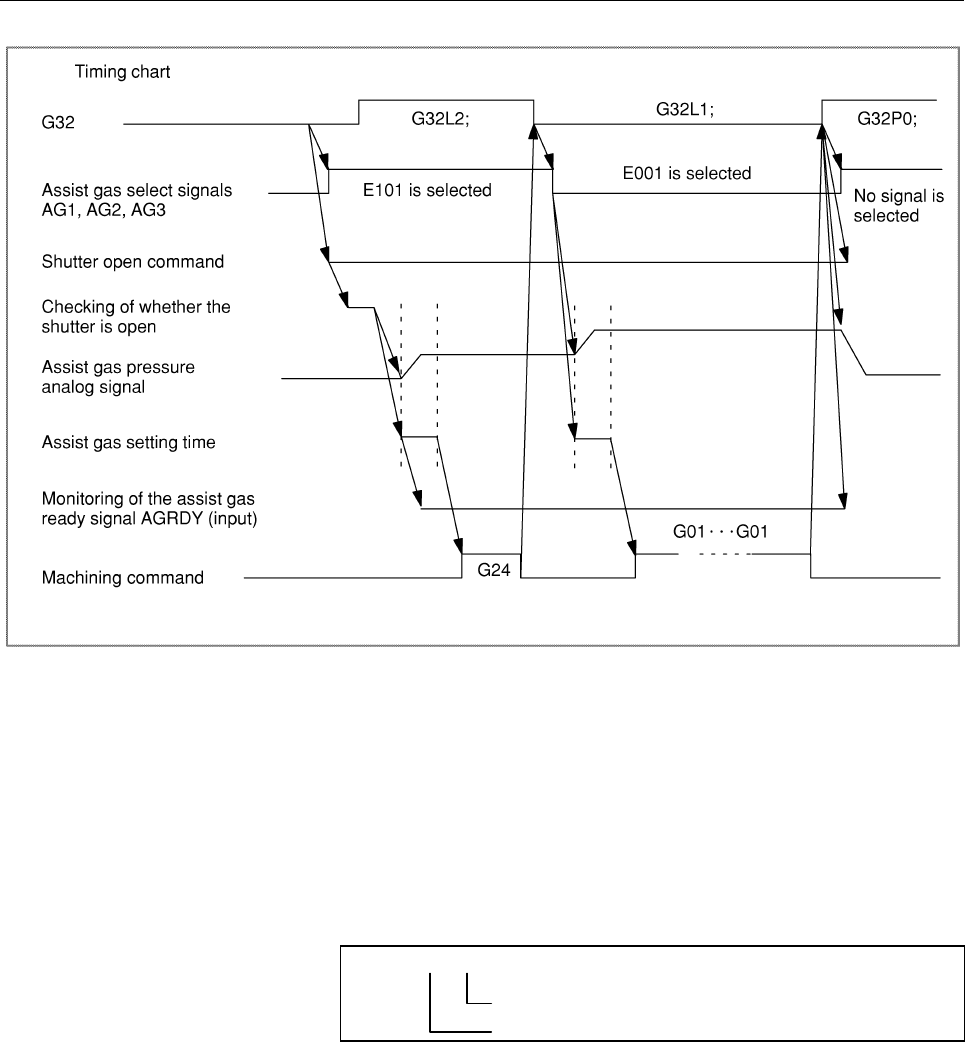

When the following sample program is executed, G32 causes the
operation shown in the timing diagram below:
Sample program
G32P1Q-; Shutter open, Assist gas on command
G01X-Y-F-S-;
G01X-Y-;
G01X-Y-;
G32P0; Shutter close, Assist gas off command
