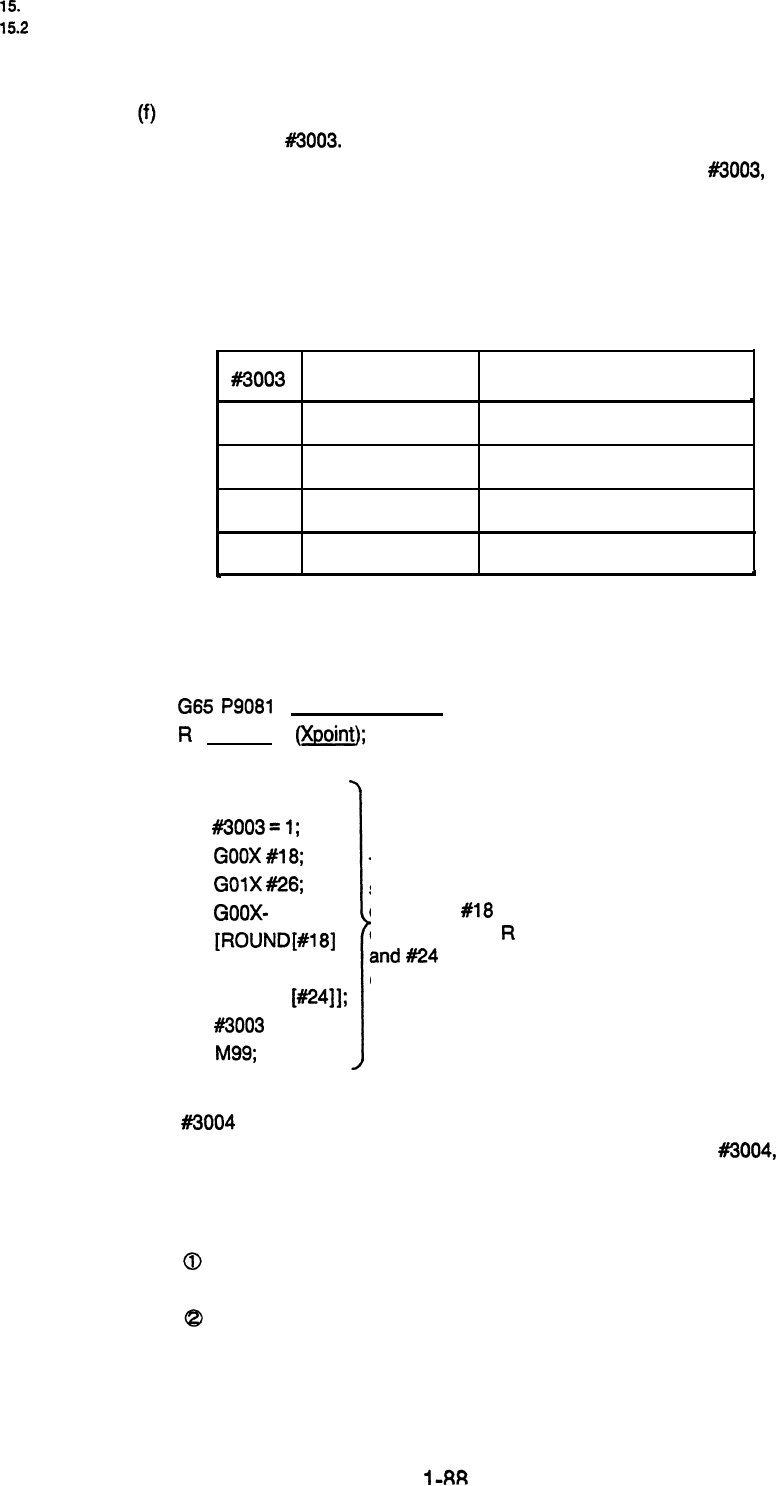

15.

CUSTOM MACRO

15.2

Creation of Custom Macro Body

The suppression of the single block stop and the wait for the auxiliary function

end signal in

#3003.

When the following values are assigned to the system variable

#3003,

the single

block stop function is suppressed and execution advances from one

block to

the next without awaiting the end signal (FIN) of auxiliary functions (S, T, and

M). When the end signal is not awaited, the distribution end signal (DEN) is not

transmitted. Be careful not to

specify a subsequent auxiliary function without

awaiting the end signal.

#3003

Single block stop

Auxiliary function end signal

Not suppressed

Awaited

Suppressed

Awaited

Not suppressed

Not awaited

Suppressed

Not awaited

(Example) Drill cycle

(For incremental programming) (Equivalent to G81)

Macro call command

G65

P9081

L (Repetition time)

(R point) X

(Xpointj;

The custom macro body is specified as follows:

09081;

#3003=1;

GOOX

#18;

GOlX

#26;

The single block

stop is not

GOOX-

executed. 448

C~~~W#W

corresponds to

and

#24

ROUND [#24]];

corresponds to X.

#3003

= 0;

M99;

(g) Feed hold, feed rate override, and exact

#3004

stop check suppression specified in

When the following values are assigned to the system variable

#3004,

feed hold

and feed rate override are suppressed for subsequent blocks and the exact stop

check is not performed. Pressing the feed hold button during execution of a

block for which feed hold has been suppressed:

Executes feed hold if the function of single block stop is disabled when the

button is kept pushed.

Lights the feed hold lamp, and does not execute feed hold at this point, but

at the end of the first block outside the suppression range, (when the button

is pushed and released)
