7. COORDINATE SYSTEM

7.2

Programming of Work Coordinate System (Gg2)

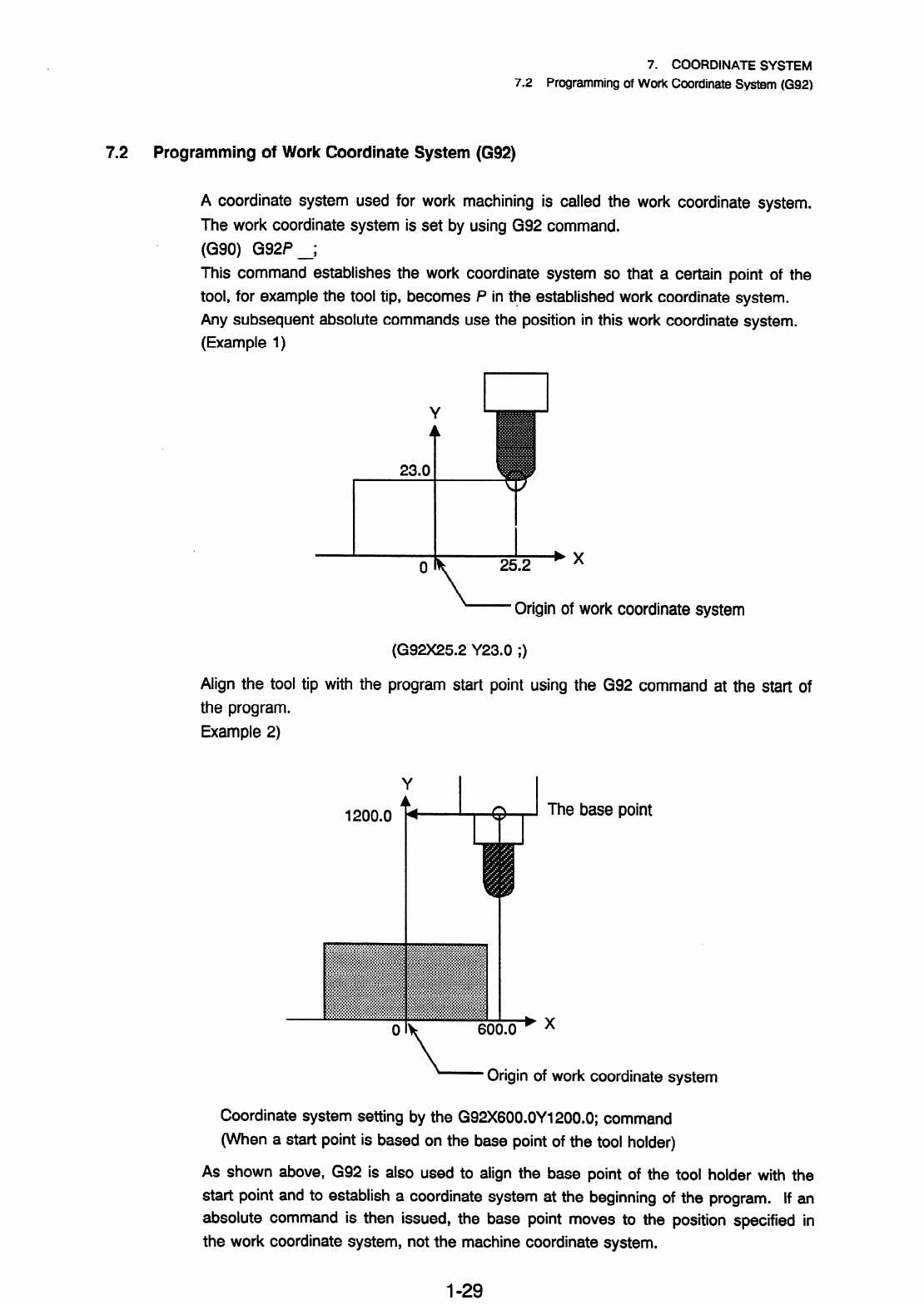

7.2 Programming of Work Coordinate System (G92)

A coordinate system used for work machining is called the work coordinate system.

The work coordinate system is set by using G92 command.

(G90) G92P ;

This commandestablishes the work coordinate system so that a certain point of the

tool, for example the tool tip, becomes P in the established work coordinate system.

Any subsequent absolute commands use the position in this work coordinate system.

(Example 1)

Align the tool tip with the

the program.

Example 2)

Origin of work coordinate system

(G92X25.2 Y23.0 ;)

program start point using the G92 command at the start of

The base point

Origin of work coordinate system

Coordinate system setting by the G92X600.OY1200.0; command

(When a start point is based on the base point of the tool holder)

As shown above, G92 is also used to align the base point of the tool holder with the

start point and to establish a coordinate system at the beginning of the program.

If an

absolute command is then issued, the base point moves to the position specified in

the work coordinate system, not the machine coordinate system.

1-29
